750w dc Motor Speed Controller
US$ 15 - 50
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
topband
Model Number:
400w driver
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
topband
Model Number
400w driver
Motor Type
DC Motor
750w dc motor speed controller
1. we can accept OEM and ODM
2. long life, carbon brush
3. high reliability
4. CE,ROHS
750w dc motor speed controller technical data:
| ELECTRICAL DATAS | 400w | 750w |
| OPERATING VOLTAGE | 180~250V/AC | 180~250V/AC |
| RATED VOLTAGE | 220V | 220V |
| PEAK CURRENT | 5A | 10A |
| RATED CONTINUOUS CURRENT | 2A | 4.2A |
| STEADY PRECISION OF SPEED ADJUST | ±2% | ±2% |
| HALL SENSOR | 120°,3phade,+5V | 120°,3phade,+5V |
| WORKING TEMPERATURE RANGE | -20~50℃ | -20~50℃ |
| OPERATION TEMPERATURE RANGE | -20~50℃ | -20~50℃ |
| STORAGE TEMPERATURE RANGE | -40~85℃ | -40~85℃ |
| SPEED RANGE | 0~9999RPM | 0~9999RPM |
| CONTROL METHOD | BLDC | BLDC |
| SWITCHING FREQUENCY | 20KHz | 20KHz |
| DIMENSIONS(L*W*H) | 140*117*65mm | 140*117*65mm |
| WEIGHT | 800G | 1200G |

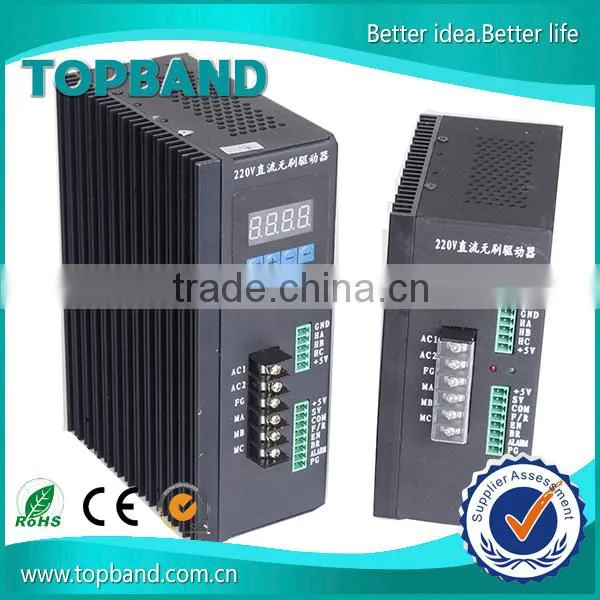

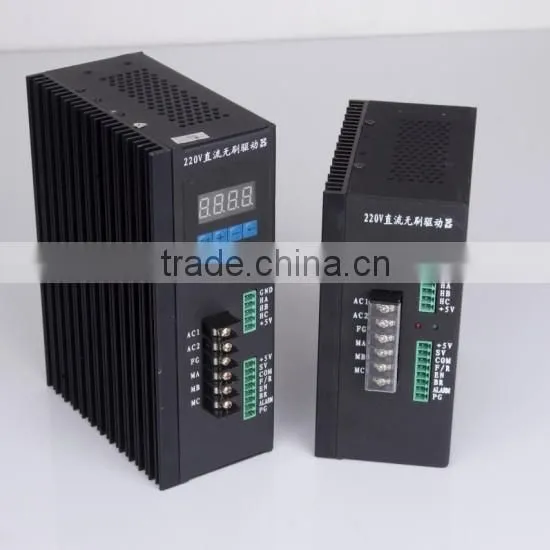

750w dc motor speed controller pictures:

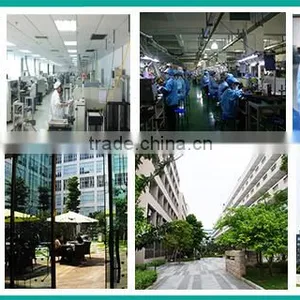

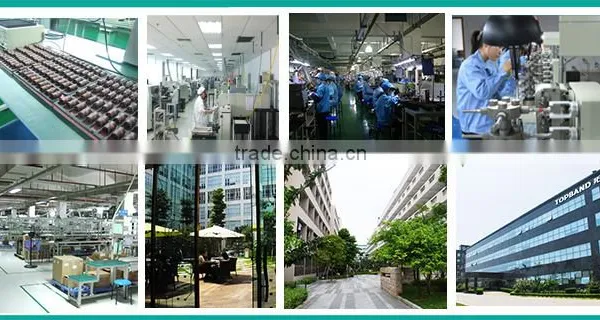

Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,Which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor,brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.

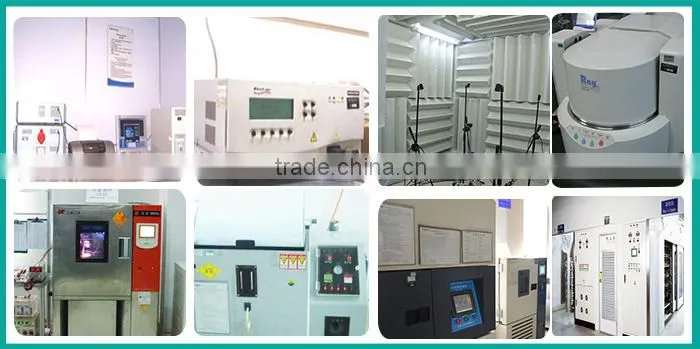

R&D Testing Equipments
Certification Show
Packing&Shipping
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
1996
Factory Size
50,000-100,000 square meters
Total Employees
201 - 300 People
