Low cost brushless motor controller 36v 250w

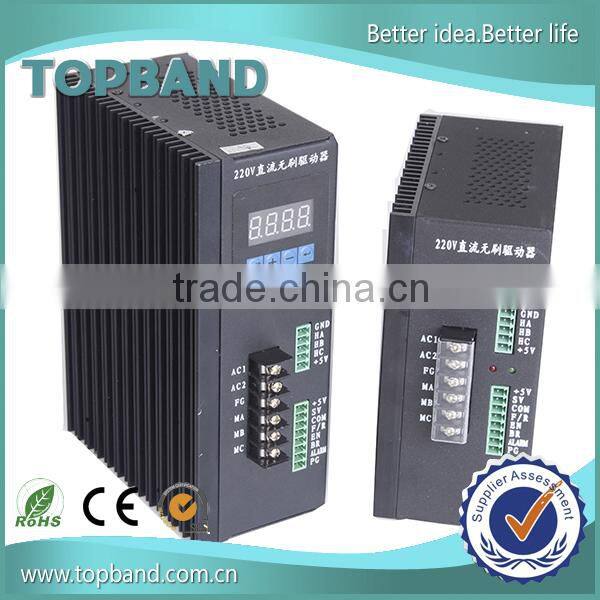

controller picture
controller data
| Electrical data | |
| Operating voltage | 20~32V/DC |
| Rated voltage | 30V/DC |
| Peak current | 15A |
| Rated continuous current | 2A |
| Steady precision of speed adjust | 2% |
| Hall sensor | 120°,3phade,5V |
| Direction of rotation | YES |
| Start & stop | YES |
| Brake | YES |
| Speed control | YES |
| Current protect | YES |
| Operating temperature range | 20~50℃ |
| Storage temperature range | 40~85℃ |
| Dimension(L*W*H) | 46*30*15mm |
| Weight | 30g |
Application
Description and Advantage
* Standard components,flexible combination, which has widely applications
* outpur power is from 1.0 to 1000 watts
* Low starting voltage,low rotor intertia,low noise,long lifetime
* Custom systems available from design to production
* More competitive price compared with same level products overseas
Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor, brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.
