Help Center7400rpm Cheap Mini dc Motor for Drilling Machine
Related Products
-
12000rpm 250w Small Low Rpm Brushless dc Electric Motor 48vUS$ 1 - 100MOQ: 1 Piece -
12v dc Motor for Vacuum CleanerUS$ 5 - 10MOQ: 1000 Pieces
-
7.4v dc Motor for DroneUS$ 5 - 10MOQ: 1000 Pieces
-
Customized 49mm Electric Motors for Electric BicycleUS$ 1 - 100MOQ: 10 Pieces
-
Lawn Mower 1000W Outrunner Brushless Boat MotorUS$ 50 - 100MOQ: 100 Pieces
7400rpm cheap mini dc motor for electric golf caddy

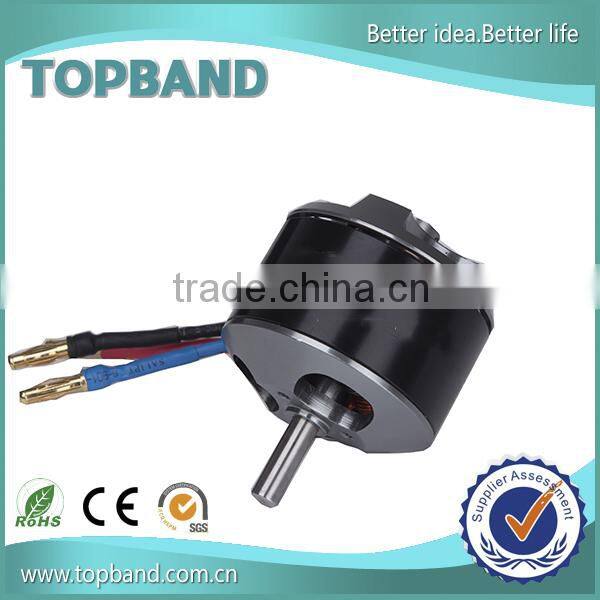

dc motor for electric golf caddy picture
dc motor for electric golf caddy data
| AE4920 | UNIT | ’001 |
| Rated voltage | V/DC | 40 |
| Rated speed | RPM | 7400 |
| No load speed | RPM | 8100 |
| No load current | A | 1 |
| Rated current | A | 11 |
| Rated torque | N.M | 0.5 |
| Max efficiency | % | 89 |
| Resistance phase to phase | OHM | 0.12 |
| Torque constant | N.m/A | 0.046 |
| Speed constant | rpm/V | 200 |
| Rotor inertia | Kg | 0.59 |

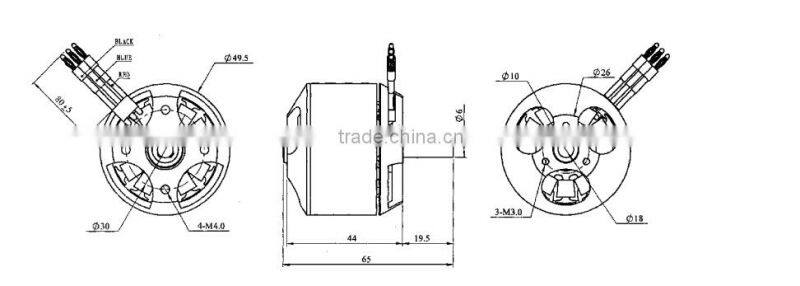

motor drawings
Application Show
Description and Advantage
* High efficiency and high torque in a small diameter
* Sizes ranges from 16mm to 86mm diameter
* Standard components,flexible combination, which has widely applications
* outpur power is from 1.0 to 1000 watts
* Low starting voltage,low rotor intertia,low noise,long lifetime
* Custom systems available from design to production
* More competitive price compared with same level products overseas
Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,Which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor,brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.
