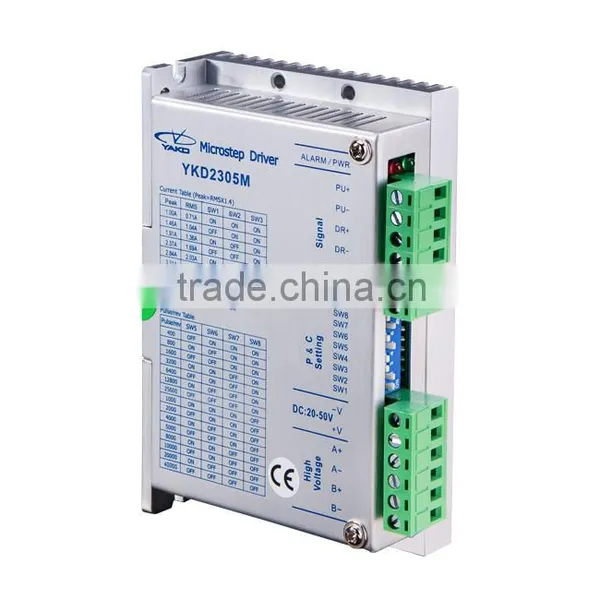

YAKO brand DSP stepper motor drive YKD2305M
Features:
1. New 32 bit DSP technology, high performance, good stability, low noise and low vibration;

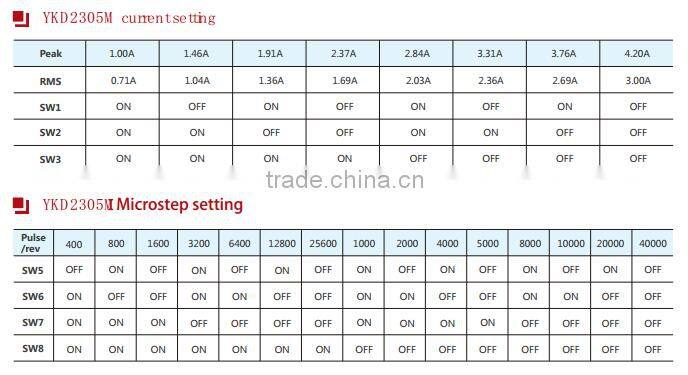

2. 16 classes of microstep, max 200 microstep;
3. Smooth and precise current control, low motor heat;
4. Max pulse response frequency is 200 KHz;
5. If the pause time of stepper pulse is over 200ms, the motor current will be half;
6. Perfect stability under low frequency and small subdivision;
7. Photoelectric isolation differential signal input, strong anti-interference ability;
8. The current under 3.0A can be adjusted;
9. Voltage: DC20-50V;
10. Over-voltage/current, under-voltage protection;

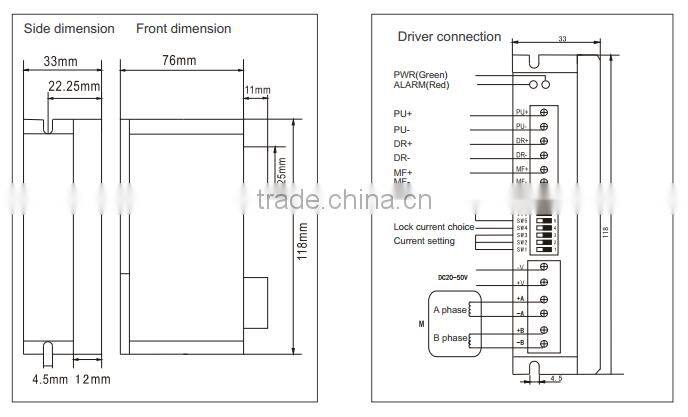

Connection:
Applications:
Laser cutting machine, laser welding machine, laser marking machine, lock screw machine, medical instrument, robot, dispensing machine, electronic equipment, engraving machine.

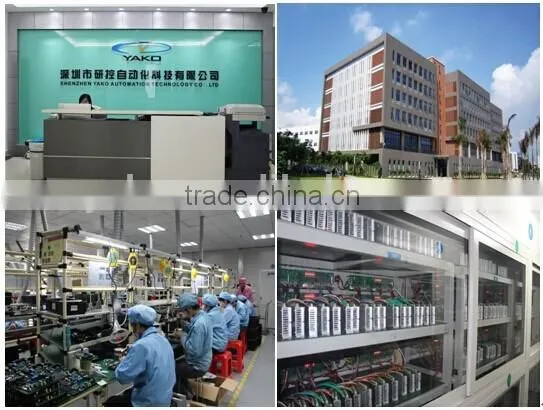

Company profile:
YAKO was found at 2006, specialized in R&D and producing stepper drives& motors, servo drives& motors and motion controller/cards. All YAKO products have CE certification, and we can apply other certifications according to your requirements. OEM & ODM are available.
