Help CenterYKD3505M 3 Phase DSP Stepper Motor Driver
Related Products
-
YKD2304M - DSP(Digital Signal Processing) Stepper Motor DrivesUS$ 10 - 400MOQ: 1 Piece -
Digital Signal Processing Stepper Motor DrivesUS$ 10 - 400MOQ: 5 Pieces
-
YKD2408M Digital Signal Processing Stepper Motor DriveNegotiableMOQ: 5 Pieces
-
YKD2405M -2 Phase DSP Stepper Motor DriveUS$ 10 - 400MOQ: 1 Piece
-
DC20-50V,Low Noise, High Stability,Digital Signal Processing Stepper Motor DrivesNegotiableMOQ: 5 Pieces
Feature
1. Low noise ,high performance, superior Stability under low mircrostep.
2. Provides 8 kinds of microstep selection.Max 50 microstep.
3. Smooth and precise current control, low motor heat.
4. If the pause time of stepper pulse over 200ms,the motor current will be half.
5. Photoelectric isolation differential signal input, strong anti-interference ability.
6. The current under 5.7A can be adjusted.
7. Max pulse response frequency is 200KHz.
8. Overvoltage, under voltage and over current protection.
Description:
YKD3505M is a high performance 3 phase stepper driver which is based on new 32 bit DSP technology, driver voltage DC 20V-50V.
It’s suitable for 42mm-86mm flange size of 3 phase stepper motor whose current should be under 5.7A.
The driver applies the control technology which is similar as servo. Unique circuit design, excellent software algorithms make motor work smoothly under low

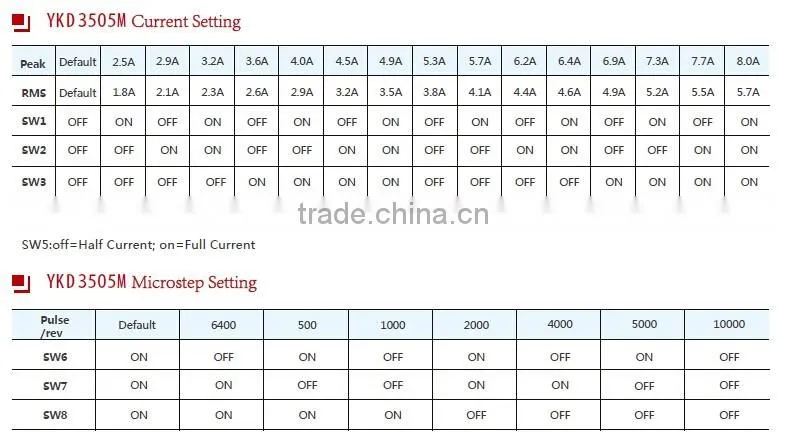

micropstep and super low noise and vibrations, The smooth and precise current control technology reduced motor heat. Externally set 8-class of microstep, the
max is 50 microstep. Photoelectrical isolation differential signal input, strong anti-interference ability; over voltage, under voltage, over current protection function.
Applications:
Mainly applied in laser cutting machine, laser welding machine, laser marking machine, lock screw machine, medical instrument,robot, dispensing machine, electronic equipment, engraving machine.
