Specifications
Widely applicable to strand aluminum,aluminum alloy,copper, copper alloy conductors and steel atranded wire,and steel wire ropeDongjiagang was founded in March 2005, is a national hi-tech enterprise specialized in the manufacture of wire and cable machineryand equipment. We make more than 90 kinds of products, which are well sold to south Asia, the ,middle east, Europe and America.
Certificated in the international quality management system ISO 9001:2008 and operating under the Enterprise Resource Planning (ERP) system, Dongjiagang always adheres to its core concept of value, i.e. Honesty and Credibility, Respect for individuals, Win-win success, and Maximizing Customer's Satisfication while upholding its quality policy as Honest Operations, Pragmatic Development, Manufacturing Competitive Products, and making Technological Innovations. Dongjiagang is making every effort to make constant improvement in research and innovation and the quality of the products

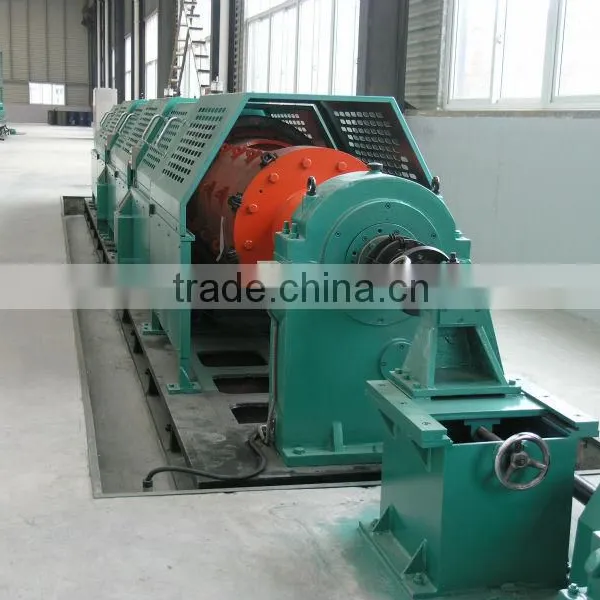

- Under-rollers are used to support the roatating tube.
- Under-rollers are made of aluminum alloy that constitutes a quality combination with the ductile iron rail on the tube, which results in good lubrication,better weariability, better heat radiation, longger service life; it is easy to adjust, maintain and repair.
- Stranding tube is welded as one whole oiece subject to stress relief, so it is good in regidity and co-axiality that results in smooth performance.
- Base of machine is welded and subject to tempering treatment.
- Stranding cage is supported with bearings on the headstock and the tailstock as auxiliary support for higher running precision, so the main machine runs smoothly at high speed but lower noise.
- Automatic control is available as photoelectric control and electric control are integrated with mechanical function. Fully digital DC speed regulator is used in the control system with founctions such as alarming for breakdown and automatic stop.
Main components
Pay-off stand, headstock, tube, bobbin holder, under-roller, die holder, haul-off capstan, brake, take-up & traversing stand, safety hood.
Main technical data
Model |
Individual wire diameter (mm) |
Stranding diameter (mm) |
Main machine rotating speed (max) (r/min) |
Delivery speed (max) (m/min) |
Technical features |
JG400/6 |
Cu/steel: 1~2.5 |
12 |
600 |
90 |
|
Al: 1~4 | |||||
JG500/6 |
Cu/steel: 1.3~3.5 |
15 |
510 |
90 |
|
Al: 1.7~4.6 | |||||
JG500/12 |
Cu/steel: 1.3~3.5 |
25 |
350 |
70 |
Flexible transmission |
Al: 1.7~4.6 | |||||
JG500/12+1000/1 |
Cu/steel: 1.3~3.5 |
25 |
300 |
60 |
Flexible transmission |
Al: 2.0~5.0 | |||||
JG630/6 |
Cu: 2~5 |
15 |
300 |
70 |
|
Al: 2.5~5 | |||||
Steel: 1.8~4.5 |
standard export packaging or as customer's requipments
