8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing

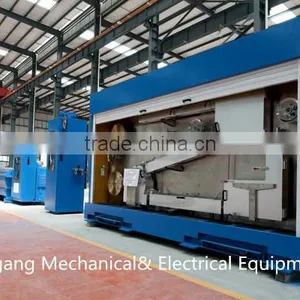

8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing thumbnail-1
8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing thumbnail-2
8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing thumbnail-3
8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing thumbnail-4
8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing thumbnail-5
8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing thumbnail-6
8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing photo-1

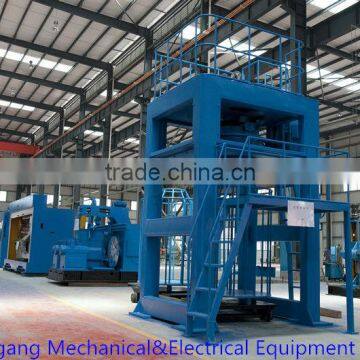

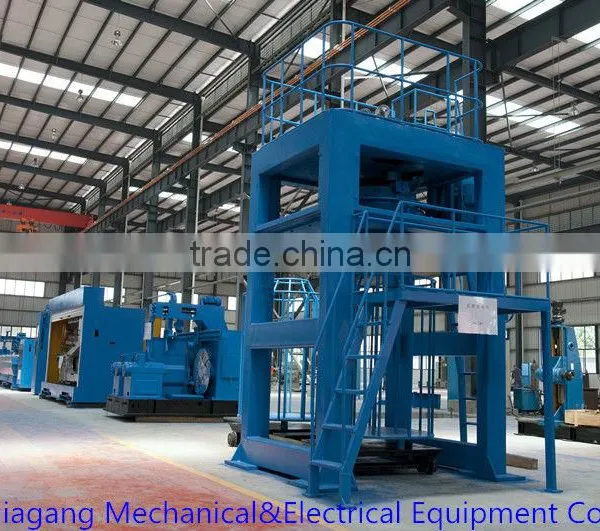

8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing photo-2

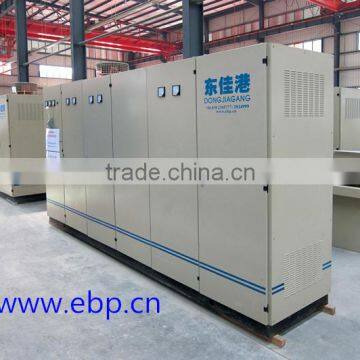

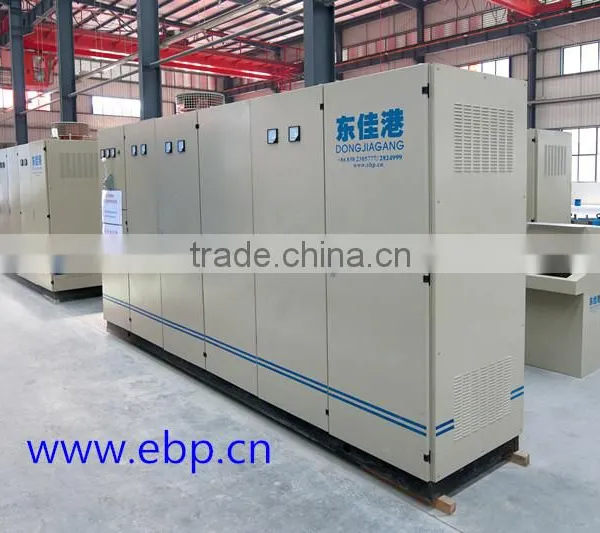

8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing photo-3

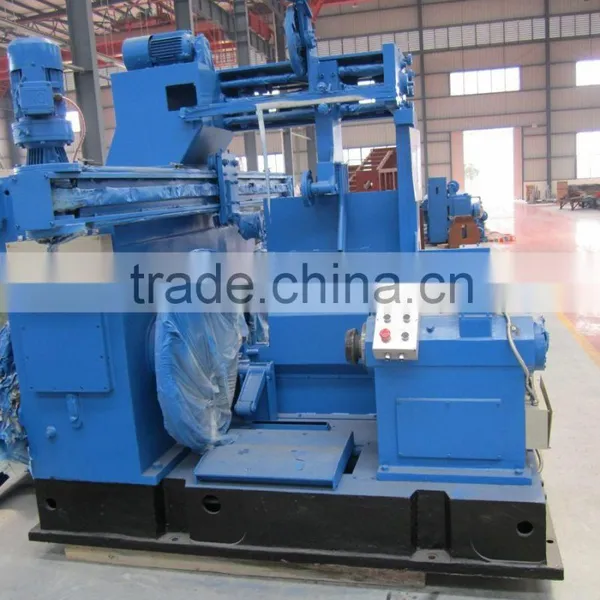

8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing photo-4
8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing photo-5

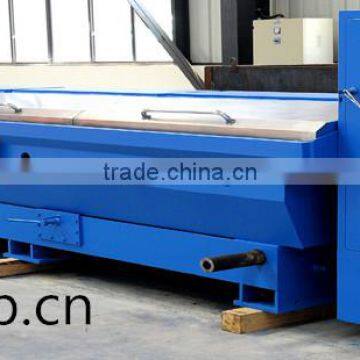

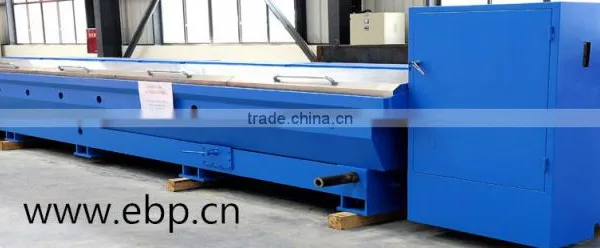

8MM Copper Rod Breakdown Machine or Wire Drawing Machine With Annealing photo-6
US$ 150,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
ebp
Model Number:
LHD450
Contact Supplier Request Quote Chat Now
Deyang Dongjiagang Electric Wire And Cable Machinery Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Luzhou chongqing shanghai port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name ebp
Model Number LHD450
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.draw 8mm into 1.3mm to 4.5mm
2.high efficiency
3.automatically

1 Inlet diameter ø8 mm

2 Outlet diameter ø1.30~ø4.5mm

3 Max. delivery speed 25m/sec

4 Bobbin-change speed 6~12m/sec.

5 Max. number of drawing pass 13

6 Diameter of final capstan 450mm

7 Drawing capstan speed ratio 1.2857~1.15; for die 1~8, 1.3; for die 12~13, 1.05~1.26

8 Take-up bobbin size PND500/630

9 barrel diameter

10 Max. traverse width 460mm

11 Max. traverse pitch

12 Noise from machine ≤85dB

13 Consumption of compressed air 6m3/hr., pressure at 0.5Mpa

14 Capacity of drawing oil tank 20 m3 (to be prepared by user)

15 Main motor (DC) Z4-280-42, 250kw, DC, 1000 rpm

16 Drive motor for final capstan (DC) Z4-200-31, 90kw, DC, 1500 rpm

17 Take-up motor(DC) 2 sets Z4-132-3, 30kw, 3000rpm

18 Total installed power about 860kw

19 Overall dimension 23750×5000×4510mm

20 Total weight 39.5 tons
