Specifications
wide application, high rigidity,good integrity,small inertia of rotation,high running speed,totally automatic controlDongjiagang was founded in March 2005, is a national hi-tech enterprise specialized in the manufacture of wire and cable machineryand equipment. We make more than 90 kinds of products, which are well sold to south Asia, the ,middle east, Europe and America.
Certificated in the international quality management system ISO 9001:2008 and operating under the Enterprise Resource Planning (ERP) system, Dongjiagang always adheres to its core concept of value, i.e. Honesty and Credibility, Respect for individuals, Win-win success, and Maximizing Customer's Satisfication while upholding its quality policy as Honest Operations, Pragmatic Development, Manufacturing Competitive Products, and making Technological Innovations. Dongjiagang is making every effort to make constant improvement in research and innovation and the quality of the products.
- Applicable to strand copper conductor, aluminum conductor, and aluminum conductor stell reinforced (ACSR) without backtwist, as well as insulated wire and strand. Fitted with a compactor, it is also applicable to strand round-shaped, semi-round shaped, and sector-shaped copper conductor or aluminum conductor.

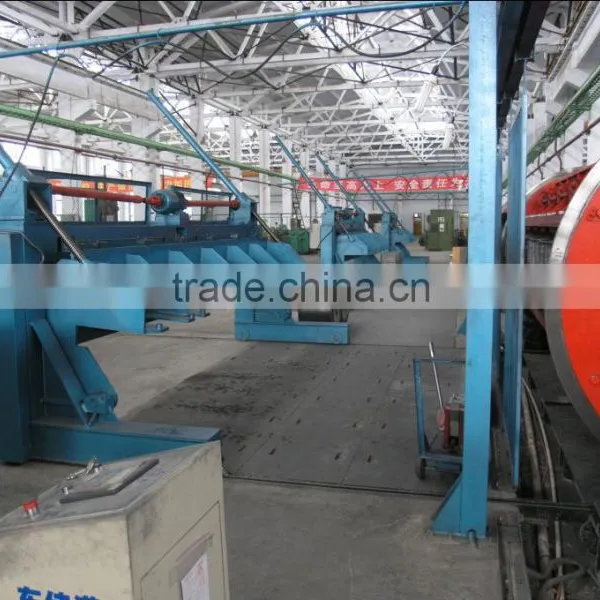

- Applicable to PND 500, PND 630, PND 710 bobbins,provided with hanger and electric hoist to load and unload bobbin individually or side-bottom batch loader to load and unload the bobbins altogether.
- Bobbins are loaded separately in four equal positions on the circumference of the stranding cage to make it easy to load and unload. The machine features in high rigidity, good integrity, and small inertial of rotation, and high running speed.

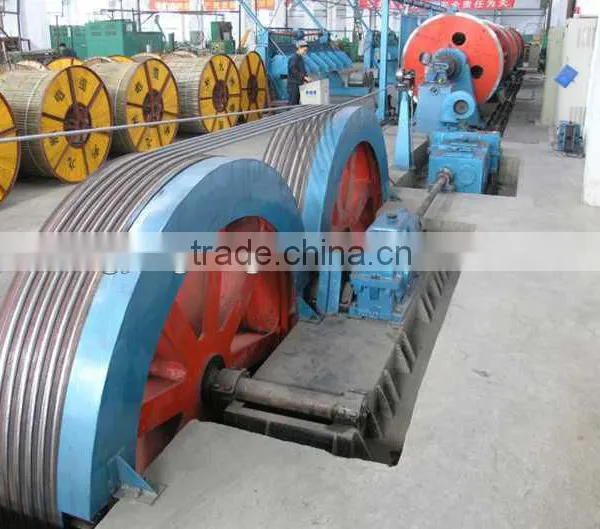

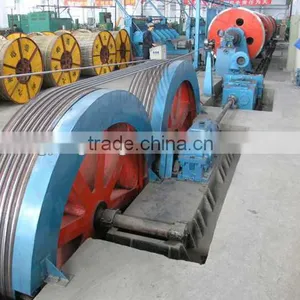

- A 36-stage gearbox is adopted with motorized twin haul-off capstans. Conductor is separated naturally on the divider to prevent scratching to the conductor during stranding. Pay-off tension is controlled by machanical tensioner for the bobbin in the cage.
- Breakage stopper is avaible to make emergency stop to the machine automatically in case a conduactor is cut off or broken.
- Fully digital DC speed regulator and PLC are used in the control system of the production line, which is also equipped with measurement, indication and fault display system, and human-machine interface to shaow running condition of the machine and to facilitate human-machine dialogue.
Main techinical data
JLK 500 series
Model |
Individual wire diameter (mm) |
Stranding diameter Max. (mm) |
Cage rotating speed Max.(r/min) |
Stranding pitch (mm) |
JLK500/6+12 |
Cu: 1.5~4.5 Al: 1.8~5 |
25 |
190~68 |
35~761 |
JLK500/6+12+18 |
35 |
190~58 |
35~892 |
|
JLK500/12+18+24 |
45 |
162~49 |
41~1052 |
JLK 630 series
Model |
Individual wire diameter (mm) |
Stranding diameter (mm) |
Cage rotating speed (r/min) |
Stranding pitch (mm) |
JLK630/6+12+18+24 |
Cu: 1.5~4.5 Al: 1.8~5 |
45 |
207~54 |
38~1104 |
JLK630/12+18+24 |
45 |
176~54 |
45~1104 |
|
JLK630Z/6+12+18 |
Cu: 1.5~4.5 Al: 1.8~5 |
35 |
207~54 |
38~930 |
JLK630Z/6+12+18+24 |
45 |
207~54 |
38~1104 |
|
JLK630Z/6+12+18+24+30 |
55 |
207~45 |
38~1234 |
|
JLK630Z/12+18+24 |
45 |
176~54 |
45~1104 |
|
JLK630Z/12+18+24+30 |
55 |
176~45 |
45~1324 |
JKL 710 series
Model |
Individual wire diameter (mm) |
Stranding diameter (mm) |
Cage rotating speed (r/min) |
Stranding pitch (mm) |
JLK710/6+12+18 |
Al: 1.8~5 Al shaped wire : equal to diameter of 2.8~6.0 |
35 |
156~48 |
37~924 |
JLK710/6+12+18+24 |
45 |
156~42 |
37~1041 |
|
JLK710/12+18+24 |
45 |
132~42 |
44~1041 |
standard export packaging or as customer's requirments
