Help CenterL-Bar Sealing Particle and Granule Packing Equipment
Related Products
-
CE Approved Peanuts Filling Packing EquipmentUS$ 1 - 5,000MOQ: 1 Set -
Automatic Peanuts Carton Packing MachineUS$ 1 - 5,000MOQ: 1 Set
-
Automatic Pepper Packaging Equipment With L-Bar SealerUS$ 1 - 5,000MOQ: 1 Set
-
Automatic Pepper Packing Equipment With CE ApprovedUS$ 1 - 5,000MOQ: 1 Set
-
Sugar Box Gun L Sealer And Shrink WrapperUS$ 2,000 - 30,000MOQ: 1 Set
2. Uses:
BTL-450A+BM-500 Semi automatic L type Shrink Packaging Machine is suitable for electrical products, hardwares, softwares, food, printing products, medications, floor boards, ceramics etc's packing.
L-Bar sealing particle and granule packing equipment
3. Packing result:
L-Bar sealing particle and granule packing equipment
4. Performance Characteristics:
1.High temperature and sticky free L bar sealing knife, sealing action without smoking and burned. Sealed part is tidy and clean.
2. Covering Teflon on the sealing knife.
3. After sealing action, packing product go in the shrink tunnel automatically by the conveyor belt.
4. Conveyor belt is adjustable on the high by a hand wheel.
5. BTL-450A has a manual/auto switch. When choose auto function, Whole sealing action controlled by cylinder automatically, with fast packing speed.
6. Double electromagnets make stronger pressure.
7. Adjustable film layer with needle device, it is able to fit different size film, max 550mm.
8.Sealing knife has hot protection device on.
L-Bar sealing particle and granule packing equipment
5.Machine details:

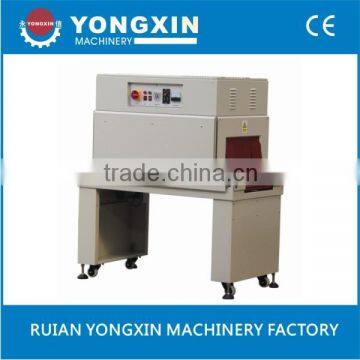

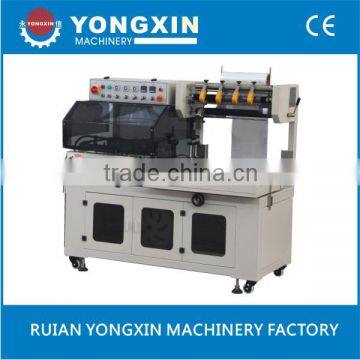

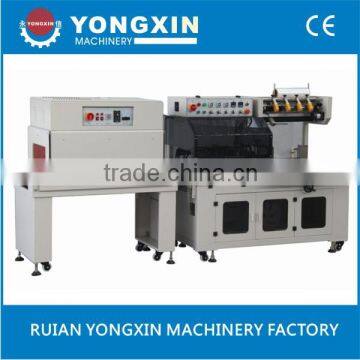

Part one:
L-Bar sealing particle and granule packing equipment
Part two:
L-Bar sealing particle and granule packing equipment
Part three:
L-Bar sealing particle and granule packing equipment
6. Main Technical Parameters:
| Model | BTL-450A | BM-500 |
| Max. Packing Size | (L)500*(W)400)*(H)200mm | (L)700*(W)450*(H)250mm |
| Max. Sealing Size | (L)550*(W)450mm | (L)1200*(W)500*(H)300mm |
| Packing Speed | 800~1200packs/hour | 30~50packs/min |
| Electric Supply&Power | 220V/50Hz 1.2kw | 380V/50Hz 12kw |
| Air Pressure | 6kg/m³ | / |
| Weight | 125kg | 220kg |
| Overall Dimensions | (L)1550*(W)750*(H)1050mm | (L)1350*(W)750*(H)1500mm |
L-Bar sealing particle and granule packing equipment
7. Certificate of CE and Patent:
L-Bar sealing particle and granule packing equipment
8. Packaging and Shipping:
L-Bar sealing particle and granule packing equipment
9. Warranty: One year limited.
Wearing parts guarantee within a year.
L-Bar sealing particle and granule packing equipment
10. Ruian Yongxin Machinery Factory:
L-Bar sealing particle and granule packing equipment
11. Our exhibition:
L-Bar sealing particle and granule packing equipment
12. Machines in the workshop:
L-Bar sealing particle and granule packing equipment
13. Production equipment in the workshop:
L-Bar sealing particle and granule packing equipment
14. Contact us:
If you want to know more information about our bottle semi automatic shrink wrap machine, welcome to contact us and visit our factory any time!!!
L-Bar sealing particle and granule packing equipment
