2. Uses:
This machine adopts a high temperature and sticky free L bar sealing knife, along with a sealing action without smoking and burning. Sealed seam is tidy and clean. The conveyor belt height is adjustable by a hand wheel. It has an adjustable film layer with needle device, easy to fit different size films with max width of 550mm. Double electromagnets can pull sealing frame and also increase sealing pressure.

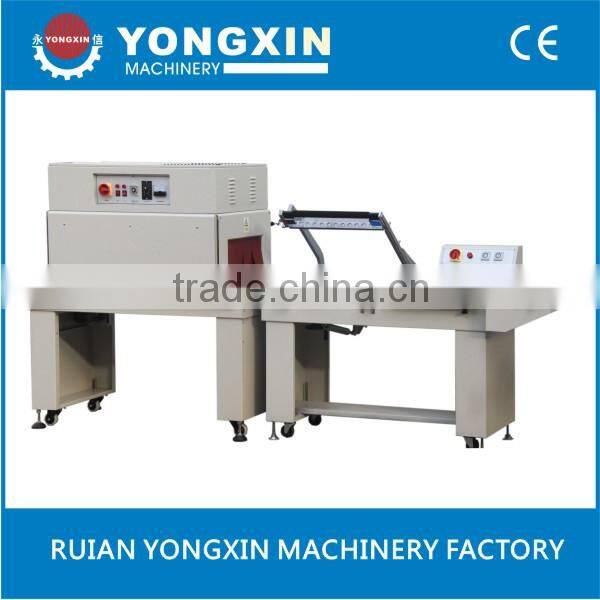

Manual Shrink Wrapper For Wrapping Books
Automatic Grade: Semi-Automatic
Driven Type: Electric
Suitable shrink film: POF
Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.
Packaging style: L type FULL closed sealing packing

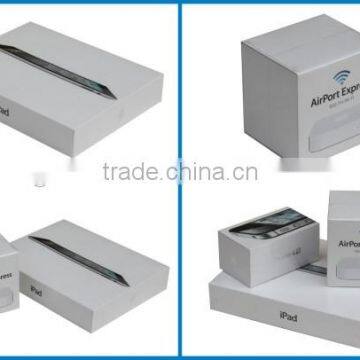

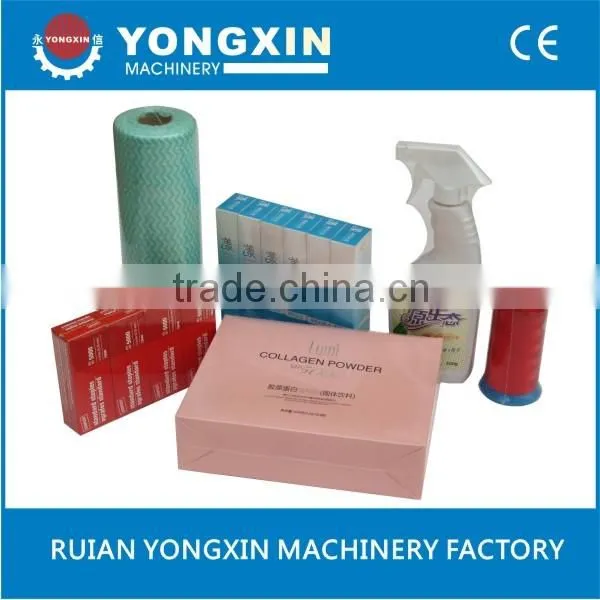

3. Packing result:
Manual Shrink Wrapper For Wrapping Books
4. Performance Characteristics:
1). BTL-450+BM-500 Semi-auto L Bar Shrink Wrapping Machine have low energy consumption and great packaging flexibility in shrink wrapping even for future product formats;
2). Shrink wrapping machine’s special mixed-air method specifically heats up the film to an optimum shrink temperature in a very preserving way so that the film maintains its elasticity and endurance strength. Simultaneously, heat recycling allows for an ideal energy efficiency;
3). Since the development of Anti-Collage system, fusing of the shrink film to the PE-packed product beneath it, as well as creasing of the film, belong to the past, the mixed-air system determines the tensile force in accordance with the load volume and film dimensions. This system enables our customers to achieve substantial savings.
4). High temperature and sticky free L bar sealing knife, sealing action without smoking and burned. Sealed part is tidy and clean. Covering Teflon on the sealing knife. Sealing knife has hot protection device on;
5). After sealing action, packing product goes into the shrink tunnel automatically with the conveyor belt. Conveyor belt height is adjustable by a hand wheel.
6). Double electromagnets make stronger pressure. Adjustable film layer with needle device, it is able to fit different size film.
Manual Shrink Wrapper For Wrapping Books

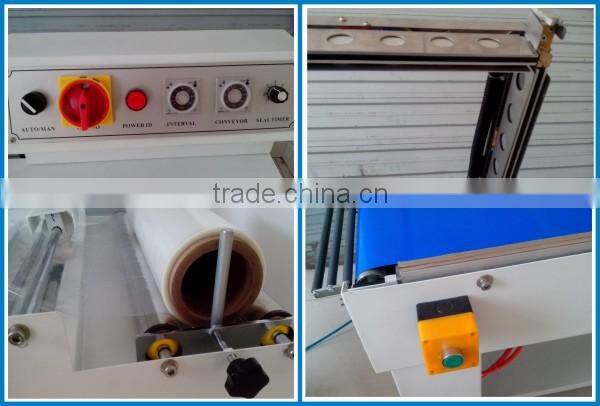

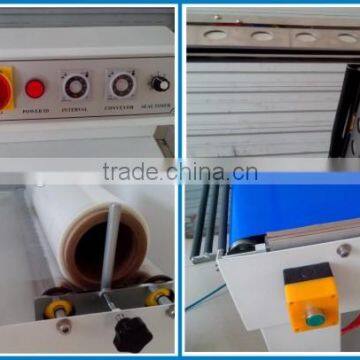

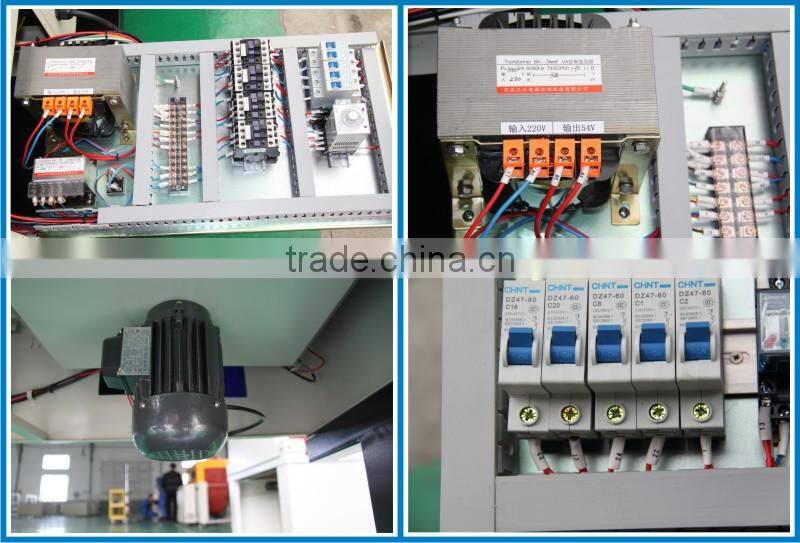

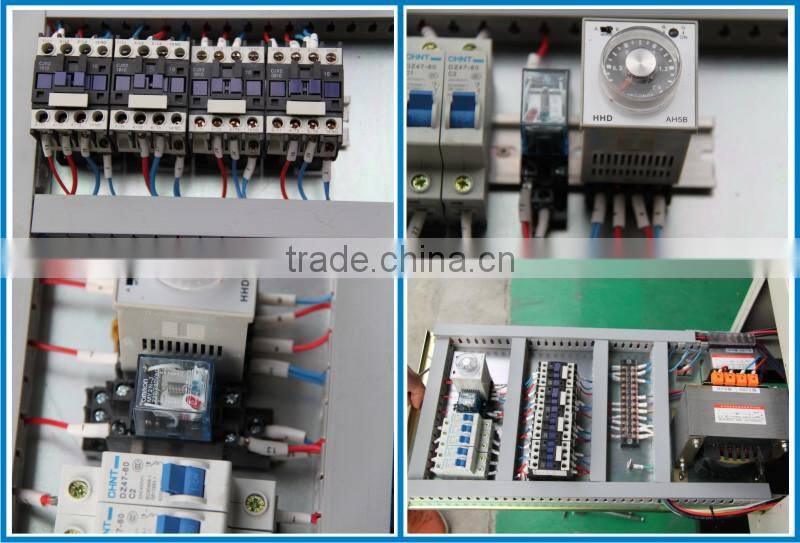

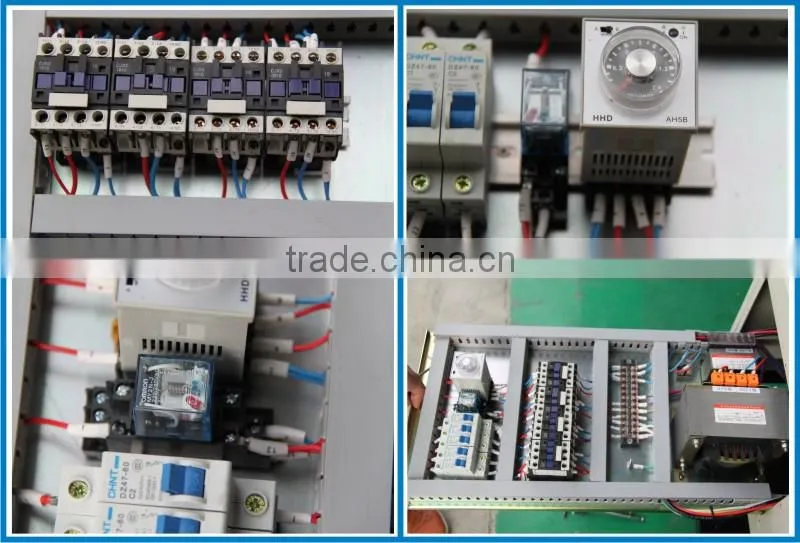

5.Machine details:
Part one:
Manual Shrink Wrapper For Wrapping Books
Part two:
Manual Shrink Wrapper For Wrapping Books
Part three:
Manual Shrink Wrapper For Wrapping Books
6. Main Technical Parameters:
Model |
BTL-450 |
BM-500 |
Max. Packing Size |
(L+H)≤500 (W+H)≤400 (H)≤200 |
(L)700x(W)450 x(H)250mm |
Max. Sealing Size |
(L)550x(W)450mm |
(L)1200x(W)500 x(H)300mm |
Packing Speed |
10-15 packs/min. |
0-15 m/min. |
Electric Supply & Power |
220V / 50Hz 1.2 kw |
380V / 50Hz 12 kw |
Air Pressure |
6 kg/cm3 |
/ |
Weight |
135 kg |
260 kg |
Overall Dimensions |
(L)1550x(W)750 x(H)1050mm |
(L)1350x(W)750 x(H)1500mm |
Manual Shrink Wrapper For Wrapping Books

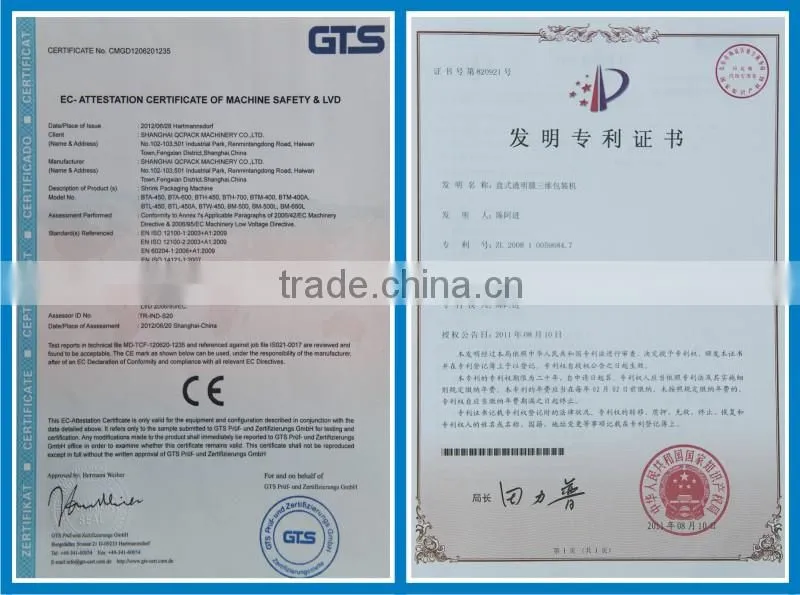

7. Certificate of CE and Patent:
Manual Shrink Wrapper For Wrapping Books

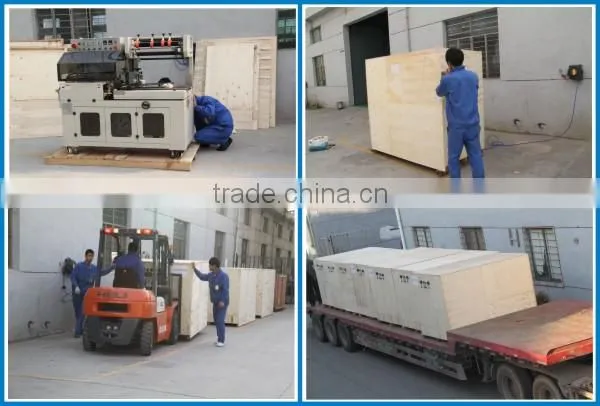

8. Packaging and Shipping:
Manual Shrink Wrapper For Wrapping Books
9. Warranty: One year limited.
Wearing parts guarantee within a year.
Manual Shrink Wrapper For Wrapping Books

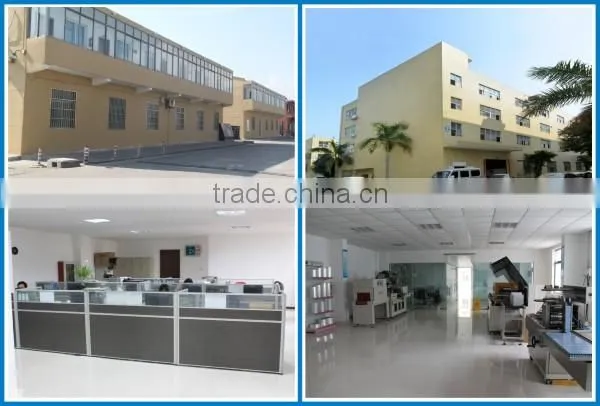

10. Ruian Yongxin Machinery Factory:
Manual Shrink Wrapper For Wrapping Books
11. Our exhibition:
Manual Shrink Wrapper For Wrapping Books

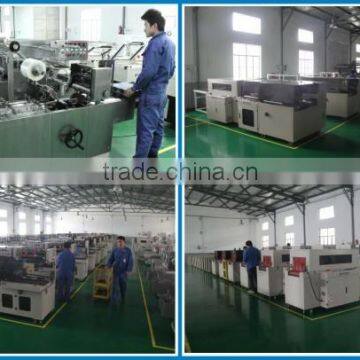

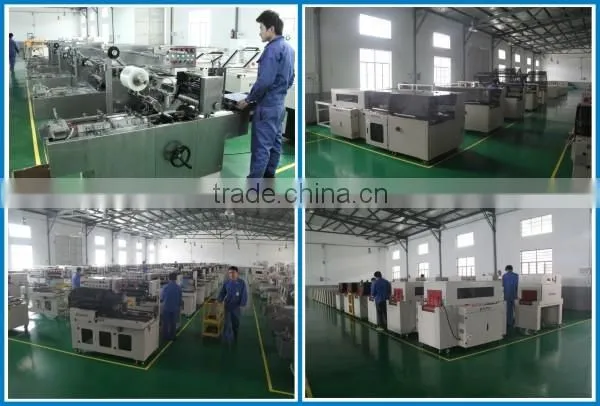

12. Machines in the workshop:
Manual Shrink Wrapper For Wrapping Books
13. Production equipment in the workshop:
Manual Shrink Wrapper For Wrapping Books
14. Contact us:
If you want to know more information about our Semi automatic shrink film machine, welcome to contact us and visit our factory any time!!!
