High-Speed Sweets Box Packing Equipment

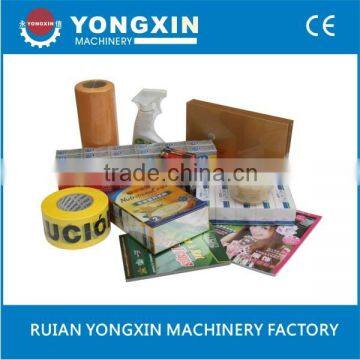

2. Uses: Shrink tunnel
Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverge and beer etc.
High-Speed Sweets Box Packing Equipment

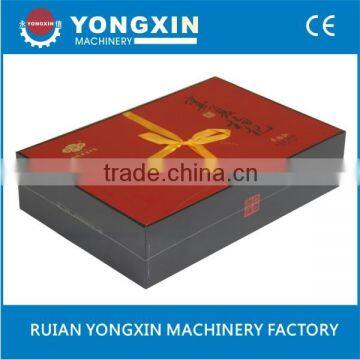

3. Packing result: Shrink tunnel
High-Speed Sweets Box Packing Equipment
4. Performance Characteristics: Shrink tunnel
1.The machine adopts imported touching screen,on which all settings and operation can be done. Meanwhile,various product data can be stored in advance,and operator only to select parameters from the computer while usage.
2.According to different collocations for the machine and different products, the max packing speed is up to 80pcs/min.
3.Constant temperature heat sealing and cutting system is suitable for PE. POF etc, industrial standard shrink films, the seal is firm and nice, especially applicable for POF film, adjust the conveyor with the head wheel for packing products of different size. The reliability is higher and easier to operate it.
4.The front feed in systems speed is adjustable, combines a worktable at the end of the tunnel, makes whole machine highly automatic, it runs automatically without an operator comes true.

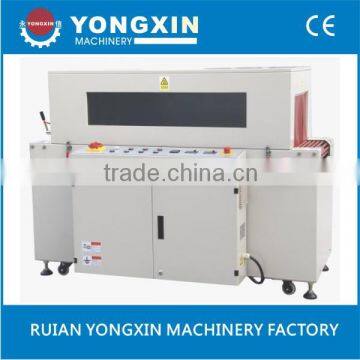

5.BM-500L Hi-speed hot air circulating shrink tunnel adopts roller type conveyor, the rollers are covered by silicone gel pipe, they roll automatically, also the conveyor can use Teflon mesh belt or S.S. mesh belt instead of rollers. When shrink PE film, need not the rollers roll, easy to convert it by the handle at the end of the tunnel.
High-Speed Sweets Box Packing Equipment

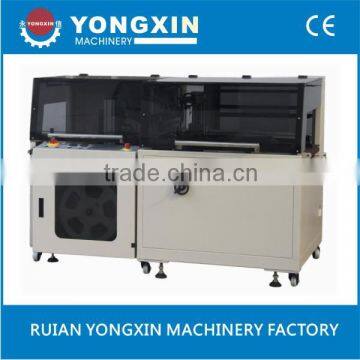

5. Detail of Machine: Shrink tunnel
High-Speed Sweets Box Packing Equipment
6. Main Technical Parameters: Shrink tunnel
Model |
BTH-450 |
BM-500L |
Max Packing Size |
(L)No limited (W+H)≤400mm (H)≤130mm |
(L)1500*(W)450*(H)250mm |
Max sealing Size |
(W+H)≤450mm |
(L)1500*(W)500*(H)300mm |
Packing Speed |
30~80 packs/min |
30~80 packs/min |
Electric Supply & Power |
380V/50Hz 3kw |
380V/50Hz 16kw |
Max Current |
10 A |
32A |
Air Pressure |
5.5kg/cm3 |
/ |
Weight |
800kg |
650kg |
Overall Dimensions |
(L)2050*(W)1500*(H)1300mm |
(L)1800*(W)1100*(H)1300mm |
High-Speed Sweets Box Packing Equipment
7. Spare part list:
| No. | Item | Brand | Qty |
| 1 | Cutting knife servo motor | SIEMENS(Germany) | 1 |
| 2 | Product feeding motor | TPG(Japan) | 1 |
| 3 | PLC | OMRON (Japan) | 1 |
| 4 | servo motor driver | SIEMENS(Germany) | 1 |
| 5 | product feeding inverter | OMRON (Japan) | 1 |
| 6 | Breaker | SCHNEIDER(France) | 1 |
| 7 | Temperature controller | OMRON (Japan) | 1 |
| 8 | side sealing cylinder | FESTO (Germany) | 1 |
| 9 | Horizontal ,vertical sensor | BANNER(USA) | 4 |
| 10 | Sealing knife | DAIDO(Japan) | 1 |
High-Speed Sweets Box Packing Equipment
8. Picture of spare part:
part one:
High-Speed Sweets Box Packing Equipment
part two:
High-Speed Sweets Box Packing Equipment
part three:
High-Speed Sweets Box Packing Equipment
part four:
High-Speed Sweets Box Packing Equipment
9.Certificate of CE and Patent:
High-Speed Sweets Box Packing Equipment
10. Packaging and Shipping:
High-Speed Sweets Box Packing Equipment
11. Warranty: One year limited.
Wearing parts guarantee within a year.
High-Speed Sweets Box Packing Equipment
12. Ruian Yongxin Machinery Factory:
High-Speed Sweets Box Packing Equipment
13. Our exhibition:
High-Speed Sweets Box Packing Equipment

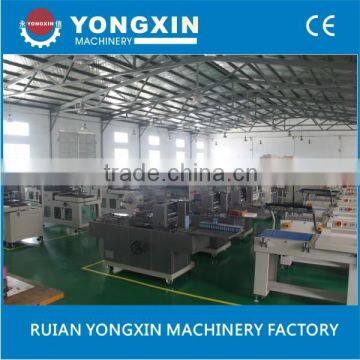

14. Machines in the workshop:
High-Speed Sweets Box Packing Equipment
15. Equipment in workshop:
High-Speed Sweets Box Packing Equipment
16. Contact us:
If you wanna know more information about our machines, welcome to contact us and visit our factory any time!!
