Home > Construction & Decoration > Fence > Security Fence > EST-101A Alarm Cellular Phone Detector

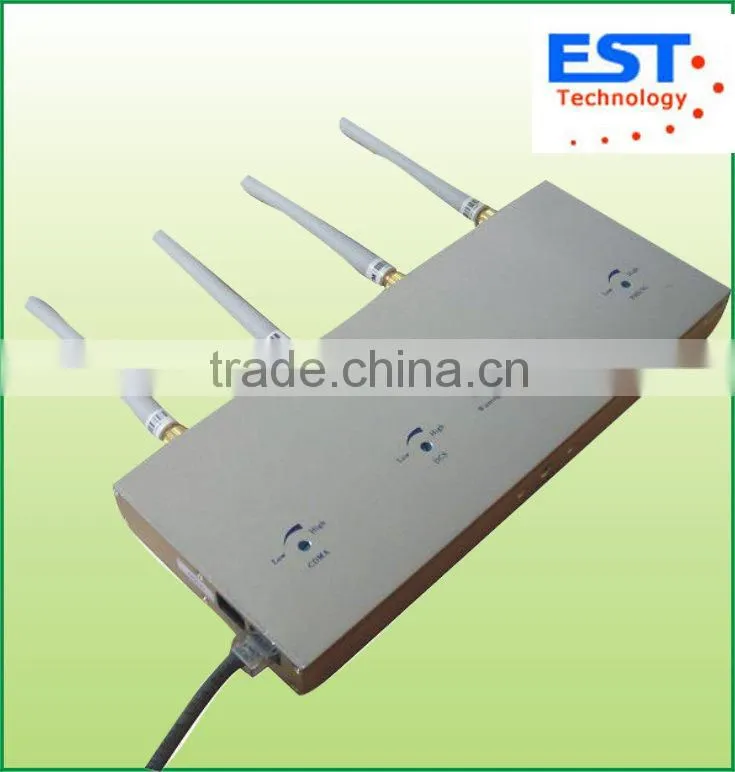

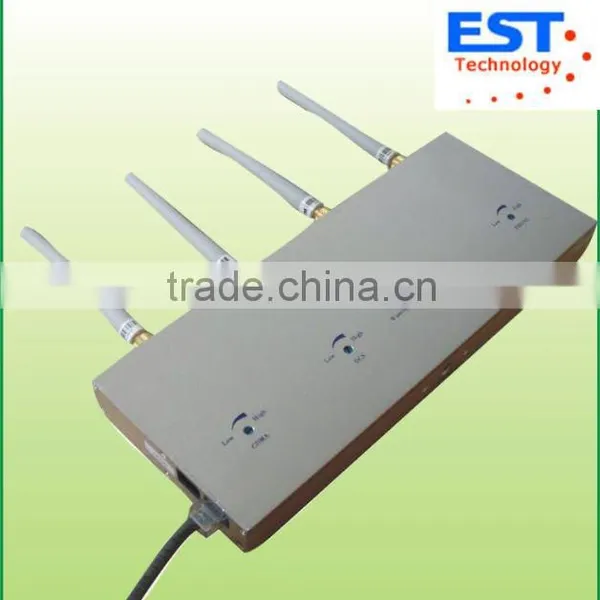

EST-101A Alarm Cellular Phone Detector

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

EST

Model Number:

EST-101A

Contact Supplier Request Quote Chat Now

Shenzhen Eastlonge Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name EST

Model Number EST-101A

Specifications

EST-101A alarm cellular phone detector
1.detector ranng:20m
2.it is suitable for all mobile phone
3.CE certificate approved

EST-101A alarm cellular phone detector
technical parameters

TX Frequency

Output port	Frequency	Average out-putting power	Channel out-putting power
CDMA	824MHz-849MHz	30dBm	3dBm/30KHz(min)
GSM	890MHz-915MHz	30dBm	3dBm/30KHz(min)
DCS	1710MHz-1785MHz	30dBm	3dBm/30KHz(min)
PHS/3G	1920MHz-1980MHz	30dBm	3dBm/30KHz(min)
Power supply: AC adapter (AC220V-DC5V) Semidiameter of interception:5-20 m
Power consume:2W wight:800g Dimension: 230(L) ×95(W) × 20(H)mm

Jamming range of the signal detector : 5-20M (It still depends on the strength signal in given area)

The green light on means the main system work well, the red light on shows that the RF inspecting system works well.

When the detector is working, the TTL signal and RS-485 communication signal are output by the system.

Sentivity of the signal detector : Adjusted knobs, independent frequency.

Caboodle Management : coding orientation

Temperature : -40°C~ 55°C

Receiving Antenna : Plastic antennas

Working Voltage : Input AC 110V ~ 240V 50/60 Hz

Output DC 5V 2A

Dimension : 230*85*30mm

Working Time : It can work stably for a long time

Environment Temperature : -20°C ~ 65°C

Relative humility : 30% ~ 70%

Installation and operation instruction

3.1 Take out the detector from the packaging.

3.2 Screw the antennas into the corresponding antennas seats repectivelt, otherwise they will be useless.

3.3 Hang the detector onto the wall. (Setting height ≥2M)

3.4 Insert the AC plug into the socket, then switch on. When the power indicator is lit, it means that the device starts working. (Different detector should be with different battery.)
