Felicity Solar Convenient Design Europe Type 12v Solar Battery 150ah Solar Battery

Felicity Solar Convenient Design Europe Type 12v Solar Battery 150ah Solar Battery photo-1
Felicity Solar Convenient Design Europe Type 12v Solar Battery 150ah Solar Battery photo-2

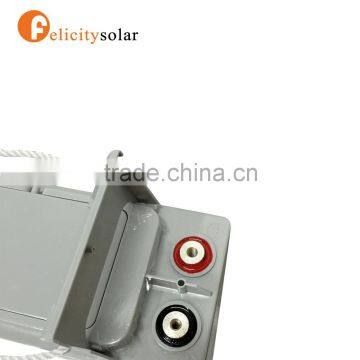

Felicity Solar Convenient Design Europe Type 12v Solar Battery 150ah Solar Battery photo-3

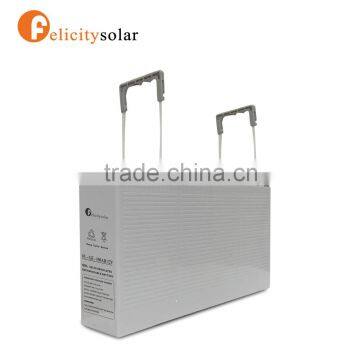

Felicity Solar Convenient Design Europe Type 12v Solar Battery 150ah Solar Battery photo-4

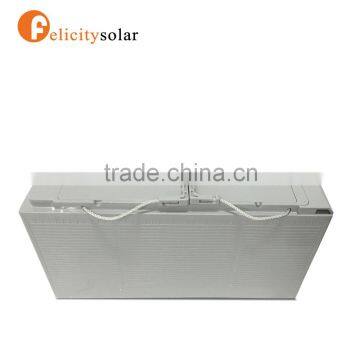

Felicity Solar Convenient Design Europe Type 12v Solar Battery 150ah Solar Battery photo-5
US$ 146 - 156 MOQ: 60 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Felicitysolar
Model Number:
FL-G-150AH 12V
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Felicitysolar
Model Number FL-G-150AH 12V
Usage Other, solar, off grid solar system
Voltage Other, 12v, 12v
Sealed Type Sealed
Maintenance Type Free
Size 558*125 *283 mm
Weight 43.5kg
Nominal Capacity 150AH
Product Description

Brief Introduction

A solar battery is a rechargeable battery that integrates a solar cell with battery power storage.
A second meaning of solar battery are rechargeable batteries which have been developed specifically for use in photovoltaic systems or are just used for. They are used especially in stand-alone systems for storage of energy produced by solar panels and batteries as a buffer when major consumer operation. Often, the term is also commonly used for built-in solar power applications batteries, even if they are not specified for it.

Main Advantages

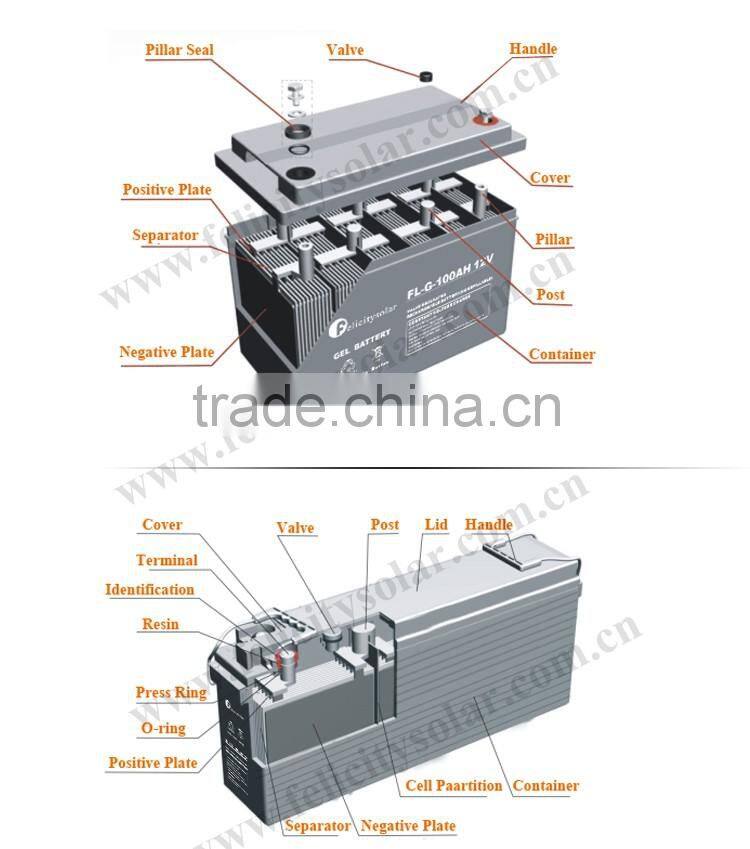

Material Advantage

Plates:1% higher than the average content of tin plate, effectively prevent corrosion and sulfide of the plate.
Electrolyte:Silicon-containing salt composition, effectively prevent the battery from dehydration.
Paper separator:using domestic top brands, a variety of materials certification.
Terminals:All copper materials, there are many other battery suppliers using lead terminals.
Battery products:enough plate number, enough battery capacity, enough weight.

GEL batteries Benefits

1. Solve electrolyte stratification, sulfuric acid evenly distributed.
2. The silica gel electrolyte lead-acid batteries can be so deep discharge, thus greatly extending the cycle life of the battery.
3. The battery float current is small (about 1/3 AGM battery), the floating charge lower energy consumption, less warming, reduce battery thermal runaway risk.
4. low self-discharge rate of the battery.

Product Applications

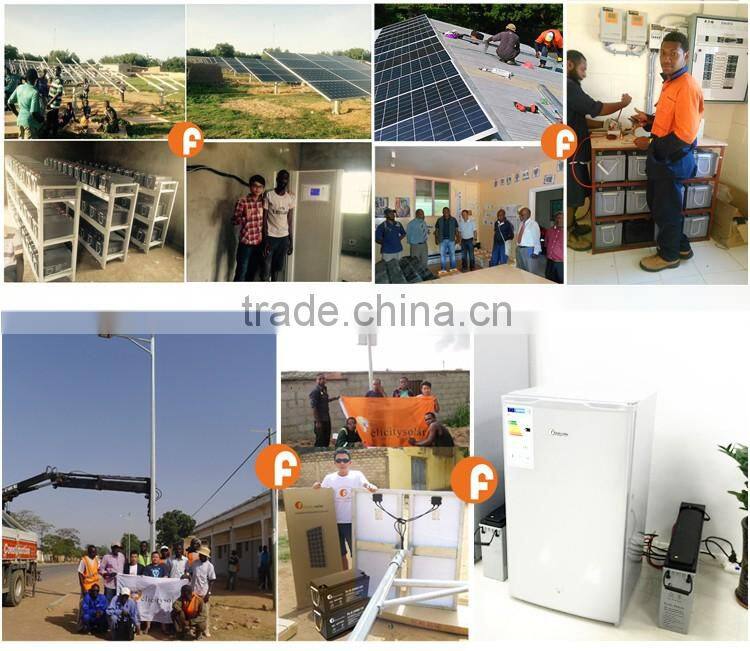

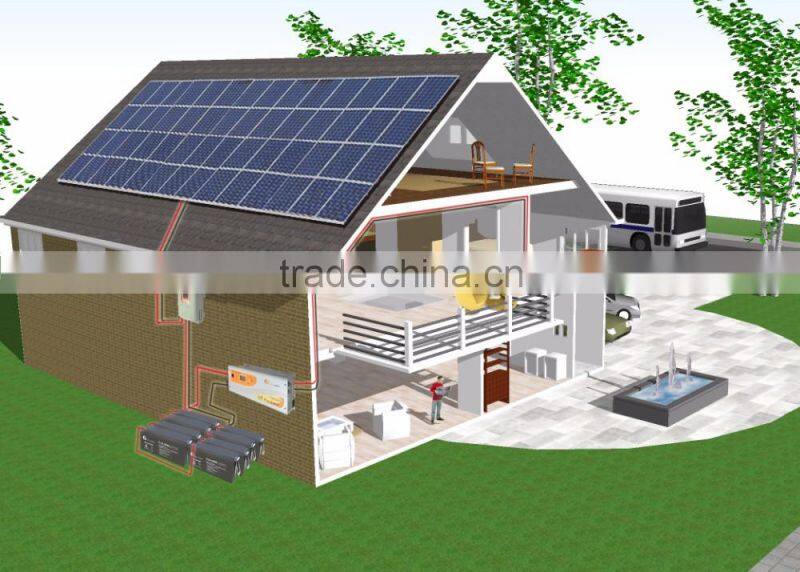

Felicitysolar GEL Battery can be used for solar power station, home solar power system, solar street project, solar fridge&freezer system, etc.


Product Parameters
Model
FL-G-100AH12V
FL-G-150AH12V
FL-G-200AH12V
Rated Capacity(10hour Rate)
100Ah
150Ah
200Ah
Dimensions
216*330*171mm
241*483.5*170mm
219*552*240mm
Weight
28.5 kg
39 kg
57.5 kg
Characteristics capacity 25℃(77.℉)
10 hour rate(10.0A)
100AH
150AH
200AH
5 Hour rate(16.0A)
80AH
60AH
80AH
Charge (Constant voltage) CYCLE
Initial charging current less than 30A Voltage 14.4-14.8V (14-16 hours)
Initial charging current less than 45A Voltage 14.4-14.8V(14-16 hours)
Initial charging current less than 60A Voltage 14.4-14.8V(14-16 hours)
Float
13.5-13.8V

Capacity affected by temperature(10 hour rate)
 40℃104℉ 102%
25℃77℉ 100%
0℃32℉ 85%
-15℃5℉ 65%

Self-Discharge at 25℃77℉
Capacity after 3 month storage 91%
Capacity after 6 month storage 82%
Capacity after 12 month storage 64%
Terminal
T10
T11
T11
Europe Model
FL-GE-150AH12V
Cells Per Unit
6
Voltage Per Unit
12
Capacity
150Ah@10hr-rate to 1.80V per cell @25 C
Weight
Approx.45.0Kg ( ± %)
Max. Discharge Current
1500 A (5 sec)
Internal Resistance
Approx. 4 mΩ
Operating Temperature Range
Discharge: -20 ~60℃

Charge: 0~50 ℃

Storage: -20~60 ℃
Normal Operating Temperature Range
25 C±5 C
Float charging Voltage
13.6 to 13.8 VDC/unit Average at 25 C
Recommended Maximum Charging Current Limit
45 A
Equalization and Cycle Service
14.6 to 14.8 VDC/unit Average at 25 C
Self Discharge
RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored

for more than 6 months at 25 C. Self-discharge ratio less than 3%

per month at 25 C. Please charge batteries before using.
Terminal
Terminal F9
Container Material
A.B.S. UL94-HB, UL94-V0 Optional
Dimension
555*110*228mm
Packing&Delivery

100Ah 340*182*261mm

150Ah 489*180*275mm

200Ah 530*248*275mm

100Ah 28kg/pc 0.02cbm/pc

150Ah 42kg/pc 0.02cbm/pc

200Ah 58kg/pc 0.04cbm/pc


980 pcs fill in a 20' container

650 pcs fill in a 20' container

470 pcs fill in a 20' container

FL-GE-150AH12V

586*120*315mm


45kg/pc 0.04cbm/pc

610 pcs fill in a 20' containaer


FAQ

Q:How about the lifespan of your battery?

A:Felicitysolar GEL battery lifespan is more than 2 years.
Q:What kind of your battery?

A:Felicitysolar battery is GEL battery, better than lead acid battery.
Q:What should I notice while I'm using the battery?

A:Before you use it, please ensure it's full charging.
Q:When the battery is not using for a long time, what should I do?

A:You should charge it full at first.
Q:What is MOQ of the battery?

A:1pc for sample is ok.
Q:What is the terms of payment?

A:T/T, L/C,western union, paypal or cash; 30% for deposit, the balance 70% before shipment.
Q:What is the warranty?

A:We offer 2 years warranty for the battery.
Q:What is the delivery time?

A:3 work day with stock after receiving the payment. No stock, 25 work days after receiving the payment


Our company

Company Profile

Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar panel production lines, LED street light production lines and the testing systems for solar power and lighting.




Exhibition

Every year we attend many exhibition fair in China and abroad. Such as Canton Fair, HKTDC, SAITEX, etc. We always show the newest, best quality, best selling products in the fair.

Trade & Market

Our main market is Africa, we also do other market business, Mid East, Asia, America, etc. We have got a lots of good feedback of our products from our clients, and we will also listen the advice from them to develop our products. It makes us becoming better to provide the best service to our client.
