Help Center220V 70mm Small Electric Gear Motors
US$ 50 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SOK MOTOR- gear motors
Model Number:
70TYJ060D4-2W10- gear motors
Type:
Synchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
220V 70mm ac Single Phase Gear MotorUS$ 50 - 300MOQ: 1 Piece -
220V 70mm Synchronous Motors With a Favourable Price Performance RatioUS$ 50 - 300MOQ: 1 Piece
-
220V 70mm High Torque ac Motor With Worm GearboxUS$ 50 - 300MOQ: 1 Piece
-
220V 70mm Brushless ac Motor Worm GearmotorUS$ 50 - 300MOQ: 1 Piece
-
220V 70mm ac Small Gear MotorsUS$ 50 - 300MOQ: 1 Piece
Brand Name
SOK MOTOR- gear motors
Model Number
70TYJ060D4-2W10- gear motors
Type
Synchronous Motor
Frequency
50Hz
Protect Feature
Drip-proof
Phase
Single-phase
Certification
CCC, CE, ROHS, Other, CCC, CE, ROHS, BV
AC Voltage
Other, 220V
Place of Origin
Jiangsu, China

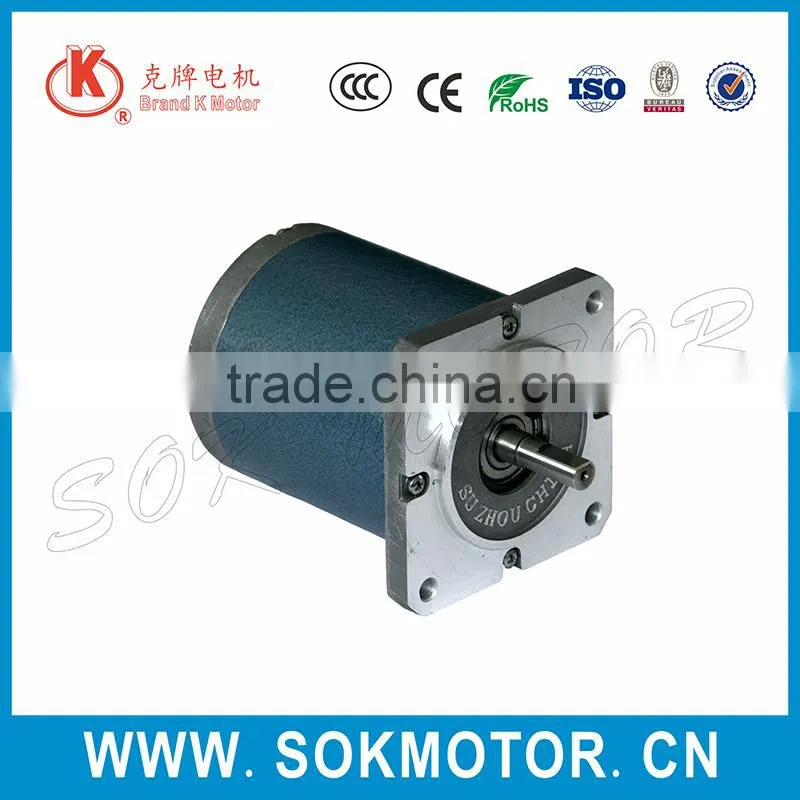

Product Description

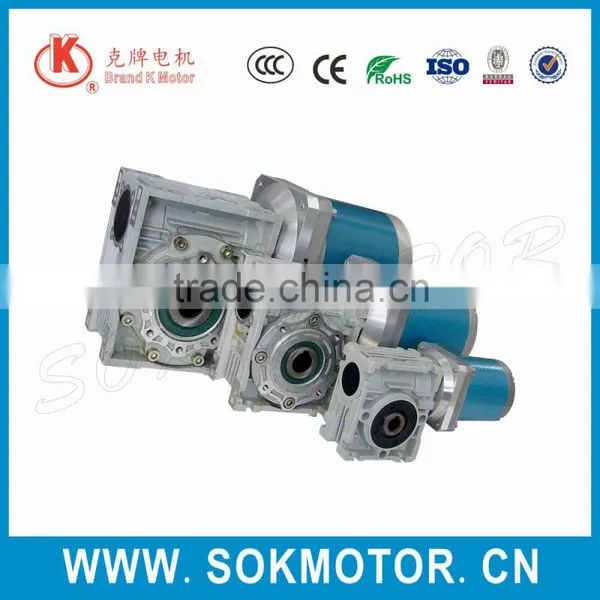

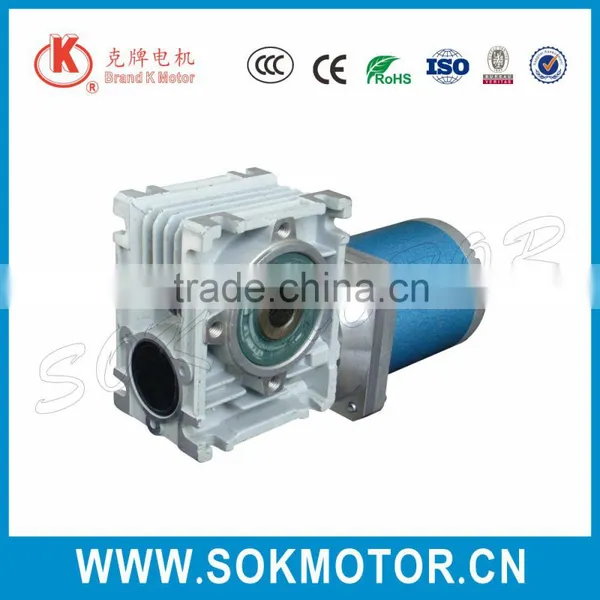

Permanent magnet synchronous worm motor consists of permanent magnet synchronous motor and a high accuracy and reliable worm reduction box.The output axis is perpendicular to axis of the motor.They features great reduction ratio,smooth operating,low noise,long life,great output torque and great load inertia capability.
The motors can be used with SOK SV02-D4 frequency controller,the stepless adjustable speed requirement can be obtained.
The motors can be used with SOK SV02-D4 frequency controller,the stepless adjustable speed requirement can be obtained.
Typical application
Auto-production line
Textile machines
Electric gate-barrier motors system
Valve control actuator
Packaging machines
Ambient condition
1.Temperature:-25℃~ +40℃;
2.Relative humidity:90%~ 95%;
3.Atmospheric pressure :74.8KPa(2500m);
4.Vibration:10~55Hz,double amplitude 1.5mm;
5.Impact: 150m/s2

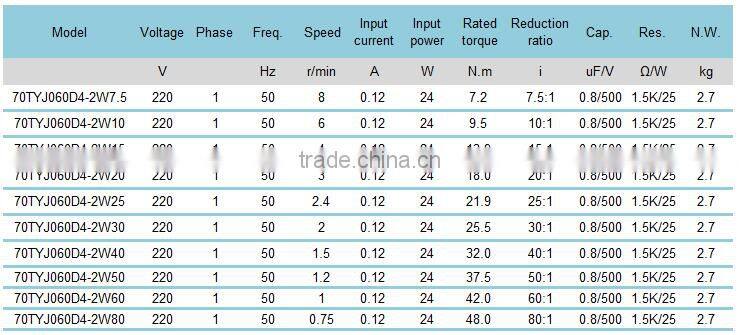

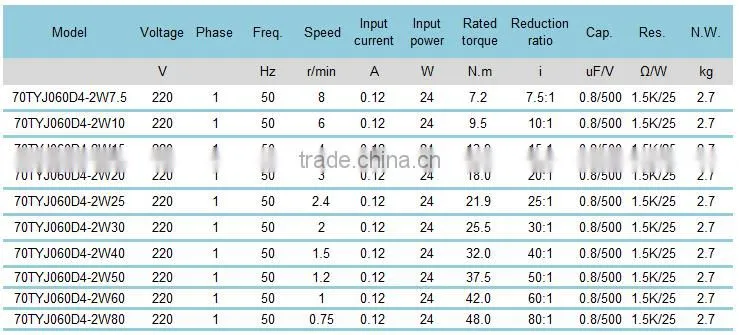

Specifications
Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, reduction ratio, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

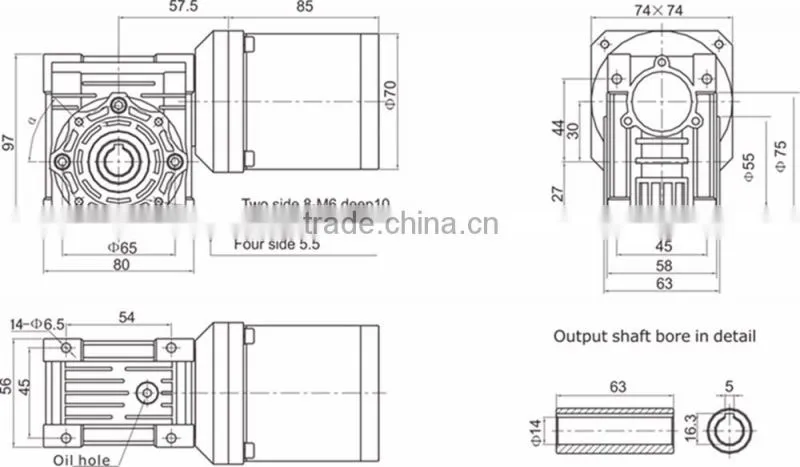

Outline drawing
Wiring diagram
Our service
Our Company

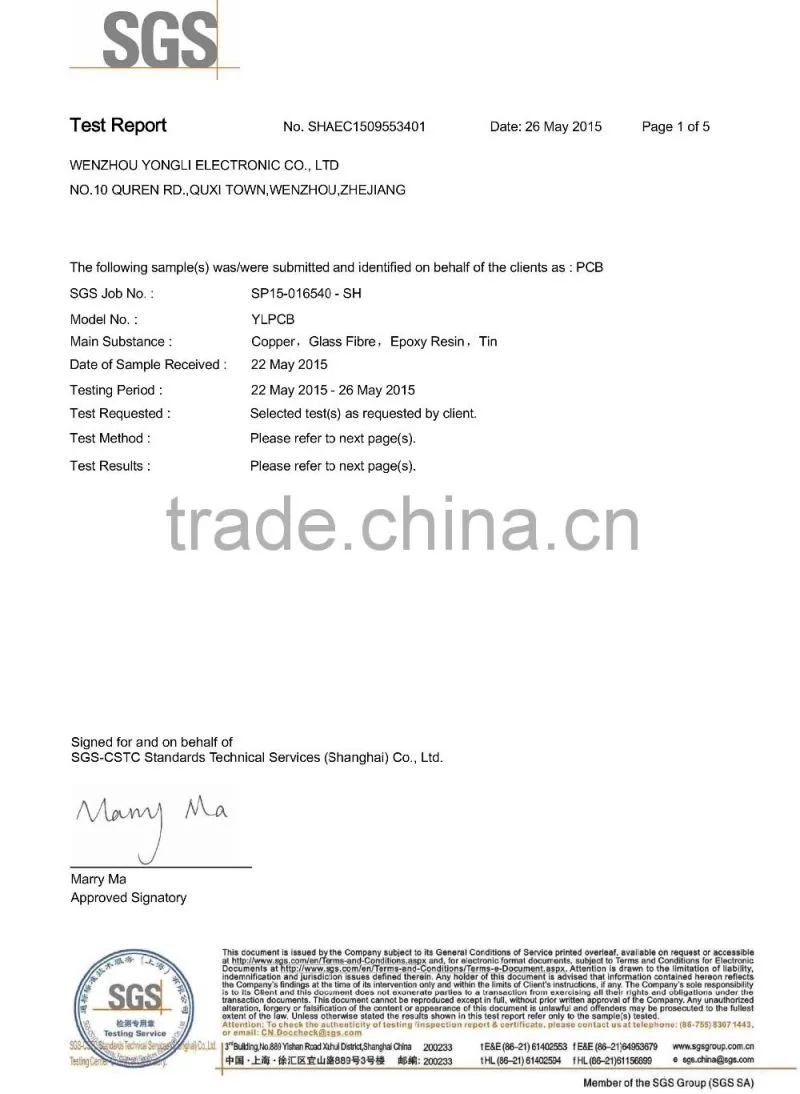

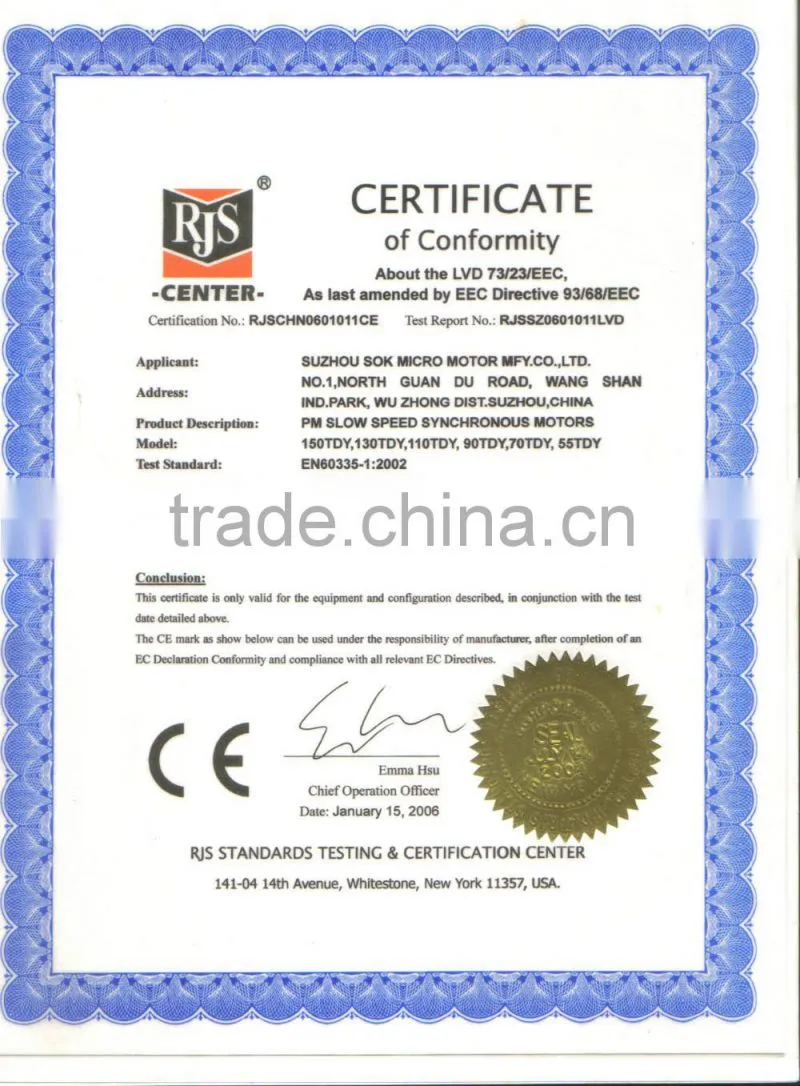

Certifications
