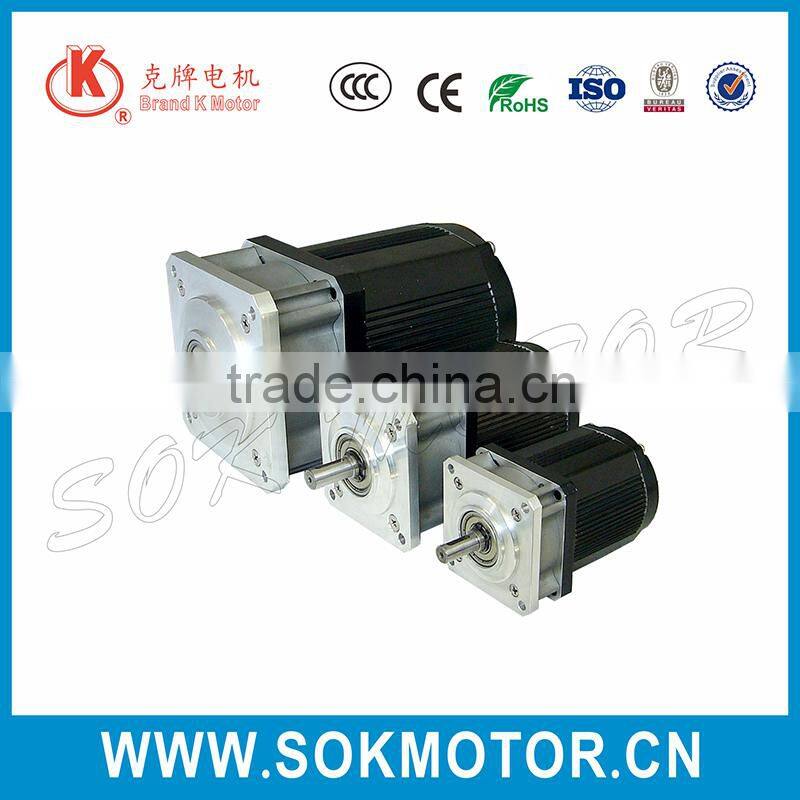

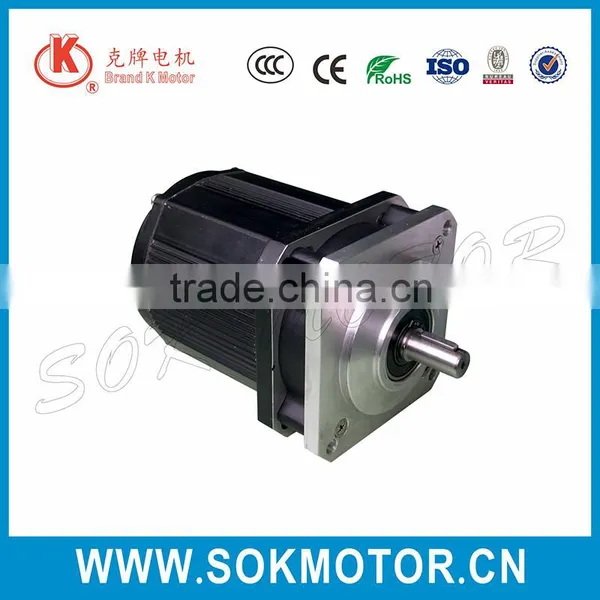

380V 90mm Gear Reduction Electric Motor
US$ 40.2 - 94.6
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SOK MOTOR-gear reduction electric motor
Model Number:
90TYJ060S5-2AG3- gear reduction electric motor
Type:
Synchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
380V 90mm High Quality Brushless Permanent Magnet Motor With Gear BoxUS$ 40.2 - 94.6MOQ: 1 Piece -
380V 90mm High Efficiency ac Electric GearmotorUS$ 40.2 - 94.6MOQ: 1 Piece
-
380V 90mm Synchronous ac Motor GearboxUS$ 40.2 - 94.6MOQ: 1 Piece
-
220V 110mm High Quality Gear Reduction ac MotorsUS$ 75.8 - 179.2MOQ: 1 Piece
-
220V 110mm Low Speed Synchronous Gear Motor for Feed Mechanism of LathesUS$ 75.8 - 179.2MOQ: 1 Piece
Brand Name
SOK MOTOR-gear reduction electric motor
Model Number
90TYJ060S5-2AG3- gear reduction electric motor
Type
Synchronous Motor
Frequency
50Hz
Protect Feature
Drip-proof
Phase
Three-phase
Certification
CCC, CE, ROHS
AC Voltage
Other, 380V
Place of Origin
Jiangsu, China
Product Description

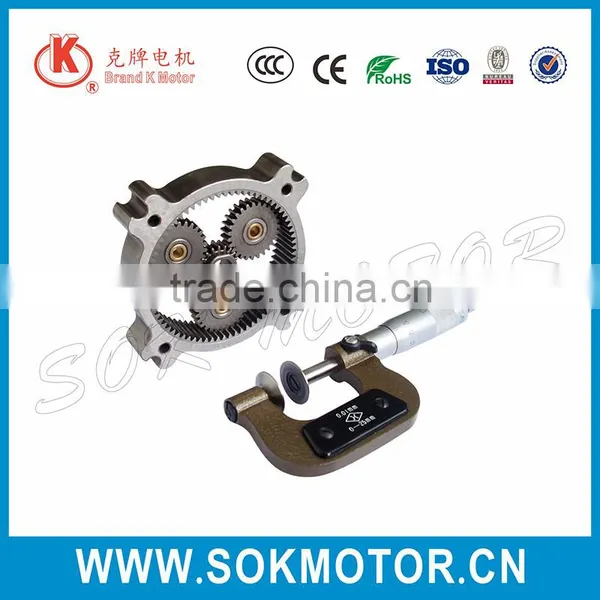

The synchronous gear motor consists of synchronous motor and high reliable planetary gear box, which has following features :compact construction, constant speed, high torque. There will be no impact current when the motor start ,brake, reverse and stall instantly. The motors have certain holding torque, if they are excited by DC power, they will produce high holding torque.
In addition, the motors can start ,brake, reverse and stall instantly. They also can drive high inertial loading and are mainly used as driving devices.
The synchronous gear motor can achieve stepless variable speed to meet different requirement if they are driven by SOK’s special inverter SV02-D4.
Typical application
Auto-testing equipments
Medical equipments
Timing belt drives
X-ray scanning
Feed mechanism of lathes
Textile machines
Electrical valve actuator
Cryogenic pump
Conveyor systems
Barrier gate
Remote control of switches rheostat
Printing,packaging machines
Antenna rotators
Auto-welding machines
Automatic production line
Ambient condition
1.Temperature:-25℃~ +40℃;
2.Relative humidity:90%~ 95%;
3.Atmospheric pressure :74.8KPa(2500m);
4.Vibration:10~55Hz,double amplitude 1.5mm;
5.Impact: 150m/s2

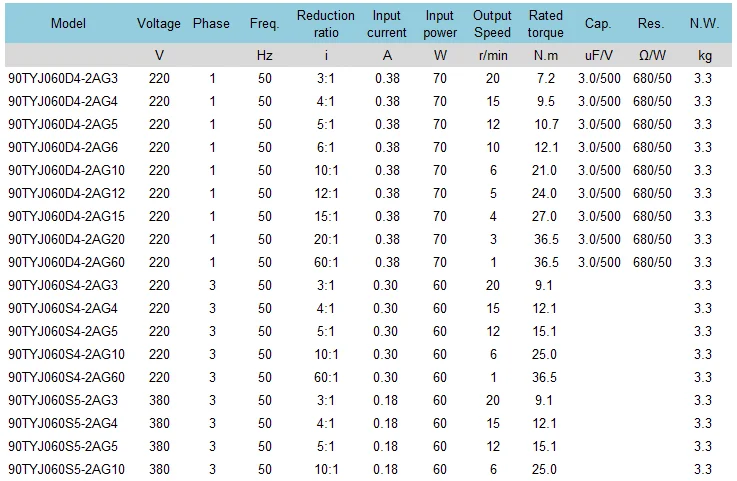

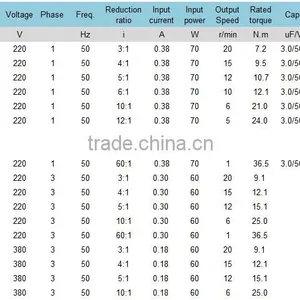

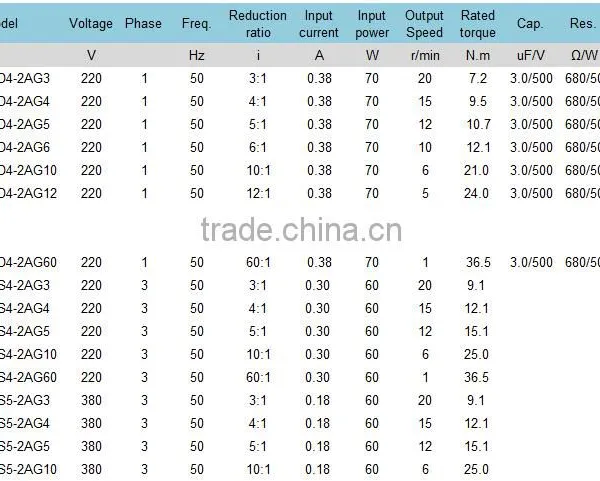

Specifications
Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, shaft extension, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Outline drawing

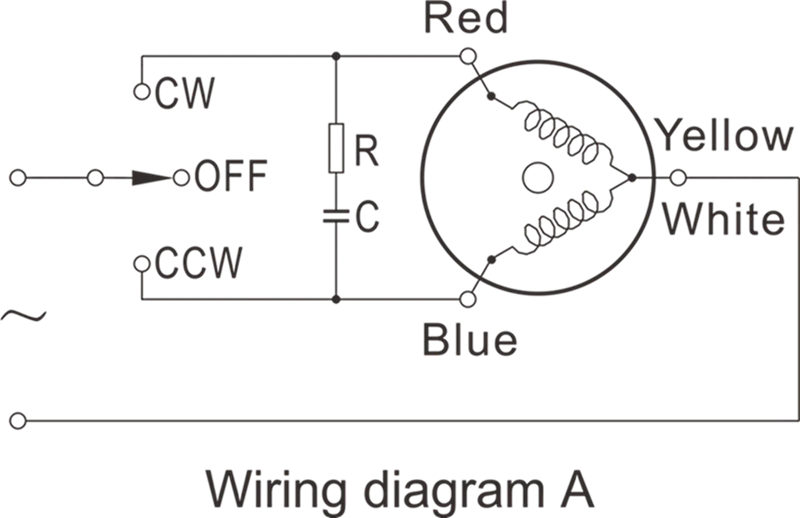

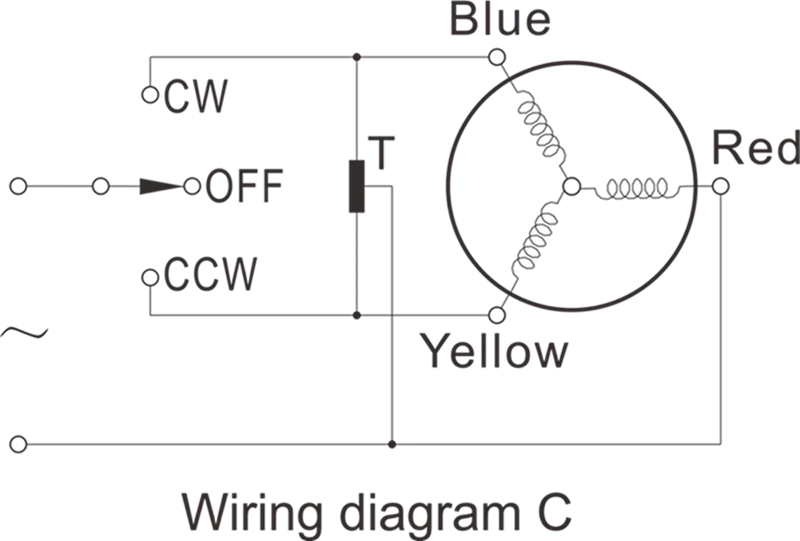

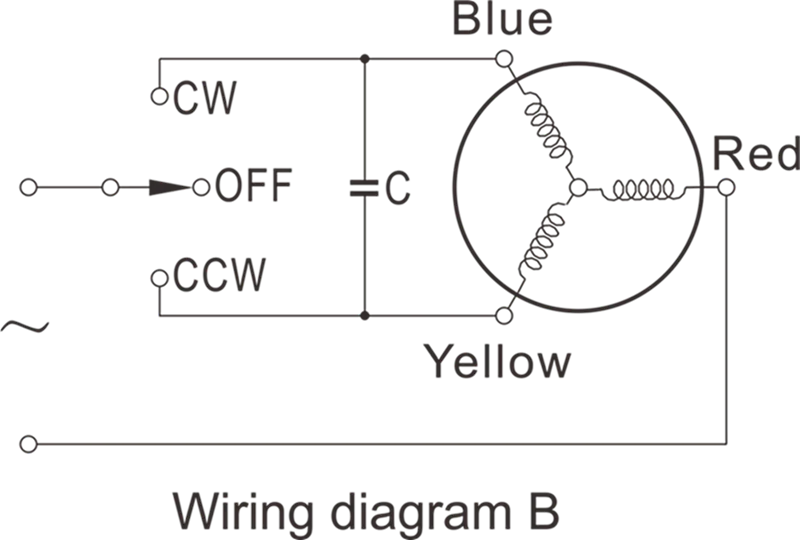

Wiring diagram
