220V 90mm multifunctional warm motors

FOB Price

USD $50 - $300 / Piece

1 Piece(Min.Order)

Supply Ability 15000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	SOK MOTOR- warm motors	Model Number:	90TYJ060S4-2W7.5- warm motors	Type:	Synchronous Motor
Frequency:	50Hz	Protect Feature:	Drip-proof	Phase:	Three-phase
Certification:	CCC, CE, ROHS, Other, CCC, CE, ROHS, BV	AC Voltage:	Other, 220V	Place of Origin:	Jiangsu, China

Product Description

Permanent magnet synchronous worm motor consists of permanent magnet synchronous motor and a high accuracy and reliable worm reduction box.The output axis is perpendicular to axis of the motor.They features great reduction ratio,smooth operating,low noise,long life,great output torque and great load inertia capability.

The motors can be used with SOK SV02-D4 frequency controller,the stepless adjustable speed requirement can be obtained.

Typical application

Auto-production line

Textile machines

Electric gate-barrier motors system

Valve control actuator

Packaging machines

Ambient condition

1.Temperature:-25℃~ +40℃;

2.Relative humidity:90%~ 95%;

3.Atmospheric pressure :74.8KPa(2500m);

4.Vibration:10~55Hz,double amplitude 1.5mm;

5.Impact: 150m/s²

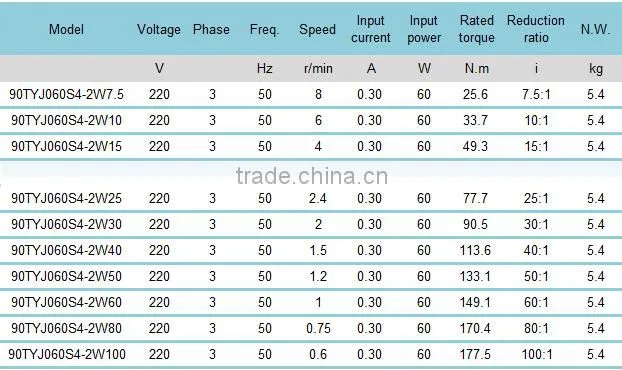

Specifications

Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, reduction ratio, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing

Wiring diagram
