Help CenterMicro Stepper Motor 2 Phase 1.8 Degree for 3D Printer & CNC Hobbyist
Related Products
-
Nema 34 Stepper Motor With High Torque 86mm From SOK Motor for Medical EquipmentUS$ 5 - 30MOQ: 1 Piece -
New Type SOK Stepper Motor for Engraving MachineUS$ 5 - 30MOQ: 1 Piece
-
20mm (NEMA8) 2phase Hybridstepper MotorUS$ 5 - 30MOQ: 1 Piece
-
Good Quality and Fast Delivery 1.8degree 2 Phase 20mm Small Stepper MotorUS$ 5 - 30MOQ: 1 Piece
-
20mm Mini 2 Phase NEMA8 Stepper Motor for 3D Printer CNCUS$ 5 - 30MOQ: 1 Piece
86mm size stepper motor ,
NEMA34 stepping motor,
Small stepping motors,
2 phase 86mm stepper motor
Stepper motor 86mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version

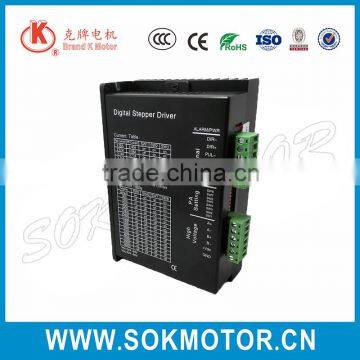

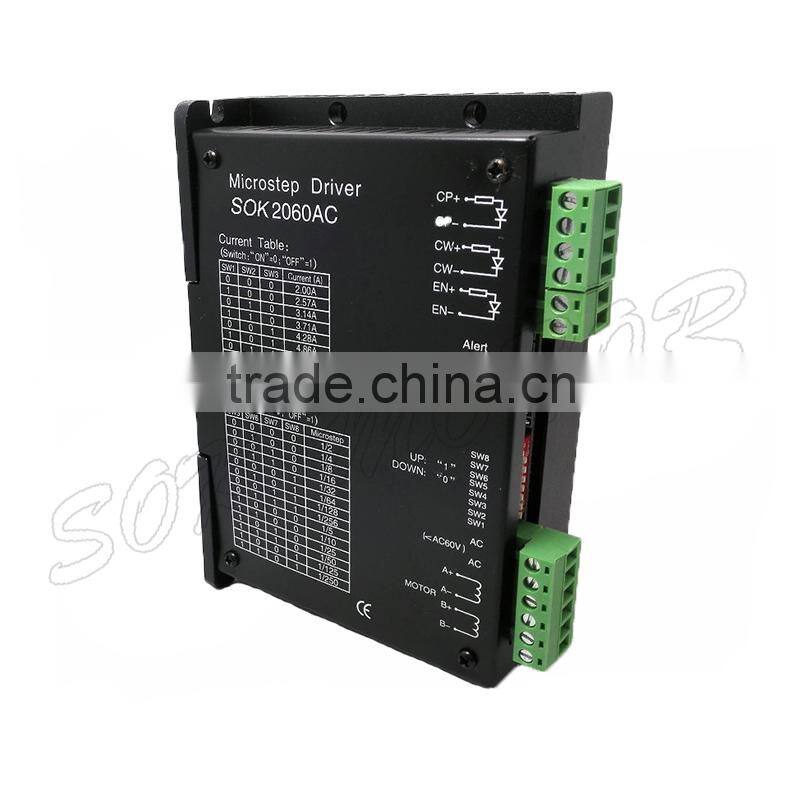

Micro stepper motor driver-JK2060AC
Characteristics:
1.Power input type:24V~55V AC,36V~80V DC
2.Output current:2~6A
3.Mircostepping:1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256,1/5,1/10,1/25,1/50,1/125,1/250
4. Protect form : Overheated protect, lock automatic half current ,error connect protect
5.Dimensions:147mm*97mm*30mm
6. The maximum pulse rate is 100KHZ.
7. Weight:600g.
8. Working environment:Temperature-15~40℃Humidity<90%.
Typical application of Micro stepper motor
robots
advertising instrument
textile machinery
electronic automatic equipment
lighting& audio equipment
Cnc router
medical instrument
printer
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2

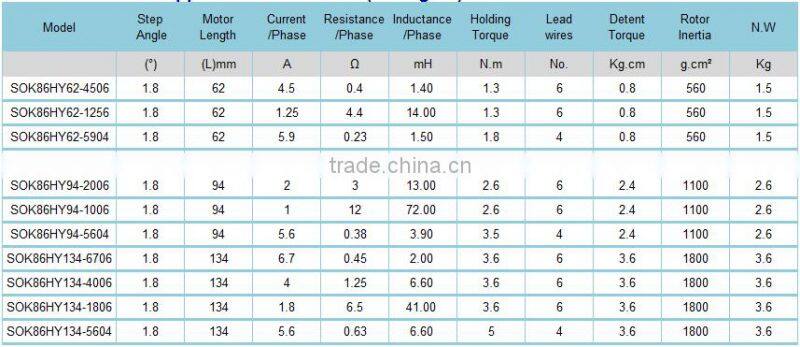

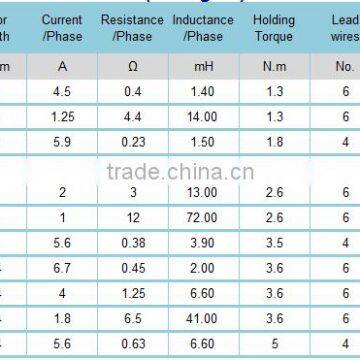

Electric motor parameter of Micro stepper motor
Note: The typical specifications below are just for your reference. Stepper motors can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

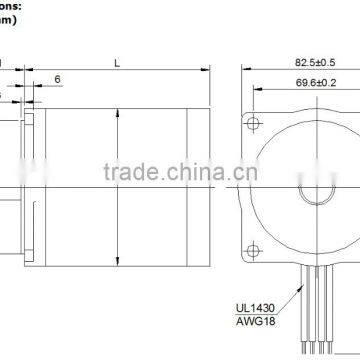

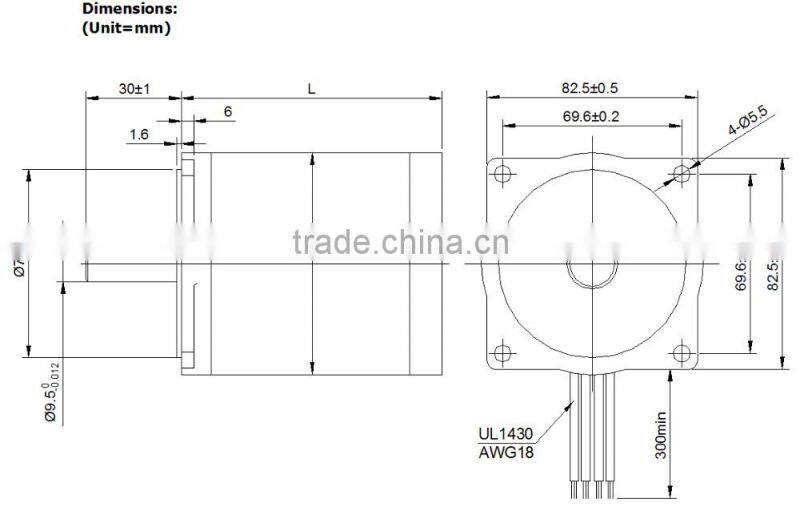

Dimension of Micro stepper motor
Wiring diagram of Micro stepper motor
