Help CenterNEMA24 Stepper Motor
Related Products
-
Nema 17 Stepper Motor With High Quality for 3D PrinterUS$ 5 - 30MOQ: 1 Piece -
High Quality Nema 17 Stepper Motor for 3D Printer MachineUS$ 5 - 30MOQ: 1 Piece
-
High Precision Low Price 0.9 Degree Stepper Motor for Monitoring MachineUS$ 5 - 30MOQ: 1 Piece
-
1.8 60mm (NEMA24) 3d Printer Stepper MotorUS$ 10 - 25MOQ: 1 Piece
-
High Performance NEMA24 Heavy Duty Stepper MotorUS$ 10 - 25MOQ: 1 Piece
2. accept customer's customizatio
3.0N.m Stepper motor, high torque stepper motor with 60mm size.
4.0N.m stepping motor,
NEMA24 high torque stepper motor driver-SOK1545
1.DC power input type:24V~50VDC
2.Output current:1.3A-4.5A
3.Mircostepping:1(1.8º) 1/2 1/4 1/8 1/16 1/32 1/64 1/128 1/256 1/5 1/10 1/25 1/50 1/125 1/250
4.Protect form :Overheated protect, lock automatic half current ,error connect protect
5.Dimensions:118mm×76mm×33mm
6.Weight:<350g.
7.Working environment:Temperature-15~40ºC Humidity<90.
Typical application of NEMA24 stepper motor
robots
advertising instrument
textile machinery
electronic automatic equipment
lighting& audio equipment
Cnc router
medical instrument
printer
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2

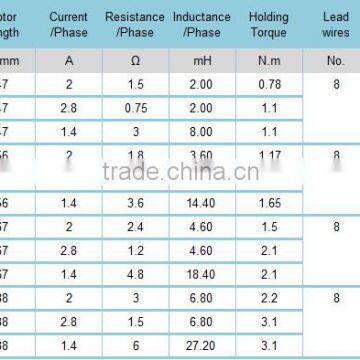

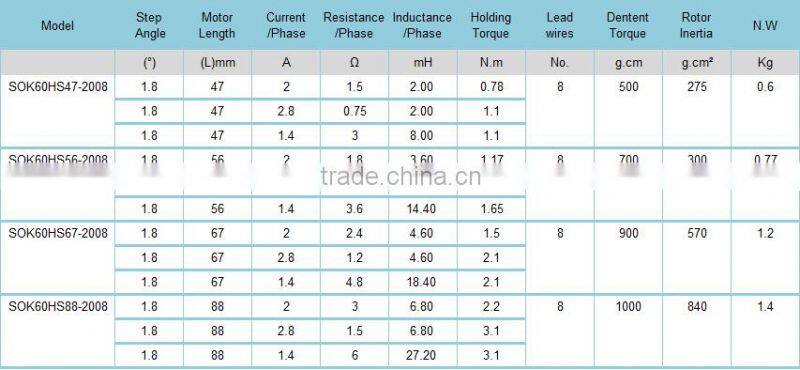

Electric motor parameter of NEMA24 stepper motor
Note: The typical specifications below are just for your reference. Stepper motors can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

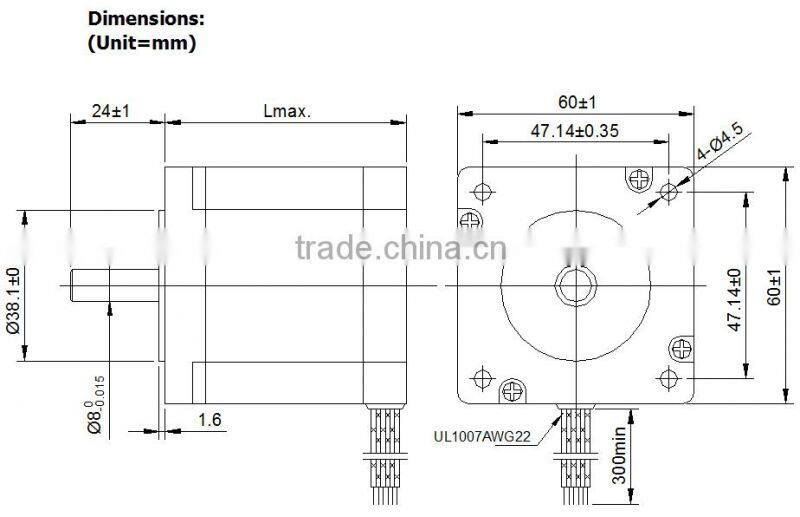

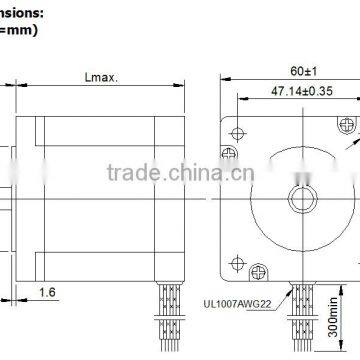

Dimension of NEMA24 stepper motor

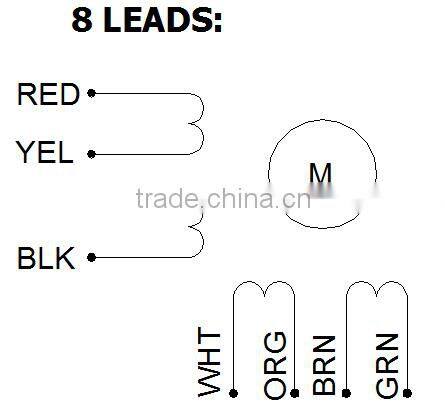

Wiring diagram of NEMA24 stepper motor
