Nema 17 Intergrated Stepper Motor With Driver for 3D Printer & CNC Hobbyist
US$ 5 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SOK
Model Number:
SOK42HM34-0956
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.8 57mm (NEMA23) Car Stepper MotorUS$ 14.4 - 20MOQ: 1 Piece -
1.8 57mm (NEMA23) Cnc Stepper Motor KitUS$ 14.4 - 20MOQ: 1 Piece
-
1.8 57mm (NEMA23) Hybrid Type Micro Stepping MotorUS$ 14.4 - 20MOQ: 1 Piece
-
1.8 57mm (NEMA23) Bag Making Machine Stepper MotorUS$ 14.7 - 20MOQ: 1 Piece
-
1.8 57mm (NEMA23) Double Shaft Stepper MotorUS$ 14.7 - 20MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
SOK
Model Number
SOK42HM34-0956
Phase
2
Type
Hybrid
Certification
CCC, CE, ROHS, Other, CCC, CE, ROHS, BV
Step Angle(degrees)
1.8 Degree
Holding Torque
1.58Kg.cm
Current / Phase
0.95A
Product Description
Description of stepper motor with driver
0.9 degree Size 42mm High Torque Hybrid stepper motor.
42mm size stepper motor ,
NEMA17 stepping motor,
Small stepping motors,
2 phase 42mm stepper motor
Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
42mm size stepper motor ,
NEMA17 stepping motor,
Small stepping motors,
2 phase 42mm stepper motor
Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
stepper motor with driver driver-SOK0220
1.DC power input type:12V~36VDC , AC power input : 23V~24V
2.Output current:0.3A-2.0A
Mircostepping:1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128
Pulse/rev: 200, 400, 800, 1600, 3200, 6400, 12800, 25600
3.Dimensions:96mm×60mm×24.5mm
4.Weight:<200g.
5.Working environment:Temperature-15~80
Typical application of stepper motor with driver
robots
advertising instrument
textile machinery
electronic automatic equipment
lighting& audio equipment
Cnc router
medical instrument
printer
Ambient condition
Ambient condition of stepper motor with driver
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2
Specifications

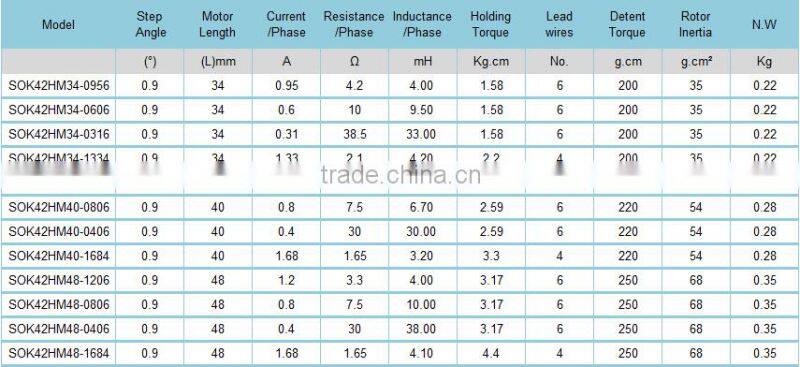

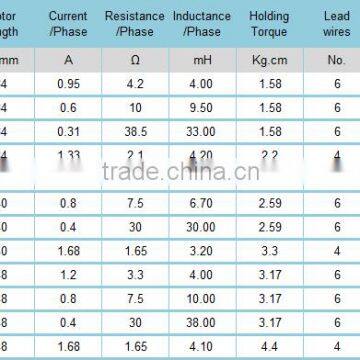

Electric motor parameter of stepper motor with driver
Note: The typical specifications below are just for your reference. Stepper motors can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

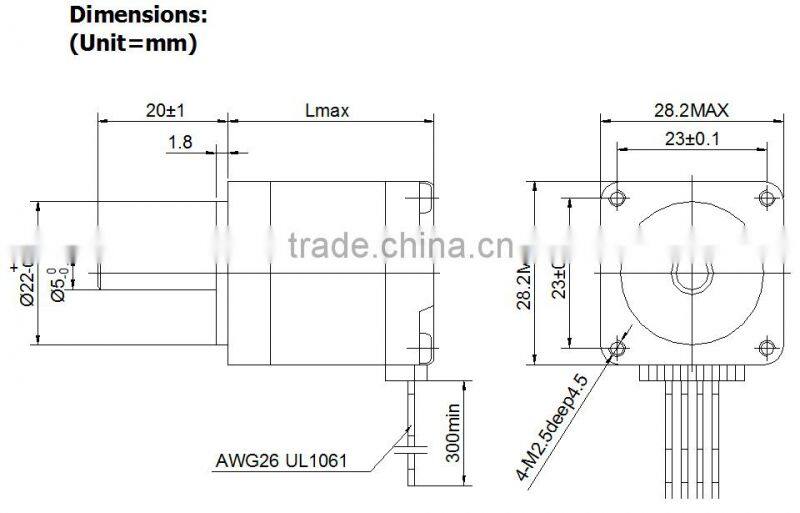

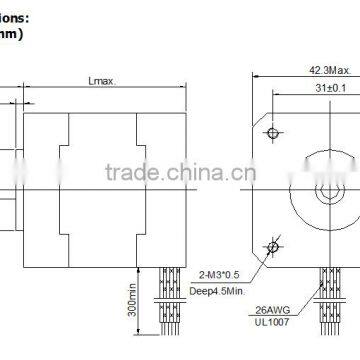

Outline drawing
Dimension of stepper motor with driver

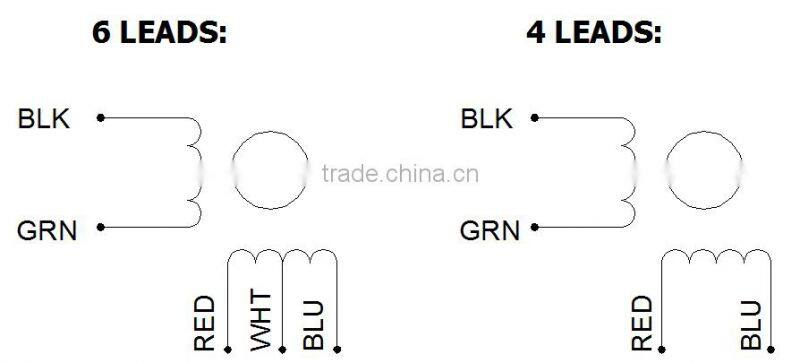

Wiring diagram of stepper motor with driver

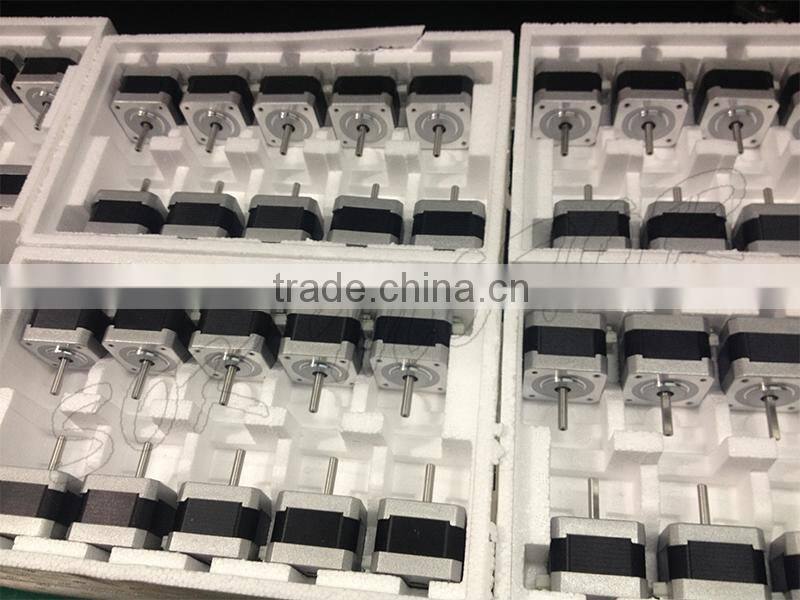

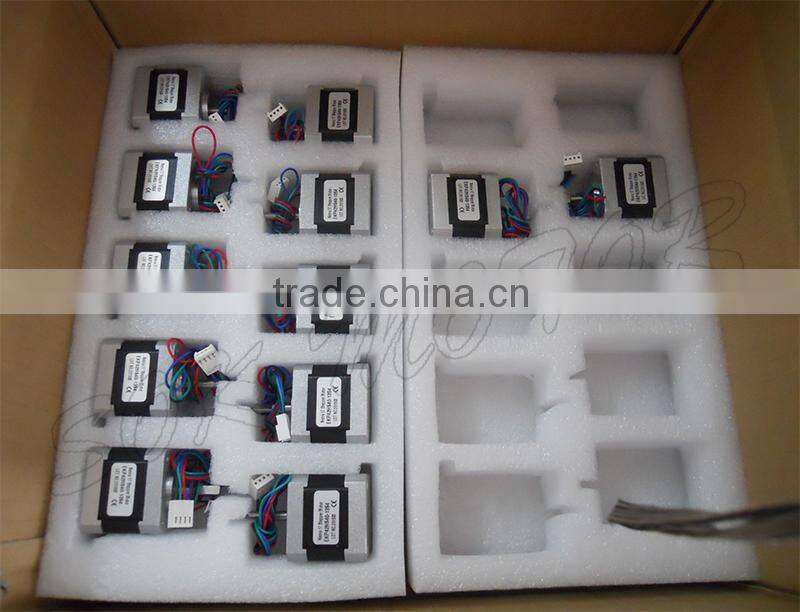

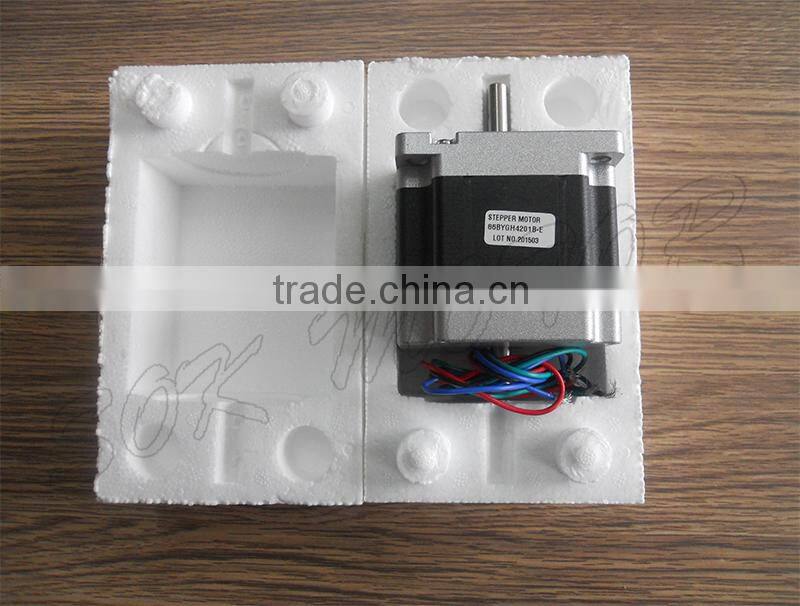

Packing detail of stepper motor with driver
Our service
Our Company

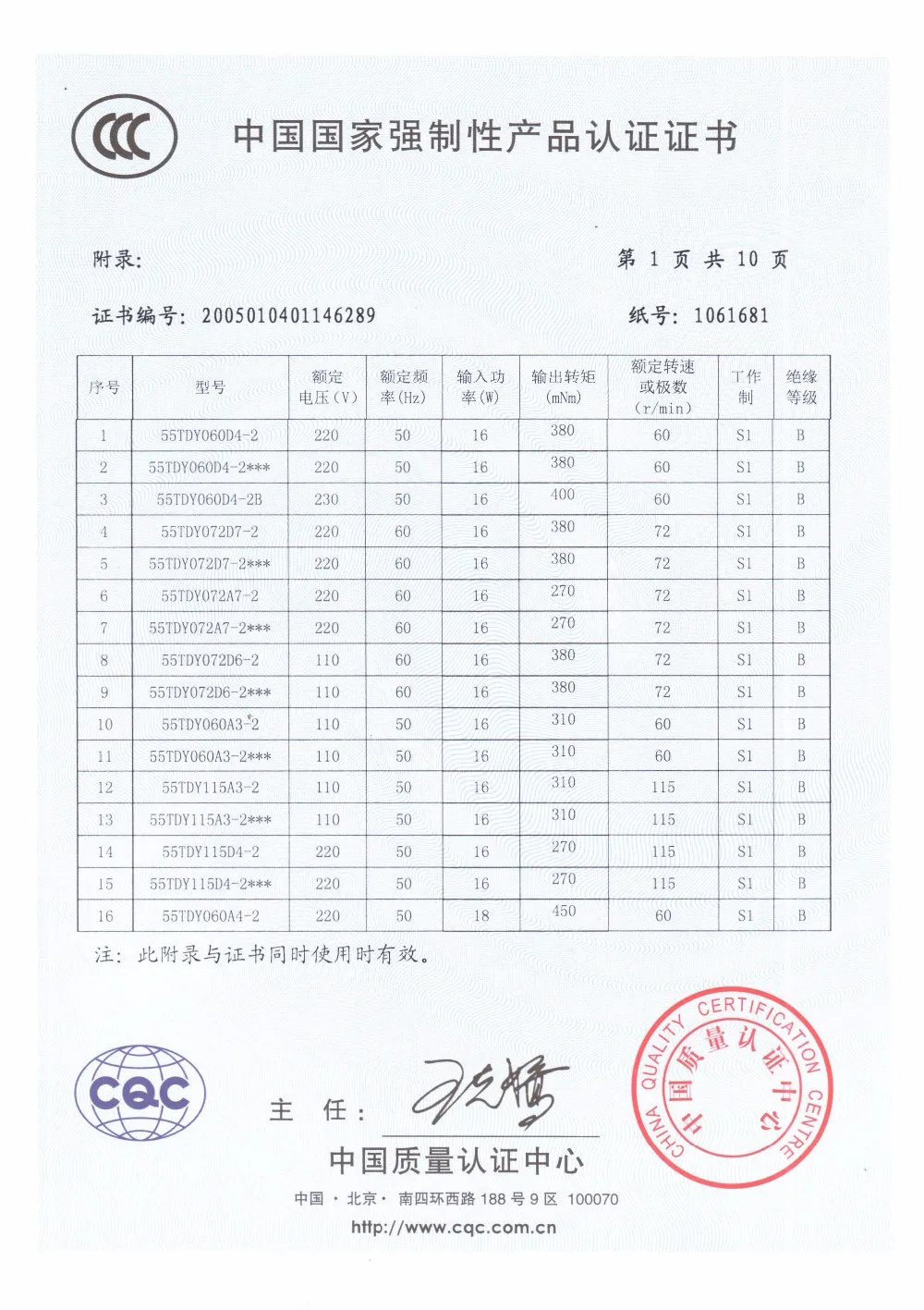

Certifications
Related Products

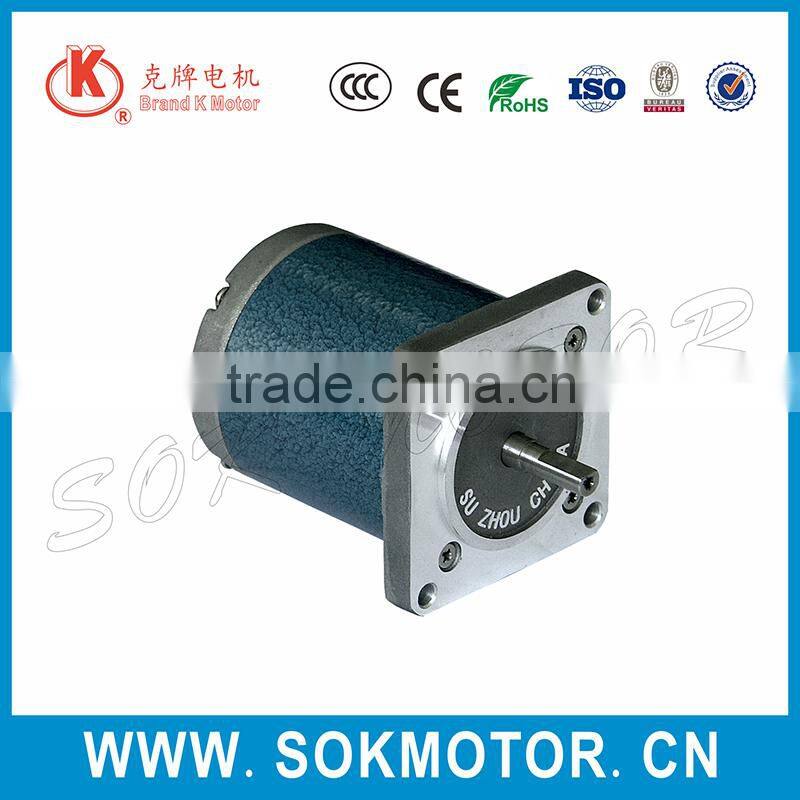

55mm High quality electric Ac Motor
