Low Cost DC 42mm Nema 17 Stepper Motor for Engraving Machine
US$ 5 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SOK
Model Number:
SOK42HS40-0806
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NEMA17 42mm 3D Printer CNC Stepper MotorUS$ 5 - 30MOQ: 1 Piece -
42mm 2 Phase 1.8 Degree NEMA17 Stepper Motor With Leads 4 for RobotsUS$ 5 - 30MOQ: 1 Piece
-
(NEMA42) Closed Loop Stepper Motor PriceUS$ 62.8 - 100MOQ: 1 Piece
-
21NM NEMA42 Linear Stepper MotorUS$ 91 - 100MOQ: 1 Piece
-
1.8 110mm (NEMA42)2 Phase Big Hybrid Nema Stepper MotorUS$ 116.7 - 120MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
SOK
Model Number
SOK42HS40-0806
Phase
2
Type
Hybrid
Certification
CCC, CE, ROHS, Other, CCC, CE, ROHS, BV
Step Angle(degrees)
1.8 Degree
Holding Torque
2.6Kg.cm
Current / Phase
0.8A
Product Description
Description of DC nema 17 Stepper motor
1.8 degree Size 42mm High Torque Hybrid stepper motor.
42mm size stepper motor ,
NEMA17 stepping motor,
Small stepping motors,
2 phase 42mm stepper motor
Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
42mm size stepper motor ,
NEMA17 stepping motor,
Small stepping motors,
2 phase 42mm stepper motor
Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version

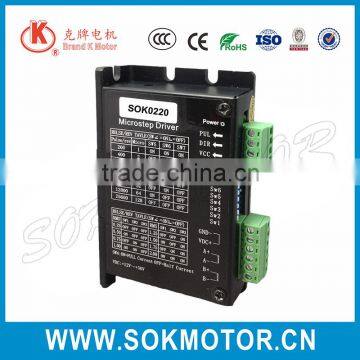

DC nema 17 Stepper motor driver-SOK0220
1.DC power input type:12V~36VDC , AC power input : 23V~24V
2.Output current:0.3A-2.0A
Mircostepping:1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128
Pulse/rev: 200, 400, 800, 1600, 3200, 6400, 12800, 25600
3.Dimensions:96mm×60mm×24.5mm
4.Weight:<200g.
5.Working environment:Temperature-15~80
Typical application of DC nema 17 Stepper motor
robots
advertising instrument
textile machinery
electronic automatic equipment
lighting& audio equipment
Cnc router
medical instrument
printer
Ambient condition
Ambient condition of DC nema 17 Stepper motor
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2
Specifications

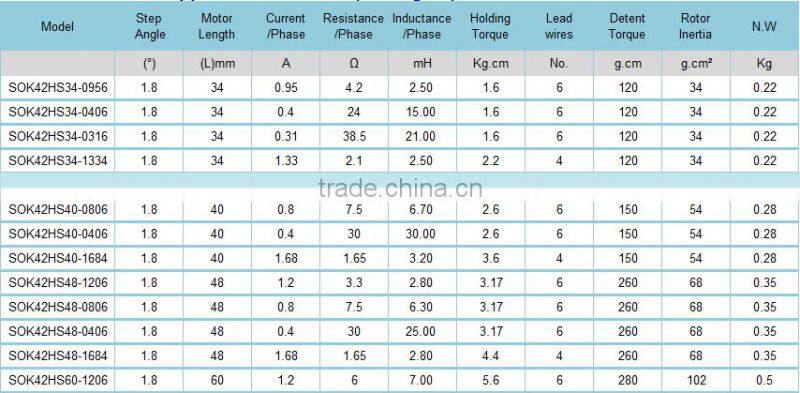

Electric motor parameter of DC nema 17 Stepper motor
Note: The typical specifications below are just for your reference. Stepper motors can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

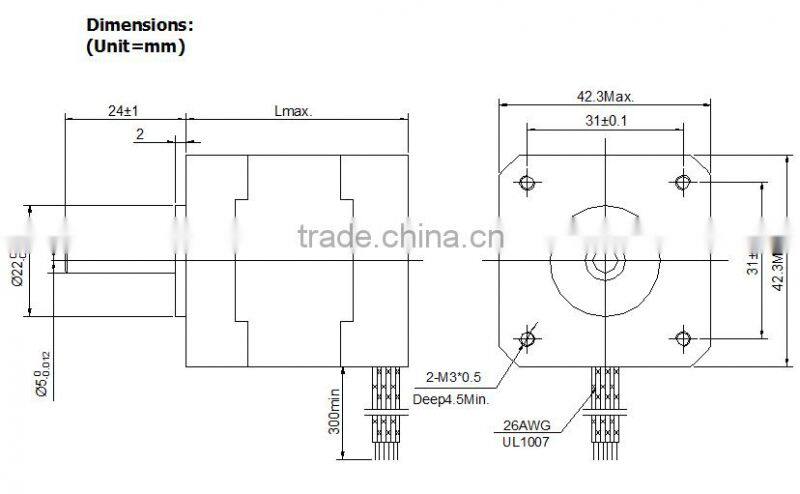

Outline drawing
Dimension of DC nema 17 Stepper motor
Wiring diagram of DC nema 17 Stepper motor
Packing detail of DC nema 17 Stepper motor
