Technology Specifications | |
Model |
DZ-1000 QF |
Machine Dimensions (mm) |
1520×1400×1260 |
Chamber Dimensions (mm) |
420×1080×160 |
Sealer Dimensions (mm) |
1000×8×2 |
Pump Capacity (m3/h) |
100 |
Power Consumption (kw) |
3 |
Voltage (V) |
220/380/415 |
Frequency (Hz) |
50/60 |
Production Cycle (times/min) |
2-3 |
G.W (kg) |
600 |
N.W (kg) |
550 |
Shipping Dimensions (mm) |
1640×1520×1480 |

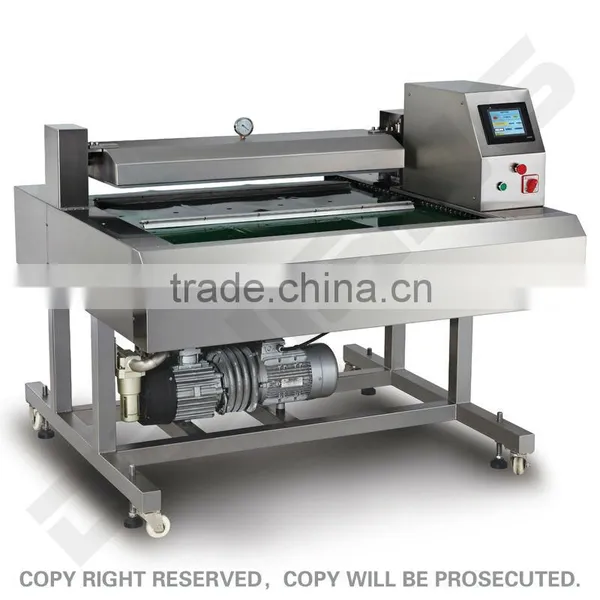

Automatic continuous type vacuum packaging machine continuously operation through the cylinder drive the rotation of the conveyor belt and applies to the product packaging of large productive enterprises. Depending on the different sizes of the contents,one or two sealers could be set within one vacuum chamber in order to improve the working efficiency.The workbench angle could be adjusted according to the features of contents.
Technical Characters:
1.Control System: OMRON PLC programmable control system and human-computer interface touch screen.
2.Material of Main Structure: 304 stainless steel.
3."V" lid Gasket: The "v" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.The compression and weraing resistance of the material extends the service life of the lid gasket and reduce its changing frequency.
4.Heavy Duty Casters(With Brake): The heavy duty casters(with brake) on the machine features superior load bearing performance,so that the user may move the machine with easy.
5.Electrical requirement and plug could be custom according to customer requirement.
6.Conveyor Belt: Dismountable conveyor belt is convenient for cleaning the machine.
7.Everible Lid: The eversible lid is convenient for the maintenance person to replace the components inside the lid easily.
