Home > Products > T-Connector > 3pins, Power,IP67, Mini Tee Waterproof Connectors

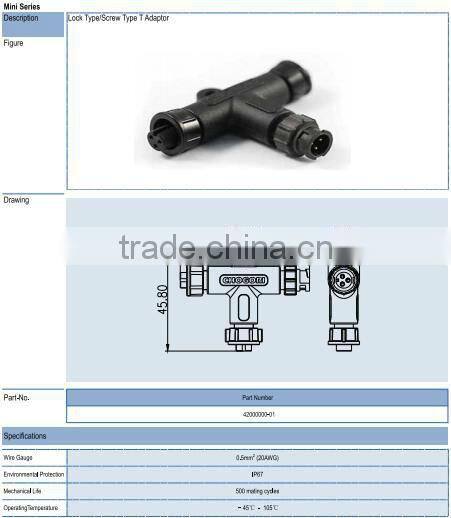

3pins, Power,IP67, Mini Tee Waterproof Connectors
- shenzhen
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CHOGORI | |
| Model Number | 42000000-01 | Type | Adapter | |
| Application | Power | Gender | Other, you can choose female or male |
Product Description
Specifications
(1)3pins(2) power Tee type waterproof adapters
(3)power waterproof adapter
(4)IP68 waterproof grade
Material
Connector Body: Nylon+GF UL94V-0 1/16"
Contact: Brass C2680 and C17200 4u"--20u" Gold Plated
Sealing: EPDM
RoHS CE
How to buy?
* confirming Current Rating and Number of Contacts
* confirming Connector and Contact Gender
* confirming Assembly Style
* confirming Mating Style
* confirming Cable OD Size
* Need Waterproof Cover?
Property
Contact Resistance :<10mΩ
Insulation Resistance :≥100 MΩ at DC500V
Breakdown Voltage :≥1000V/1Minute 2.5kV 1.0kV
Temperature Rating :-45~+105
Waterproof Rating :IP68 10m Water 2 weeks
Durability :≥ 3K Plug/Unplug Cycles
Our connectors can also be used in LED display, LED pixel light,LED tube light ,LED wall washer light,LED path light, LED pool light, LED tunnel light,LED panel ,LED liner.
Any questions and comments from you will be very appreciated here.
| Wire Gauge | 0.5mm2 (20AWG) | |||||||||||||||||
| Environmental Protection | IP67 | |||||||||||||||||
| Mechanical Life | 500 mating cycles | |||||||||||||||||
| OperatingTemperature | -45°C ~+ 105°C | |||||||||||||||||
