Help Center3+4pin Waterproof Connector
Related Products
Specifications
3+4pin waterproof connector1. Assembly and molding
2. IP67, IP68 waterproof
3. CE/UL/ISO/TUV

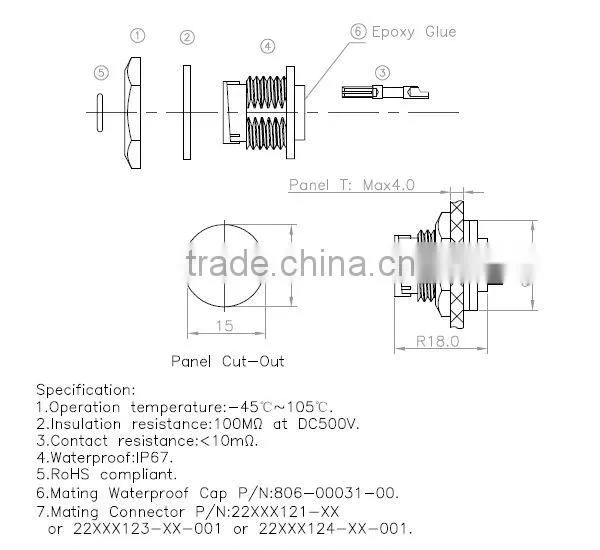

3+4pin waterproof connector
Standard series circular waterproof connector
1. Standard size provides universal application and good looking, used for varies industries
2. Screw, Lock bayonet and Push lock mating style
3. Assembly and molding type can be chosen upon different cable specification
4. Any cable length is available and terminal processing
5. Cable plug and panel receptacle can be chosen
6. Straight and right angled style
Material | |
Connector body: |
Nylon + GF UL94V-0 1/16" |
Plastic: |
PA66 &UV resistance |
Contact pin: |
Brass(gold-plated 4 u" -20u") |
Sealing |
Silica gel |
ROHS,CE Approved | |
Property | |
Contact Resistance |
<10mΩ |
Insulation Resistance |
≥100 MΩ at DC500V |
Breakdown Voltage |
≥1KV/1Minute |
Temperature Rating |
"-45°C~+105°C |
Waterproof Rating |
IP67&IP68 |
Durability(Plug and Insert) |
≥ 3K Plug/Unplug Cycles |
How to buy?
* confirming Current Rating and Number of Contacts
* confirming Connector and Contact Gender
* confirming Assembly Style
* confirming Mating Style
* confirming Cable OD Size
* Need Waterproof Cover?
Property
Contact Resistance :<5mΩ
Insulation Resistance :≥500 MΩ at DC500V
Breakdown Voltage :≥1000V/1Minute
Temperature Rating :-45~+105
Waterproof Rating :IP68 10m Water 2 weeks
Durability :≥ 3K Plug/Unplug Cycles
Our connectors can also be used in LED display, LED pixel light, LED tube light ,LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel ,LED liner.
If you want to know more about we Shenzhen Chogori Technology Co., Ltd or have
any inquiry, just enter our company's website. In the website, there are our phone number, Fax number and email address for you to use.
