Help Center8pin Connector
Related Products
Specifications

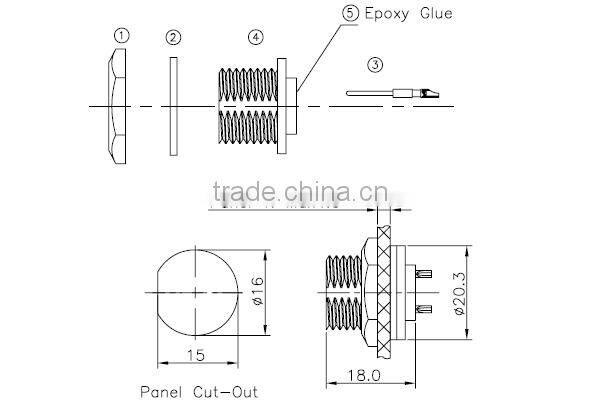

1. Standard series, panel mount2. 2p to 12p for 10A to 2A
3. Assembly and molding
4. IP67, IP68 waterproof
5. CE/UL/ISO/TU

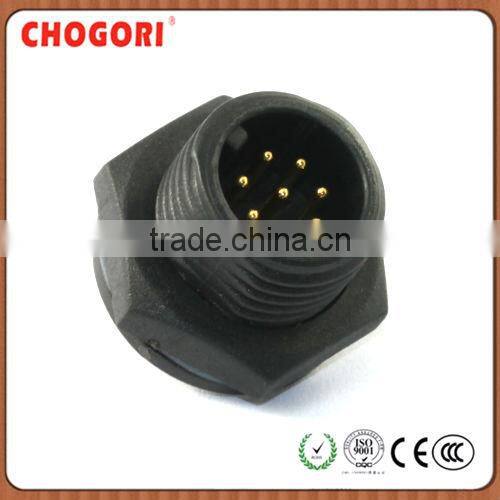

Standard series circular waterproof connector
1. Standard size provides universal application and good looking, used for varies industries
2. Screw, Lock bayonet and Push lock mating style
3. Assembly and molding type can be chosen upon different cable specification
4. Any cable length is available and terminal processing
5. Cable plug and panel receptacle can be chosen
6. Straight and right angled style
Material | |
Connector body: |
Nylon + GF UL94V-0 1/16" |
Plastic: |
PA66 &UV resistance |
Contact pin: |
Brass(gold-plated 4 u" -20u") |
Sealing |
Silica gel |
ROHS,CE Approved | |
Property | |
Contact Resistance |
<10mΩ |
Insulation Resistance |
≥100 MΩ at DC500V |
Breakdown Voltage |
≥1KV/1Minute |
Temperature Rating |
"-45°C~+105°C |
Waterproof Rating |
IP67&IP68 |
Durability(Plug and Insert) |
≥ 3K Plug/Unplug Cycles |
Send Inquiry to This Supplier
