Help CenterStandard 3 Pin Solar Panel, Chogori High Quality Rear Panel Mount Watertight Connector
Related Products
-
Standard 2pins Front Panel Mount, CHOGORI High Quality Push Lock Ip67 Waterproof ConnectorNegotiableMOQ: 500 Pieces -
5pins Male Plug With Male Pins,push Lock Type, CHOGORI High Quality IP68 Waterproof Cable ConnectorNegotiableMOQ: 500 Pieces
-
5pins 19mm Data Screw Type, Ip68 Waterproof ConnectorsNegotiableMOQ: 500 Pieces
-
Standard 2pins Front Panel Mount, Push Lock Ip67 Waterproof ConnectorNegotiableMOQ: 500 Pieces
-
5pins Male Plug With Male Pins,push Lock Type, IP68 Waterproof Cable ConnectorNegotiableMOQ: 500 Pieces
Specifications
A. The waterproof rating is IP67B. 3 types can be choose: screw type, lock bayonet type
C. UL,CE,ROHS
The advantage of our connector
1. Push lock type can be butt joint easily and reliable
2.100% in house manufacturing ready for customized service
3. RoHS compliant with Safety approval
4. We can produce connector with contact number from 1 to 24, it's all deopends on custome's request
5. The degree of protection can be IP65,IP66,IP67,IP68
6. Field installable and molding with cable for customer's choice
7. We test our connector many times during our producing to guarantee the quality of our connector
8. We provide 50,000 sets waterproof connectors using on the Opening Ceremony at the Shanghai 2010 World Expo with its 6,000 sq.m huge LED screen , We have provided more than 25,000 sets waterproof connector for the Dream scroll of 2008 Beijing Olympic Game at the opening ceremony
Item |
Description |
Detail |
1 |
Connector Size |
Standard |
2 |
Current Rating |
10A |
3 |
Rate Voltage |
300V |
4 |
Contact Number |
3 |
5 |
Connector Gender |
Panel mount |
6 |
Assembly Style |
Solder |
7 |
Mating Style |
Lock bayonet |
8 |
Backs Hell |
circular |
9 |
Waterproof Rating |
IP67 |
10 |
Wire Gauge |
18AWG |
|
Material: Insulator: PVC Contacts: Brass 4U”-20U” Gold plated Sealing: Silicone CE, UL, ROHS | ||
|
Property: Contact Resistance: <5mΩ Insulation Resistance: ≥500MΩat DC 500V Breakdown Voltage:≥2.5KV normal, 1.5KV water Temperature Ration: -45°C-105°C Durability: 3000 cycles | ||
|
Our connectors are widely used in: u LED u Street light u Automotive u Power supply u Electric vehicle u Marine electron u Actuating motor u Medical equipment u Wireless communication | ||
The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)

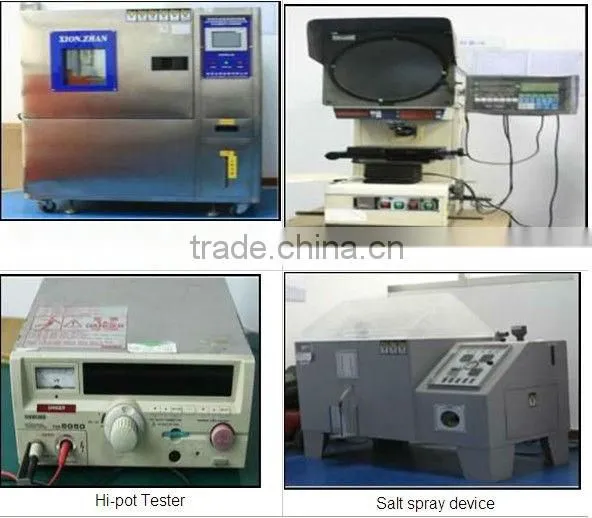

The test equipment of our company
