Home > Products > AC Axial Fans > 220V 300mm High Volume ac Tube Axial Fan

220V 300mm High Volume ac Tube Axial Fan

FOB Price

US$ 7 - 73 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Blade Material	Other, steel
Place of Origin	Jiangsu, China	Brand Name	SOK MOTOR- high volume ac tube Axial Fan
Model Number	300FZY2WY/ZS7-2- high volume ac tube Axial Fan	Voltage	220V
Air Volume	40m³/min	Speed	2500RPM
Certification	CCC, CE, ROHS, Other, CCC, CE, ROHS, BV

Product Description

Description of high volume ac tube Axial Fan

The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.

Typical application of high volume ac tube Axial Fan

Computer systems

Office automatic equipments

Ground-based auto-controlling system
Medical apparatus

Electric instruments

Welding machines

Ambient condition

Ambient condition of high volume ac tube Axial Fan

1.Temperature:-25℃～ +40℃；

2.Relative humidity:90%～ 95%；

3.Atmospheric pressure :55KPa（4000m);

4.Vibration:10～55Hz, double amplitude 1.5mm;

5.Impact: 150m/s²

Specifications

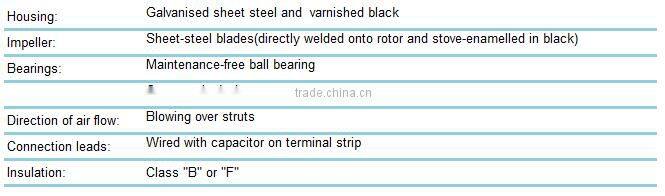

Material of high volume ac tube Axial Fan

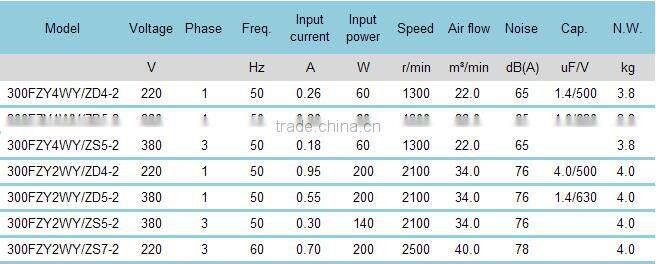

Electric motor parameter of high volume ac tube Axial Fan

Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing

Dimension of high volume ac tube Axial Fan

Our service

Our Company

Certifications
