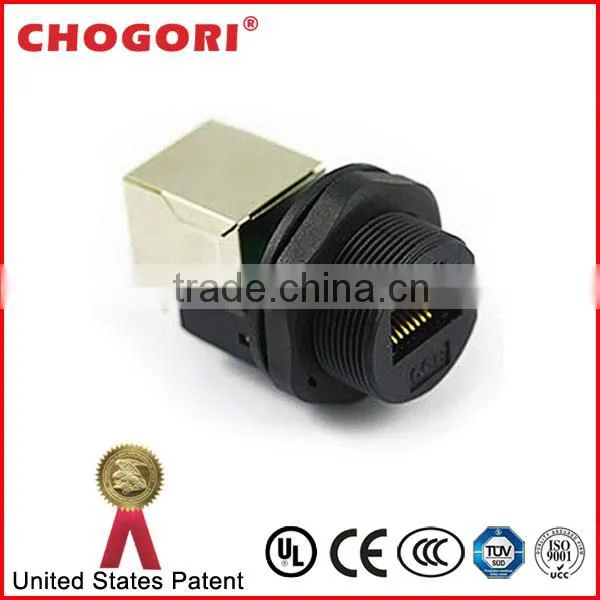

RJ45 waterproof connector IP67 Rated
Screw type and lock bayonet type and solder type mating style
Assembly and molding type can be chosen upon different cable specification
Any cable length is available and terminal processing
Cable plug and panel receptacle can be chosen
Snap-in waterproof system with perfect appearance
Your samples and drawings are warm welcomed
Fulfilling different kinds and quantities of order to provide
Prompt delivery and excellent after service
Good quality & Competitive price & High efficiency
Material
|
Connector Body
|
Nylon+GF UL94V-0 1/16” |
|
Contact
|
Brass, 4u"--20u" Gold Plated |
|
Sealing Material
|
Silica gel |
|
Certificate
|
VDE ROHS CE CCC UL TUV |
Property
|
Panel Thickness
|
Max: 4.0mm |
|
Wire Gauge
|
24AWG/0.205mm² |
|
Cable Range
|
4.0-7.0mm |
|
Degree of Protection
|
IP67 |
|
Machanical Operation
|
>3000 mating times |
|
Temperature Rating
|
-45°C~+105°C |
|
Speed
|
480Mbps |
|
Rated Current (40°C)
|
1.5A |
|
Divisional Color
|
Black |
|
Type
|
Waterproof connector |
|
Brand Name
|
Chogori |
|
Contact resistance
|
≤10mΩ at 2mA Max. |
|
Insulation resistance
|
≥10MΩ /0.01second DC 500V |
|
Breakdown Voltage
|
500V(AC)/0.01second |
Mating parts:
RJ45 plug : 33000000-03
Packing details
Lean manufacturing line panorama: high standard lean manufacturing line
Picture of workplace
