Help Center12poles Power and Data Hybrid Waterproof Connectors
Related Products
-
18pin Waterproof ConnectorUS$ 1 - 5MOQ: 200 Pieces -
Large 3+11 Pins Panel Mount Power Waterproof ConnectorUS$ 1 - 5MOQ: 500 Pieces
-
Waterproof Plug and Socket With 3 PinUS$ 1 - 5MOQ: 200 Pieces
-
Ip67 3pin Waterproof ConnectorUS$ 1 - 5MOQ: 200 Pieces
-
3pin Waterproof Electrical ConnectorUS$ 1 - 5MOQ: 200 Pieces
Specifications
20+5A , 12pins male plug, 3+9poles power and signal waterproof cable connectors,IP68 waterproof grade,CE3+9pins for 20A+5A power and data hybrid connector, IP67, UL certificate
Lock bayonet and push lock mating type for choice.
Different colors.

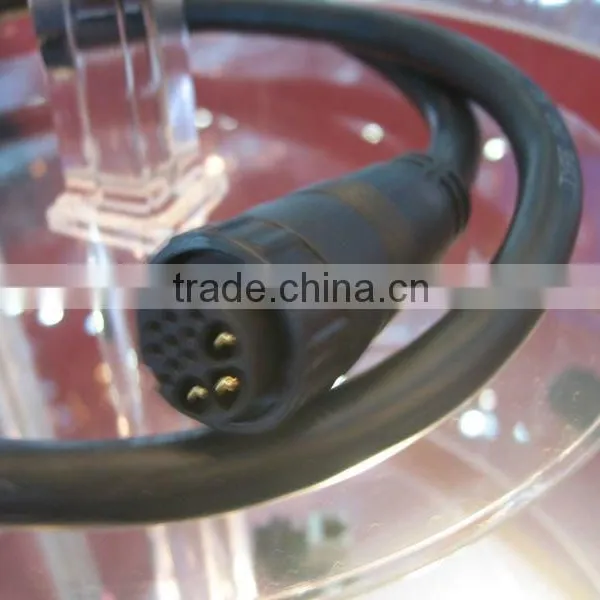

Large 12poles power and signal waterproof cable connectors(lock or screw mating style)
Material
Connector Body: Nylon+GF UL94V-0 1/16"
Contact: Brass C2680 and C17200 4u"--20u" Gold Plated
Sealing: EPDM
RoHS CE
How to buy?
* confirming Current Rating and Number of Contacts
* confirming Connector and Contact Gender
* confirming Assembly Style
* confirming Mating Style
* confirming Cable OD Size
* Need Waterproof Cover?
Property
Contact Resistance :<10mΩ
Insulation Resistance :≥100 MΩ at DC500V
Breakdown Voltage :≥1000V/1Minute 2.5kV 1.0kV
Temperature Rating :-45~+105
Waterproof Rating :IP68 10m Water 2 weeks
Durability :≥ 3K Plug/Unplug Cycles
Our connectors can also be used in LED display, LED pixel light,LED tube light ,LED wall washer light,LED path light, LED pool light, LED tunnel light,LED panel ,LED liner.
Any questions and comments from you will be very appreciated here.
