29mm 3pins+9sockets Power and Data Male Hybrid Waterproof Connector
US$ 0.5 - 5
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chogori
Model Number:
24309XXXX
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
29mm Power and Data Male Hybrid Waterproof ConnectorUS$ 0.5 - 5MOQ: 500 Pieces -
25.4mm Hole Power and Data Hybrid Panel Waterproof ConnectorUS$ 0.5 - 5MOQ: 500 Pieces
-
20A+5A Power and Data Hybrid Panel Waterproof ConnectorUS$ 0.5 - 5MOQ: 500 Pieces
-
29mm Power and Data Hybrid Waterproof ConnectorUS$ 0.5 - 5MOQ: 500 Pieces
-
3+11pins Power and Signal Panel Mount ConnectorUS$ 1 - 3MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
Chogori
Model Number
24309XXXX
Application
Power
Gender
Male
Specifications
(1) power and signal waterproof connector(2) 20A+5A,3+9pins,29mm
(3) IP68,IP67
(4) ROHS,CE,CCC, UL
(5) hybrid connector

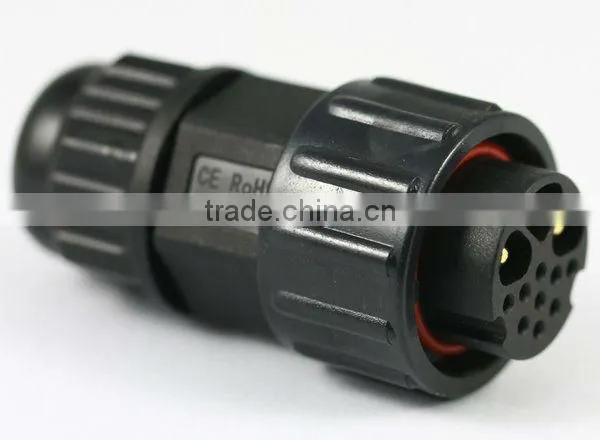

Large series 29mm 3pins+9sockets power and data male hybrid waterproof connector :
1. High 20Amp power transmission and data hybrid waterproof connector.
2. screw ,lock bayonet and push lock mating style to provide much different field installation method
to meet various demands
3. Field installation and overmolding version can be chosen
4. black, blue and yellow color for option
5. Solder and screw terminals or PCB pins style for option
6. Any cable length is acceptable
7. Cable plug and panel recepatcle to choose
8. more than 3000times insert and withdraw life span
9.Small size making better looking.
10. CE, CCC, UL certificate approved.
| Specifications | ||||||||||||||||||
| Number of Contacts | 2 | 3 | 4 | 5 | 6 | 6(2+4) | 8(2+6) | |||||||||||
| Wire Gauge | 0.823mm²(18AWG) | 0.519mm²(20AWG) | 0.823mm²(18AWG)*2C 0.34mm²(22AWG)*4C |
0.519mm²(20AWG)*2C 0.34mm²(22AWG)*6C |
||||||||||||||
| Cable Range | 3.5-6.8mm | |||||||||||||||||
| Degree of Protection | IP68 | IP67 | IP67 | |||||||||||||||
| Machanical Operation | >3000 mating cycles | |||||||||||||||||
| Lower-Upper Temperature | -45°C~+105°C | |||||||||||||||||
| Rate Voltage | 250V | 250V | 125V | 60V | 60V | 60V | 30V | |||||||||||
| Rated Current (40°C) | 10A | 10A | 10A | 5A | 5A | 10A+2A | 5A+2A | |||||||||||
