Large 3P lock bayonet IP67 waterproof connector,Chogori high quality Nylon connector,20amp high current watertight connector
- 100 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CHOGORI | Model Number: | 24003625-01 |
Type: | Other, Power | Application: | Other, Power&LED display&Electronical equipments&Communications | Gender: | Other, panel mount |
Product Description
Specifications
1.VDE, CE, ROHS, CCC, UL, TUV Certification2.Waterproof IP67
3.Current rating:20A
4.Voltage rating:250V
5.Customized
3Pins waterproof connector IP67 Rated
Plug and Socket, to be used in LED lighting&Communications&Marine electron&Actuating motor and equipments
Waterproof Grade: IP67 for 2P,3P,9P,18P,3+9P,3+11P in Large series
Screw type and lock bayonet type and push lock type mating style
Assembly and molding type can be chosen upon different cable specification
Any cable length is available and terminal processing
Cable plug and panel receptacle can be chosen
Straight and right angled style
Snap-in waterproof system with perfect appearance
Your samples and drawings are warm welcomed
Fulfilling different kinds and quantities of order to provide
Prompt delivery and excellent after service
Good quality & Competitive price & High efficiency
Material
Connector Body
| Nylon+GF UL94V-0 1/16” |
Contact
| Brass, 4u"--20u" Gold Plated |
Sealing Material
| Silica gel |
Certificate
| VDE ROHS CE CCC UL TUV |
Property
Number of Contacts
| 3pins |
Wire Gauge
| 12AWG/3.31mm² |
Cable Range
| 4.5-6.5mm for thin sealing nut,6.5-10.5mm for thick sealing nut |
Degree of Protection
| IP67 |
Machanical Operation
| >3000 mating times |
Temperature Rating
| -45°C~+105°C |
Rated Voltage
| 250V |
Rated Current (40°C)
| 20A |
Divisional Color
| Black |
Type
| Waterproof connector |
Brand Name
| Chogori |
Contact resistance
| ≤10mΩ at 2mA Max. |
Insulation resistance
| ≥10MΩ /0.01second DC 500V |
Breakdown Voltage
| 500V(AC)/0.01second |
Mating parts:

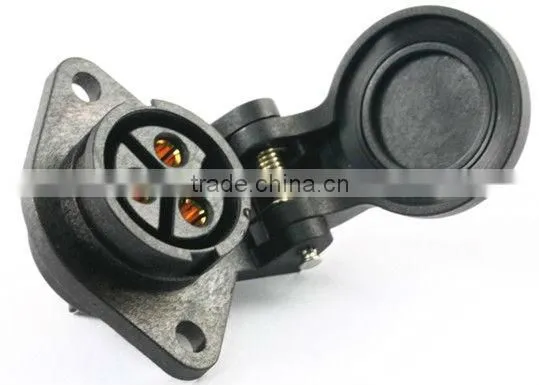

Installabel:

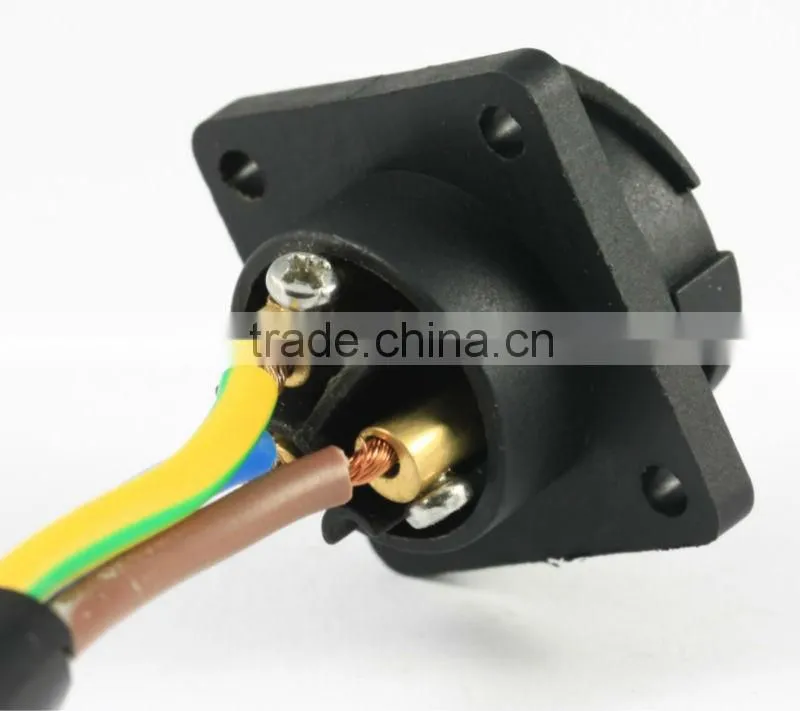

Panel mount with cabel:

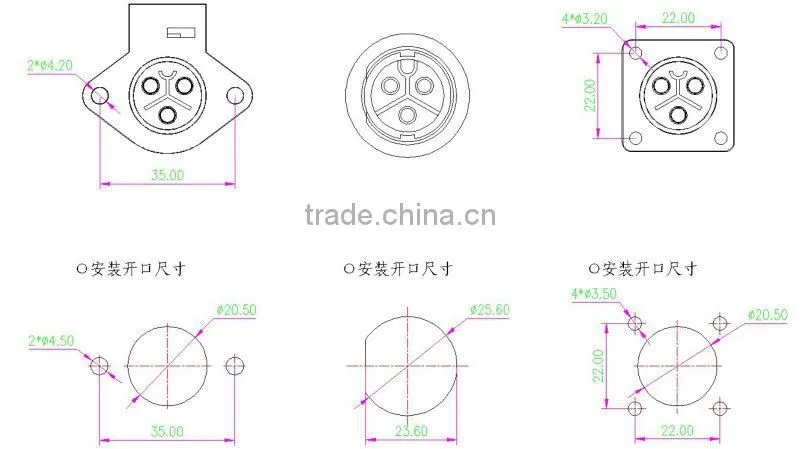

Drawings:
Packing details
Lean manufacturing line panorama: high standard lean manufacturing line
Picture of workplace
