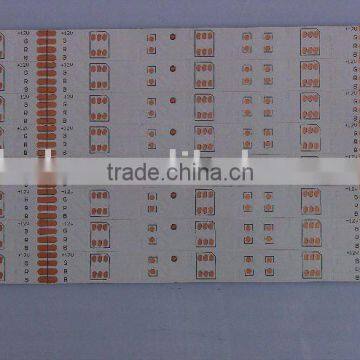

Help CenterHOT SALES! LED Lighting 5050-30 FPC
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HZ
Model Number:
LED 5050-30 FPC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED FPC, Flexible FPC Strip, Soft PCB for LEDUS$ 1 - 10MOQ: 10 Pieces -
Led Strip FPCUS$ 1 - 10MOQ: 10 Pieces
-
LED STRP LIGHT FPCUS$ 1 - 10MOQ: 10 Pieces
-
Factory Price Led Display Panel Led Panel 60x60US$ 15.38 - 20MOQ: 1 Piece
-
2x4 Led Panel Light 600x600, Led tv PanelUS$ 15.38 - 20MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
HZ
Model Number
LED 5050-30 FPC
Base Material
PI, RA
Copper Thickness
0.5oz/1.0oz/2.0oz
Board Thickness
0.3mm
Min. Hole Size
0.3mm
Min. Line Width
0.075mm
Min. Line Spacing
0.075mm
Surface Finishing
ENIG
Specifications
copper thickness:35umSurface treatment:Nickel plating
Width/Length:0.076/0.076mm(3/3mil)
Certificate : UL, ISO, SG
1.led pcb board
2.2-layer FPC with stiffener
3.Delivery: In Panel form
4.FCCL: 1 oz RA copper plus 1mil PI and 20um adhesive
5.Stiffener: Polyimide
6.Double side tape: 3M966
7.Thickness: 0.3mm
8.Minimum conductor width/space: 3mils/3mils (0.075mm/0.075mm)
9.Surface treatment: ENIG (Au: 2u'')
10.RoHS compliant
FPC capability:
No. Of layer: 1-6
Large size of circuit: 250.00X400.00
Board thinckness: 0.085-0.4mm
Hole Diameters: 0.25mm-6.50mm
Base Copper Wt.: 12um-70um
PI Thickness: 12.5-50um
Stiffener: PI, PET, FR4 and Metal
Au Thickness of Plating gold: ≥ 0.05μm
Au thickness of ENIG: 0.05um-0.1um
Outline Tolerance: ± 0.1mm
Surface Treatment: ENIG, HAL, Gold Plating Immersion Tin etc.
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2009
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
