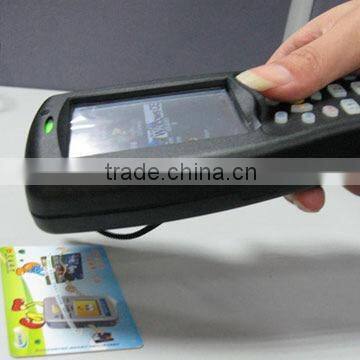

Help CenterRFID Mobile Handheld Reader
Related Products
-
Mobile Credit Card ReaderUS$ 1.121 - 29MOQ: 1 Piece -
Credit Card Reader for Mobile DevicesUS$ 1.2 - 29MOQ: 1 Piece
-
Mobile Credit Card Reader for IPhoneUS$ 1.9 - 29MOQ: 1 Unit
-
Mobile Credit Card Reader WriterUS$ 0.99 - 29MOQ: 1 Piece
-
Smallest Phone Credit Card Reader for MobileUS$ 1.23 - 29MOQ: 1 Piece
Specifications
1.RFID&Barcode Handheld Reader
2.Support UHF/HF/LF/1D Barcode/2D Barcode
3.Standard: ISO 18000-6A/6B/6C, EPC Class 0/1(GEN2)
4..Windows CE OS
UHF RFID Handheld Reader
Features
* Rugged and All-In-One Industrial Design
* Passes Drop Tests, with Integrated Antenna and IP54 Sealing
* Windows CE 5.0 OS Increases Interoperability
* Supports 1D/2D Barcode Scanning, and HF/UHF RFID Reading
* Integrated GSM/GPRS, Wifi, Bluetooth,GPS
* Supports 802.1x and CISCO CCX2/3
* High-definition VGA Display
* Robust Memory Space, 128Mb RAM and 128Mb ROM
* Integrated Chinese Handwriting Recognition
* Best ROI
Linear 1D Barcode Scanner
Supports UPC-A,UPC-E, EAN-13,/JAN-13, EAN-8/JAN-8, CODE 39, CODE 128,
CODABAR/NW7,Interleave 2/5, Industrial 2/5, Matrix 2/5, CODE 93, CODE 11,
China Postage, MSI/PLESSEY.
2D CCD Barcode Scanner
Supprots QR Code, PDF417, Data Matrix, Micro QR Code, Micro PDF417,
Aztec Code
Integrated LF 125kHz RFID Reader
Standard Supported: 125kHz / 134kHz, EM4100/EM4200/
Operating Frequency: 134KHz
Reading Distance:0-5cm
Integrated HF RFID Reader
Standard Supported: ISO-14443A/B, ISO-15693, ISO-18000-3
Operating Frequency: 13.56MHz
Reading Distance:0-10cm
Integrated UHF RFID Reader
Standard Supported: ISO 18000-6A, ISO 18000-6B, ISO 18000-6C, EPC Class 0, EPC Class 1 (GEN2)
Operating Frequency: 862 MHz-955 MHz
Reading Distance: 10-80cm(Passive Tag)
PERFORMANCE CHARACTERISTICS
Data capture options: 1D linear,2D imager, HF/UHF RFID Reader
External interfaces RS232, USB 1.1
Memory (Flash/RAM) 128MB RAM; 128MB Flash
Operating system (OS) Microsoft Windows CE 5.0 Professional
Processor (CPU) Samsung 400MHz processor
PHYSICAL CHARACTERISTICS
Audio options: Speaker, Microphone, Headset Jack
Dimensions: 19.0cmX8.5cmX4.5cm
Display: Transflective color 3.5” full VGA with backlight, 320 x 240
Display type: LED backlight, touch screen
Keyboard: 26-key Alphanumeric
Network connections: Full-speed USB, host or client
Weight Standard:400g with battery
POWER
Main battery Rechargeable Lithium Ion 3.7V, 3200 mAh Smart Battery
REGULATORY SPECIFICATIONS
CE CCC
Environmental: RoHS-compliant
USER ENVIRONMENT
Drop specification: 1.2m drop to concrete
Environmental sealing IP54
Humidity 95% non-condensing
Operating temperature: -10C to 50C
Storage temperature -20C to 60C
WIRELESS DATA COMMUNICATIONS
WLAN: 802.11b/g
Security: supports 802.1x and CISCO CCX2/3
Antenna: Internal
WAN
GSM/GPRS Class 10, GSM27.10 Multiplex
Antenna: Internal/External
Bluetooth: Class1.1
Antenna: Internal
GPS
Satellite Receiver: 20 Channels
Accuracy: 10m
Antenna: Internal
Notes: For bulk order and special discount request, pls feel free to contact us for long-term partnership discount.
