SK Vertical Paint Bead Mill
- Shanghai Zhangjiagang
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Sand Mill | |
| Product Type | Paint | Place of Origin | Jiangsu, China | |
| Brand Name | Kaixin | Model Number | KWS-25 | |
| Voltage | Customized | Power(W) | 5.5-30KW | |
| Certification | CE/ISO9001, CE/ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

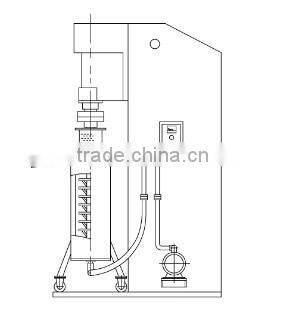

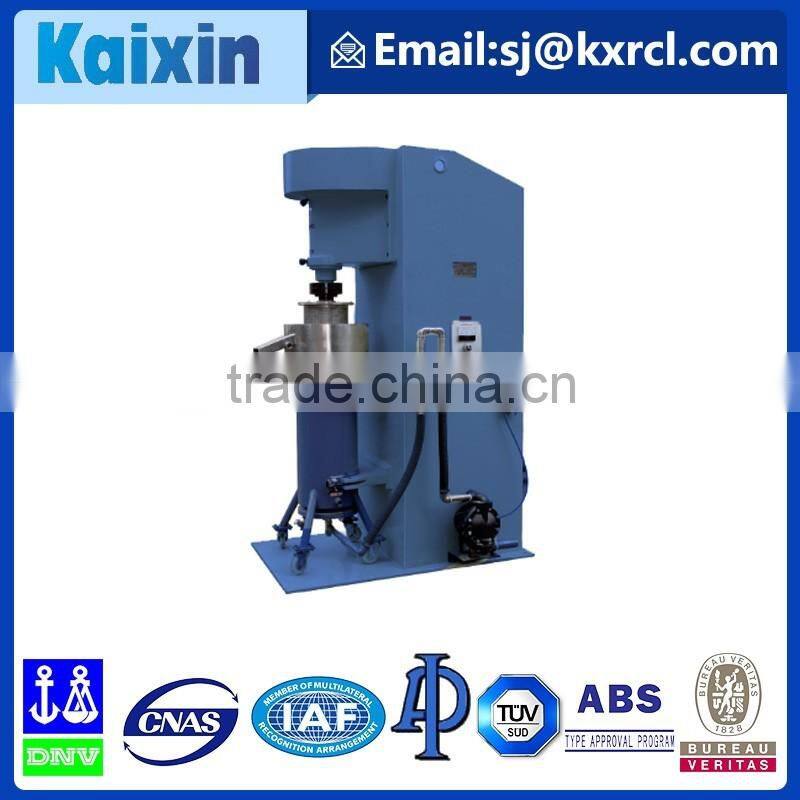

SK Vertical paint bead mill
Click the image below ↓for video
CE Certified
Vertical bead
Grinding chamber:10,20,40,80L
Discharge port:sieve
Feeding pump:gear pump or diaphragm pump
It is applicable for wet grinding and dispersion of liquid-solid materials in paint, dye, pigment, printing ink, pesticide and papermaking industries. It characterizes continuous production, high efficient grinding and dispersing, high quality output, optimized configuration, easy color changing, and convenient operation and maintenance.
Model | SK10-1 | SK20-1 | SK40-1 | SK80-2A |
Chamber volumn(L) | 10 | 20 | 40 | 80 |
Main motor power(KW) | 5.5 | 11 | 18.5 | 30 |
Dispersing shaft speed(r.p.m) | 1440 | 1320 | 1020 | 830 |
Output Capasity(L/h) | 80-200 | 150-400 | 300-700 | 500-1200 |
Mill weight(KG) | 550 | 1000 | 1500 | 2000 |
Can be customized according to customer’s requirement | ||||
1. Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.
2. Operating video& Instruction will be sent to clients to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year around.
Hope you are our next customer
