Model No.: CW09-4-MF2

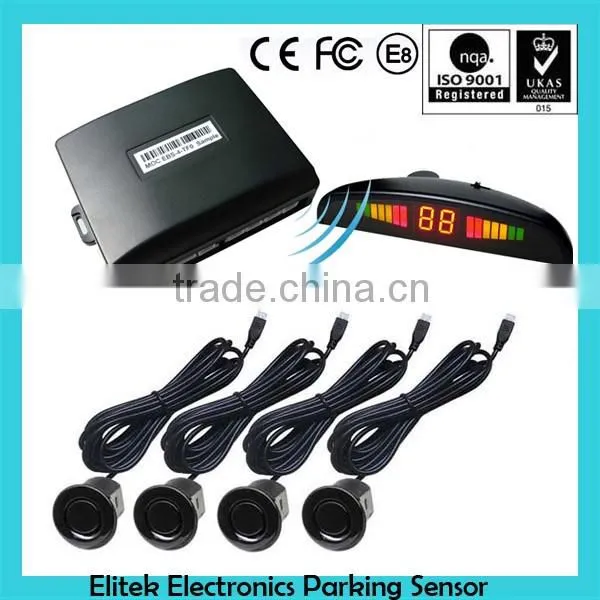

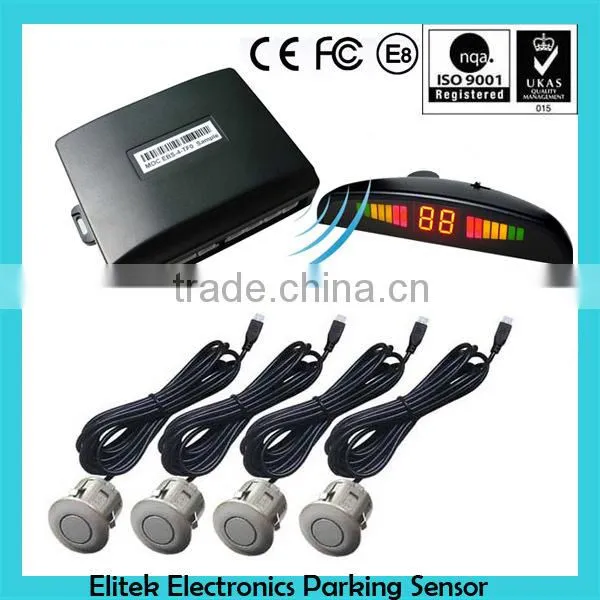

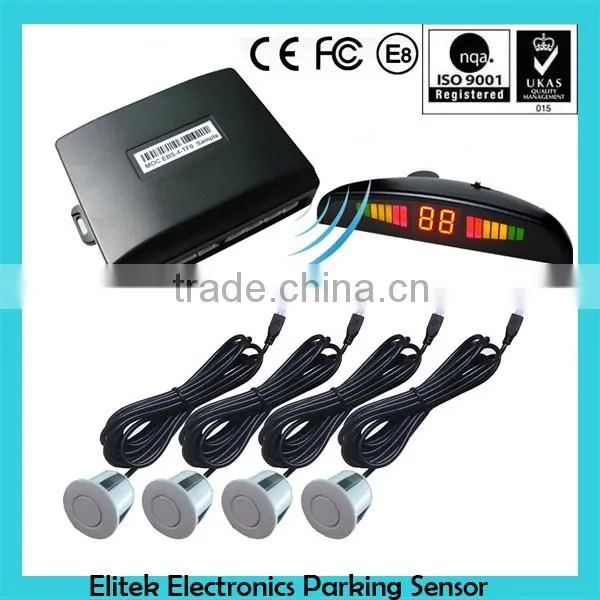

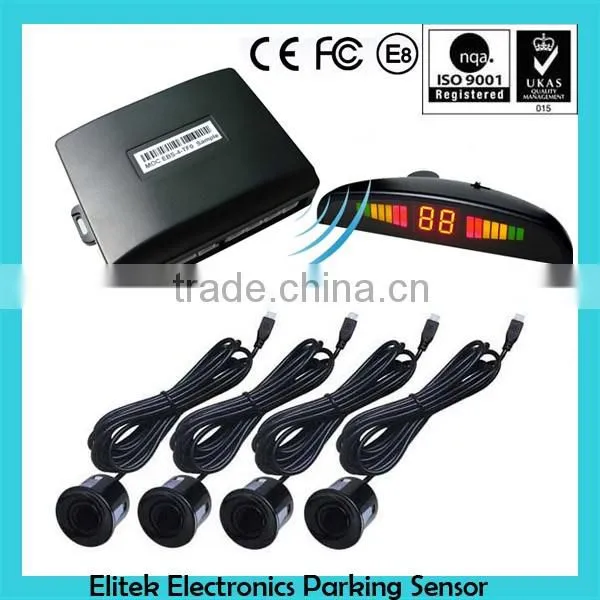

1) Wireless Car Rear 4 Parking Sensor System , fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Display range: 40cm~2.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;
6) 4*MF2 single angle sensor, 21.5mm plastic flat, 2.5m cable;
7) Precision accuracy: CM;
8) Wireless technology, RF frequency: 433MHz;
9) DSP09w RF display, 3 Color LED 2 Channel w/ Buzzer "ON-OFF" switch optional & Digital Readout;
10) Power Input: 9.6~15V DC.
Detailed Specification:
Application |
General Car, SUV |
| Function | Ultrasonic wave detected obstacle when car is reversing. |
| Voltage | DC 12V-24V |
| Operating current | 150mA |
| Operating temperature | -20 to +80 °C |
| Operating frequency | 39.3 to 40.7 KHz |
| Sensor Horizontal detection angle | 120 ° |
| Sensor Vertical detection angle | 60 ° |
| Distance detection accuracy | 1 cm; dm available |
| Sensor Detection range | 0cm-2.5m |
| Buzzer sound volume | 75-105 dB |
| RF Frequency | 433 MHz |
| Sensor Eye | 4 sensors |
| Sensor cable | 2.5m pure copper cable |
| Sensor Color | customized color ≥200 set for one color |

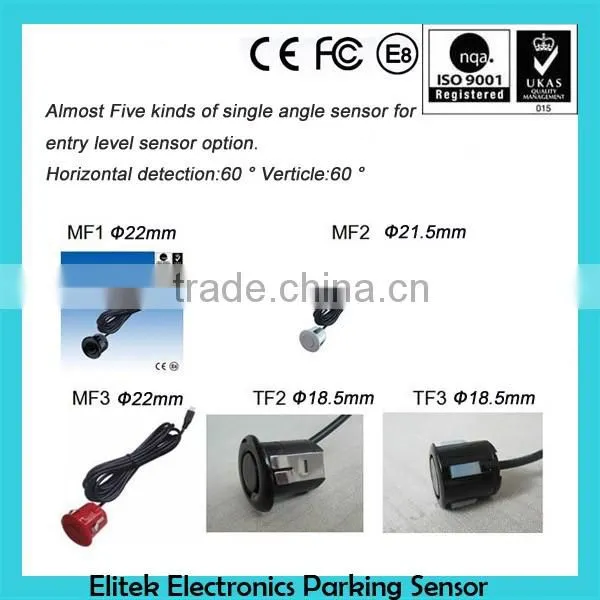

| Sensor Option | MF1, MF1,MF2,MF3, TF2, TF3 |
| Buzzer Option | BUZ01: 'High-Low-Off' switch to adjust volume; BUZ02: fixed volume alam |
| Warranty | 1 year |
| Sample | Available |
|
Wholesale business |
Small order wholesales is avaiable, retail business is not available |
| Delivery Date | 15-25 working days after payment receipt |
| Trade Term | EXW, FOB, CIF, available |
| Payment | Paypal, TT, Western Union, L/C |
| | |
Founded in 2003, Shenzhen Elitek Electronics Co., Ltd. is specialized in the developing, designing and manufacturing of parking sensor system. Our talented engineers & skilled workers have more than 10 years of design & manufacturing experience in transducers, sensors and electronic control unit (E.C.U.) as well as the entire system, which ensures our parking sensors system always in high quality & most reliability.
We hold the belief of "Best quality, Best service" in Elitek. So we try to open our own mould and make out our own components when we choose the best quality components from domestic and aboard to make out credit and rest assured products.
We do carry out ISO9001:2008 requirement in the practice of our manufacturing & quality inspection process, and we do have our own relative CE&ROHS&FCC certificates to offer the best service to our customers sincerely.
