Specifications
1.DC24V truck parking sensor2. 4 waterproof detections
3.high sensitivity with smart sensor
bine with camera&monitor

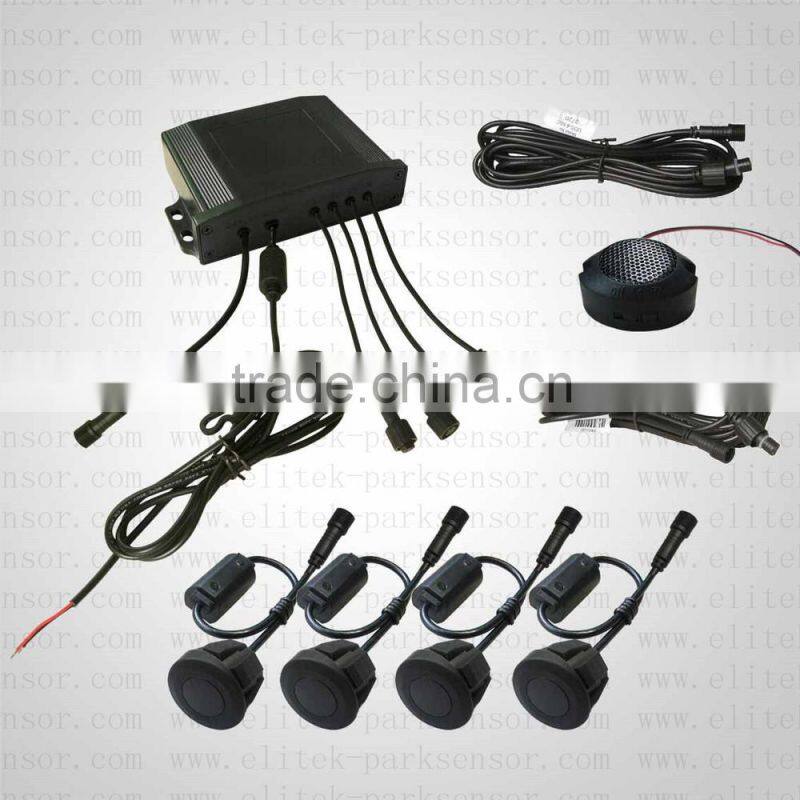

DC24V LED buzzer video screen Truck Parking Sensor High Performance/Easy Installation
1. Detailed Product Description
Model No.: SDW-4-UMP
1) Truck/Trailer Parking Sensor with Waterproof IP68 and Rear 4 Sensor
2) Sensor detection range: 0cm~2.5m;
3) Display range: 45cm~2.5m;
4) Advanced self-diagnosis with error indication;
5) Improved anti-interference function;
6) All weather design, waterproof level: IP68;
7) 4*UMP SmartSensor module built in double angle sensor, fit for metal tube bumper use, small connector type;
8) Precision accuracy: CM;
9) DSP01 display, 3 color LED 4 channel w/ buzzer built-in & digital readout;
10) Power Input: 10~35V DC;
11) Industrial cables and connectors, Microchip MCU.
2.DC24V Truck parking senosr Install user manual

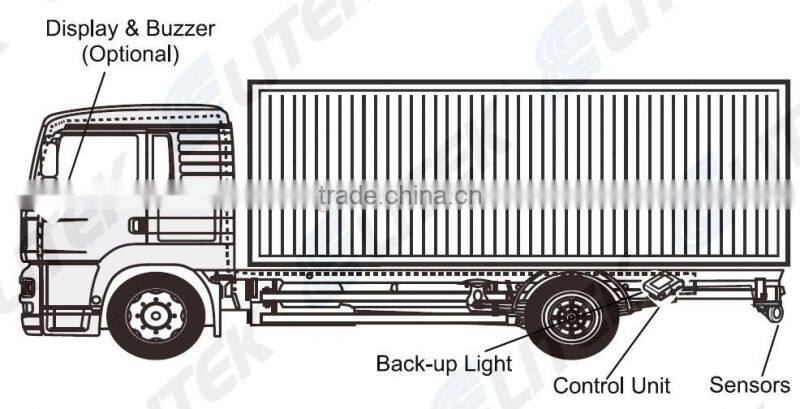

For truck application, screw the sensors on the bar behide bodywork, with the angled rubber spacer to fit it well.

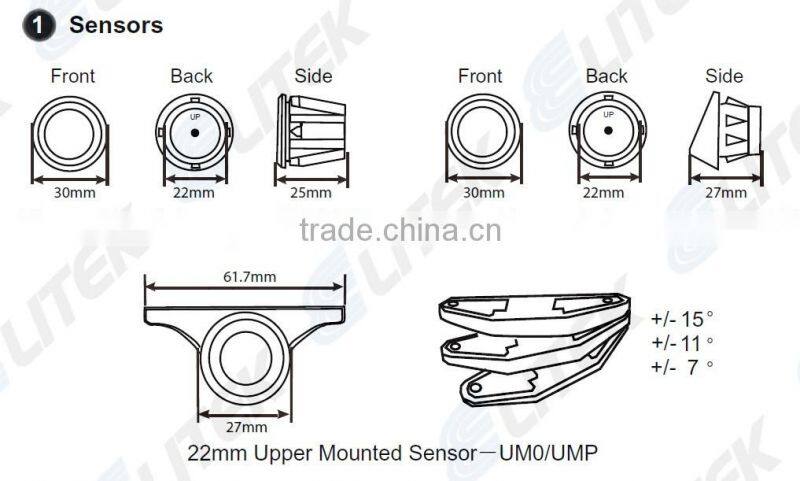

DC24V Truck parking sensor model list:
22mm rubber flat sensor – RF0/RFP
22mm rubber angled sensor – RA7/R7P
22mm Upper Mounted Sensor-UM0/UMP

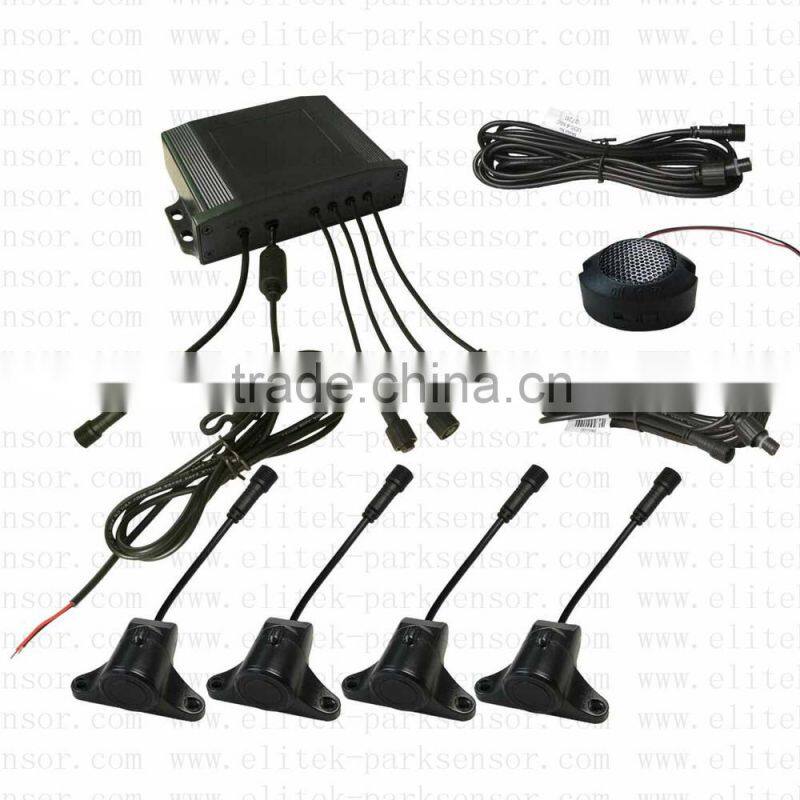

3. Packing contents:
| Control box | 1PCS |
| Sensors | 4PCS |
| 15cm with industrial connectors sensor cables 5m | 4PCS |
| LED display 5m cable | 1PCS |
| Power harness with Fuse 1.5 m length | 1PCS |
| Owner’s manual | 1PCS |
| Hole saw (22mm or screws optional) | 1PCS |
| Accessory pack | 1PCS |
| BUZZER OPTIONAL 15m cable | 1PCS |

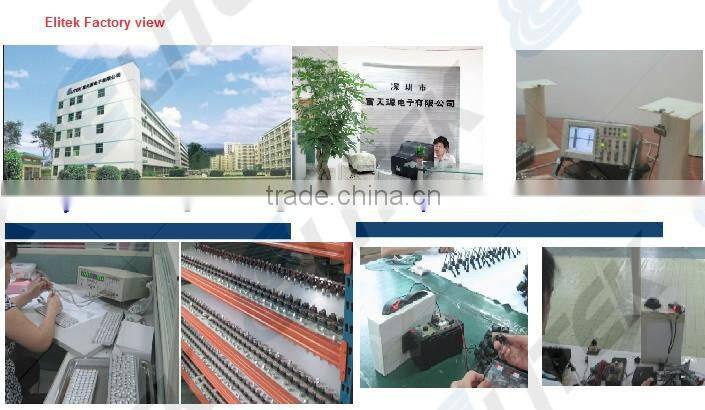

4.Factory view
5.DC24V Truck parking senosr FAQ
1. Is the small order for wholesale available?
---Yes, small order for wholesale is ok. 1 set sample available supply.
2.What's your Trade Term?
---Most used Trade Term is FOB Shenzhen, CIF are OK.
3. What's your payment items?
---TT 30% advanced as deposit, payment balance before shipment.
---Paypal, Western Union for sample and small order available.
4.What's the dispatched date for MOQ 100 sets?
---The lead time for 100 sets is 15-25 working days.
5.May I be an agent in my country?
---Sure, you can. If the order quantity is above 8000 sets a year, it's ok. We will never sell the same products to the dealers in your region.
