Specifications
Radar detector with car night vision reverse camera1.Night vision camera
2.OSD: On screen LCD display video
3.Parking alarm

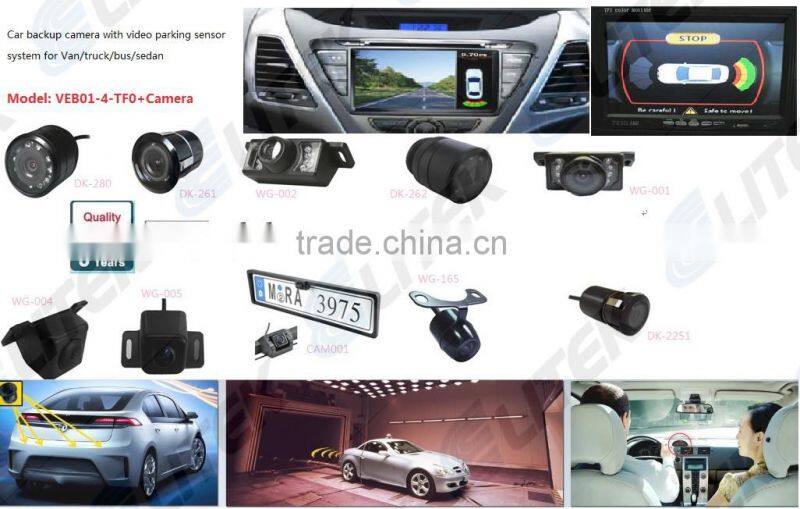

Ultrasonic radar detector with car night vision reverse camera DC12V for BMW
1. Car rear view camera with osd video parking sensor, 2 year warranty
High-definition and 135 degree viewing angle car rear view camera
Sony CCD or CMOS lens
Waterproof
Shell material: aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Mic: collects the environmental sound around the camera
Mirror & non-mirror images option (adjust by screw)
Self heating: The cameras will entry the self-heating mode when the environmental working temperature is lower than -5°C. And it wills automatic stop heating when the temperature reaches 30°C.
Superficial colors are optional: black, white, silver.
Image Sensors |
SONY CCD lens |
color CMOS lens |
IP rating |
Ip68 |
Ip68 |
TV System |
PAL or NTSC |
NTSC or PAL |
Effective Pixels |
628× 582/628× 492 |
580× 540/580× 492 |
Sensing Area(mm) |
4.9× 3.7 |
|
Resolution(TV Line) |
480 |
420 |
Horizontal Sync Frequency (KHZ) |
15.625/15.734 |
|
Vertical Sync Frequency (HZ) |
50/60 |
|
Video output |
1Vp-p, 75Ohm, RCA male |
|
Gamma Consumption |
0.45 |
|
AGC |
Auto |
|
BLC |
Auto |
|
S/N Ratio |
Betterthan 48dB |
|
Lens Angle (Deg. ) |
170° diagonal |
|
Current Consumption (mA) |
200 |
180 |
Power Supply (DCV) |
12V |
|
Operating Temperature (Deg. C) |
-20~+70(RH95%MAX. ) |
|
Storage Temperature (Deg. C) |
-40~+80(RH95%MAX. ) |
|
Size |
Same as the number plate reversing lamp of the original car |
|
LED lamp inside the camera (if camera has built-in LED light) | ||
Power Supply (DCV) |
12V |
|
Light color |
Thin yellow |
|
Current Consumption (mA) |
30~60mA |
|
Operating Temperature |
-20~+100 |
|
Storage Temperature |
-40~+120 |
|
Our car rear view camera with OSD video parking sensor advantages:
1.OSD image output
2.NTSC CMOS and PAL CMOS support
3.Distance data showed
4. Vedio screen digital output, virtual car mode/ 3 LED color bar/distance data showed; Rearview image showed when work with third party camera and monitor.
5.RD patented product.
2. Car Rear view camera+Video parking sensor fitted

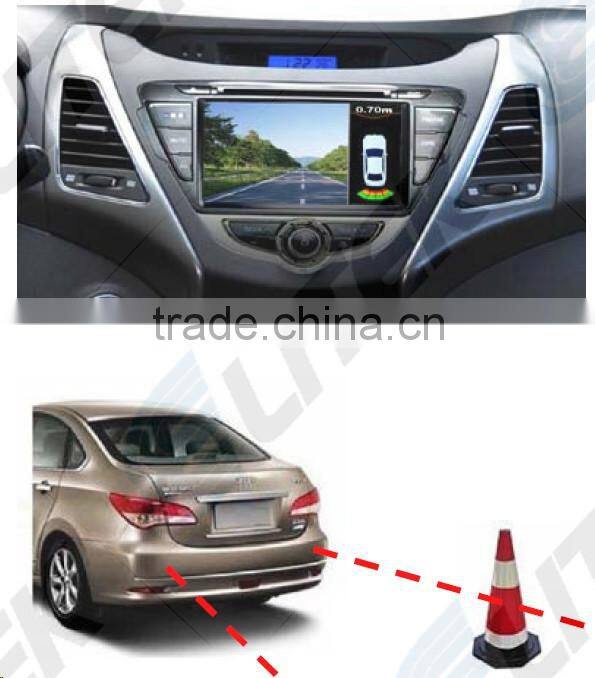

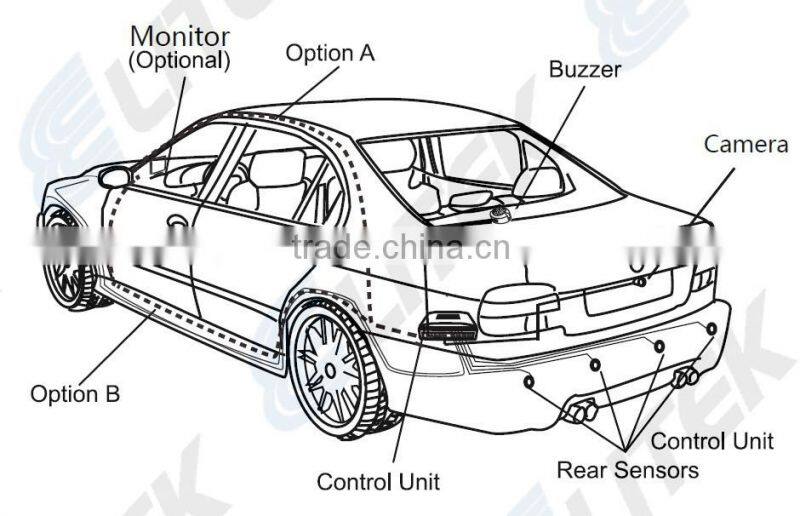

A.Car rear view camera and ultrasonic sensor system
B.Smart detection, No blind area and high reliability
C.TFT LCD monitor(GPS/Video/Music panel) on screen video

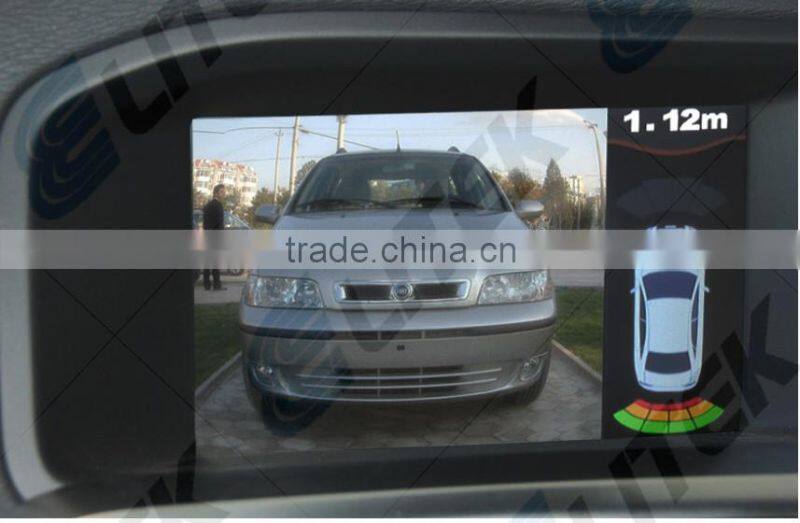

D.Display the distance on the screen
E.Alarm by three-step Bibi sound

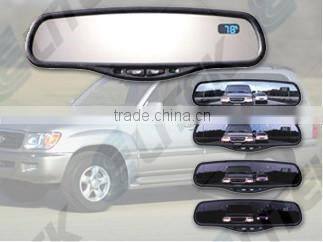

3. Car Rearview mirror optional
•Operating Voltage DC 9.0 -16.0 V ;
•High Reflectance>70%. Low Reflectance 6~10%;
•Maximum Current <450 milliamps;
•Operating Temperature -40C ~ +85C;
•Storage Temperature -40C ~ +100C;
•Time to change reflectance from 55% to 15% <6.0 seconds;
•Time to change reflectance from 15% to 55% <8.0 seconds;
•Temperature -40ºC~85 ºc (option function)
•Compass -180º~179º
• Auto-dimming
• Compass display
• Temperature display
•3.5" OSD rearvirw image

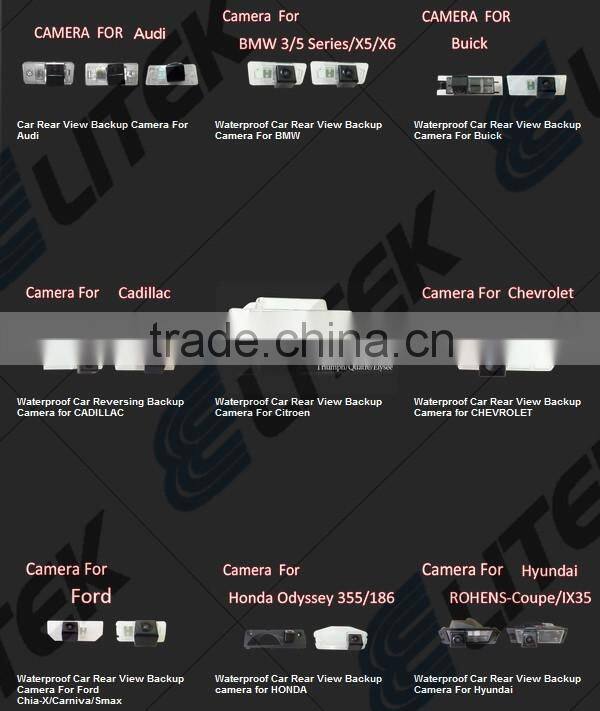

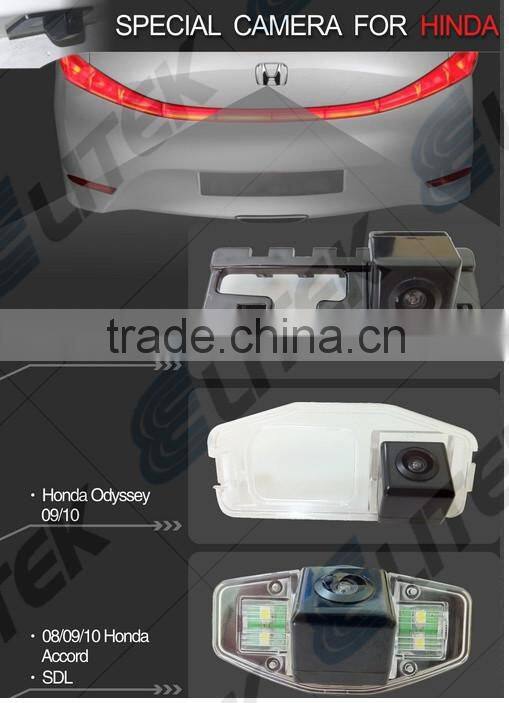

4. Car rear view camera with OSD video parking sensor for truck/trailer/bus/van/sedan, 2 year warranty
Mass order package
5. Car rear view camera with OSD video parking sensor

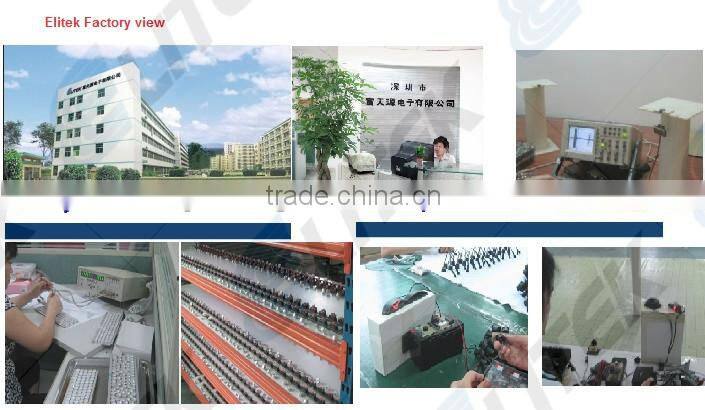

Factory view

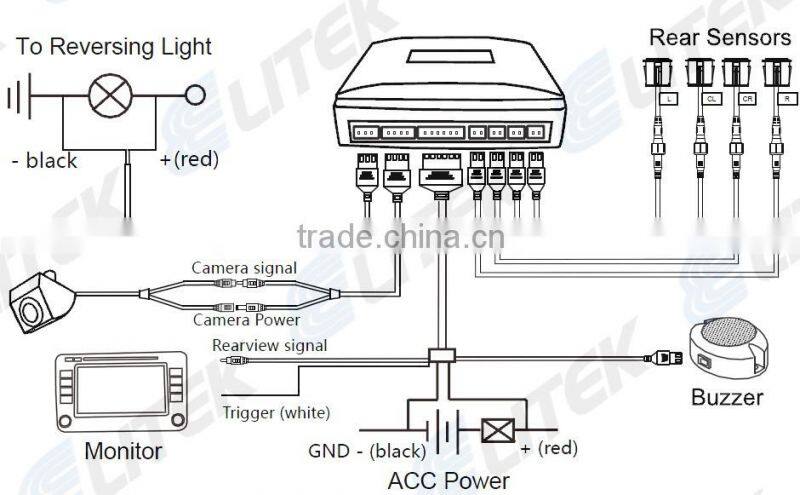

6. Car rear view camera system drawring :
A. Real-time video and audio monitoring.
B. Real-time vehicle status with complete information: online number,speed, GPS tracking, temperature,brakes,backing up,turning and alarming,etc.
C.Remote control to gas-off/power to vehicles.
D.Video display on screen via video cable contact Control box (parking sensor system)
E.Alarm linkage( Speed alarm,external emergency alarm,hard disk error alarm,video lost alarm,electronic map markers)
Electronic security fence
7. Car rear view camera manufacturer FAQ
1. Is the small order for wholesale available?
---Yes, small order for wholesale is ok. 1 set sample available supply.
2.What's your Trade Term?
---Most used Trade Term is FOB Shenzhen, CIF are OK.
3. What's your payment items?
---TT 30% advanced as deposit, payment balance before shipment.
---Paypal, Western Union for sample and small order available.
4.What's the dispatched date for MOQ 500 sets?
---The lead time for 500 sets is 15-25 working days.
5.May I be an agent in my country?
---Sure, you can. If the order quantity is above 8000 sets a year, it's ok. We will never sell the same products to the dealers in your region.
