Product Description

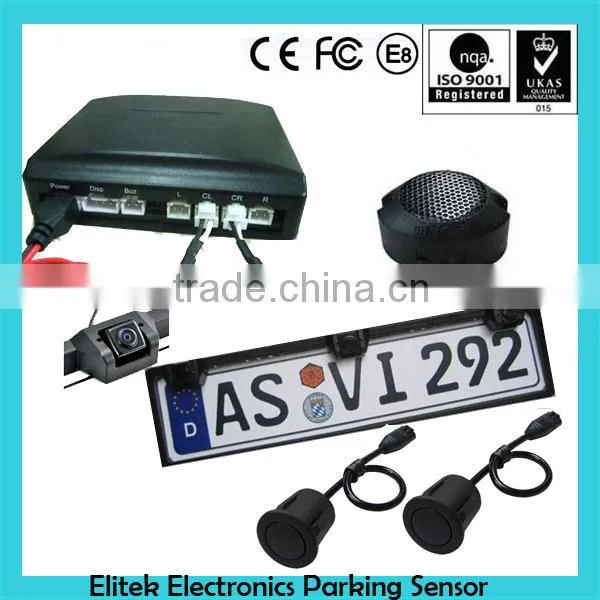

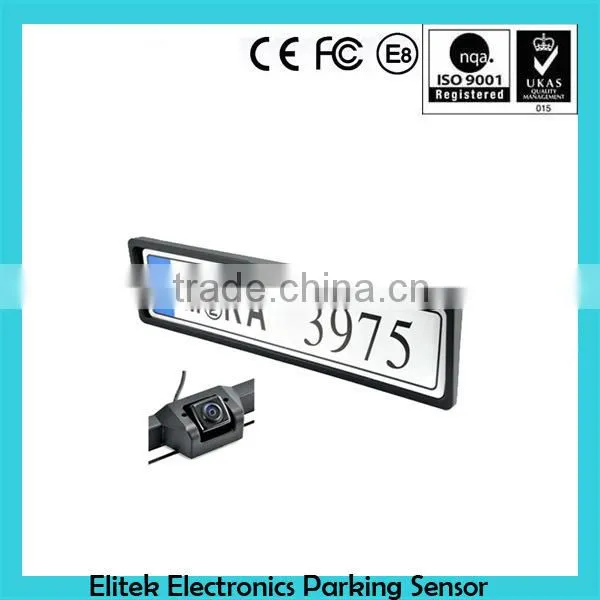

European car license plate frame rearview camera with parking sensor
| License plate frame | European |
| Camera | NTSC or PAL available |
| Sensor Type: | Ultrasonic parking sensor |
| MOQ: | 200 sets |
| Price Term | EXW |
| Payment Terms: | Paypal, Western Union, TT 30% in advance, balance before shipment. |
| Lead Time: | 5-15 working days after deposit received |
| Package: | 45.5*27.5*33 CM Carton for parking sensor; 57*33.5*49.5CM Carton for plate frame |
| Shipping: | 1.UPS, Fedex, DHL, EMS for sample; |
| 2.by sea or air available for mass order. |

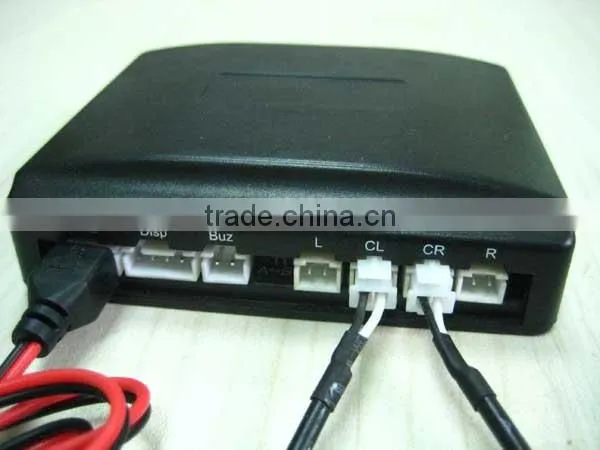

Sensor spec.
Model NO.:EB01-2-TF0
1) Car Rear 2 Parking Sensor System, fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Buzzer range: 40cm~1.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;
6) 2*TF0 double angle sensor, 18.5mm plastic flat, 2.5m cable with connector; Connectors for sensor cable to control box are with click lock.
7) BUZ01, "hi-low-off" switch option;
8) Power Input: 9.6~15V DC.
Sensor Technical Specification:
Description |
Min | Type | Max | Unit |
| Power voltage for S series | 10 | 24 |
35 | V DC |
| Power voltage for H&E series | 9.6 | 12 | 15 | V DC |
| Operating current | 150 | mA | ||
| Operating temperature | -20 | 80 | °C | |
| Operating frequency | 39.3 | 40 | 40.7 | KHz |
| Horizontal detection angle | 120 | ° | ||
| Vertical detection angle | 60 | ° | ||
| Distance detection accuracy | 1 | cm | ||
| Detection range | 0.05 | 0.9 | 2.5 | m |
| Buzzer sound volume | 75 | 105 | dB | |
| RF Frequency | 433 | MHz |
Camera Spec.
| Sensor mode | PC1089(CMOS 1/3) |
| Modulation | NTSC or PAL |
| Effective Pixels | 762X504 |
| Resolution | 500 TV Lines |
| Video Output | 1.0Vp-p 75ohm |
| S/N Ratio | >48dB |
| Current Consumption | Max. 150mA |
| Power Supply | DC 12V |
| Operating Temperature | -20℃~60℃,RH95%MAX |
| Storage Temperature | -30℃~80℃,RH95%MAX |
| Lens Angle | 120 degree |
| Water-proof Index | IP67 |
| Minimun Illumination | 0.2Lux |
| Other camera mode | Available |

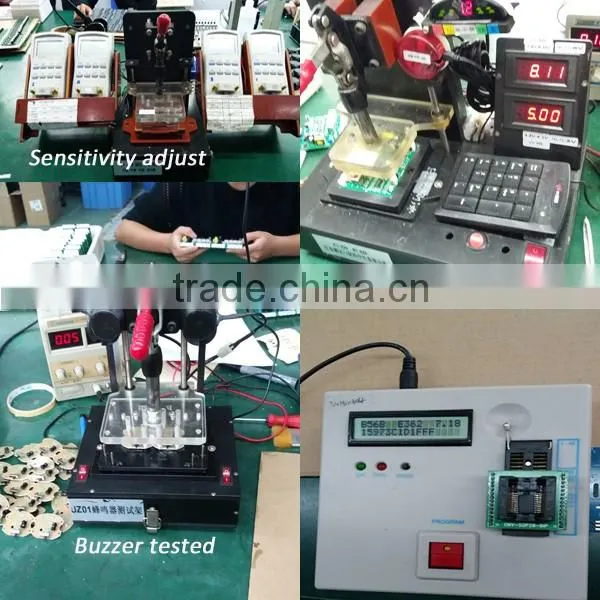

100% tests passed by professional equipments
MEAS.:57*33.5*49.5CM carton for European license plate frame
Founded in 2003, Shenzhen Elitek Electronics Co., Ltd. is specialized in the developing, designing and manufacturing of parking sensor system. Our talented engineers & skilled workers have more than 10 years of design & manufacturing experience in transducers, sensors and electronic control unit (E.C.U.) as well as the entire system, which ensures our parking sensors system always in high quality & most reliability.
We hold the belief of "Best quality, Best service" in Elitek. So we try to open our own mould and make out our own components when we choose the best quality components from domestic and aboard to make out credit and rest assured products.
We do carry out ISO9001:2008 requirement in the practice of our manufacturing & quality inspection process, and we do have our own relative CE&ROHS&FCC certificates to offer the best service to our customers sincerely.
