LED display parking sensor for suzuki swift(CD01-4-TF3)
Trading details:
| Sensor Type: | Ultrasonic parking sensor |
| MOQ: | 500 sets |
| Price Term | EXW |
| Payment Terms: | Paypal, Western Union, TT 30% in advance, balance before shipment. |
| Lead Time: | 7-25 working days after 30% deposit received |

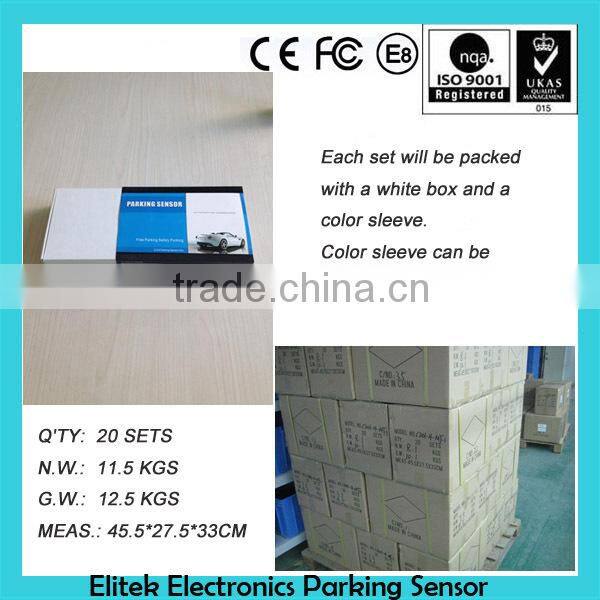

| Package: | 45.5*27.5*33 CM Carton |
| Shipping: | 1.UPS, Fedex, DHL, EMS for sample; |
| 2.by sea or air avail |
Model No.: CD01-4-TF3

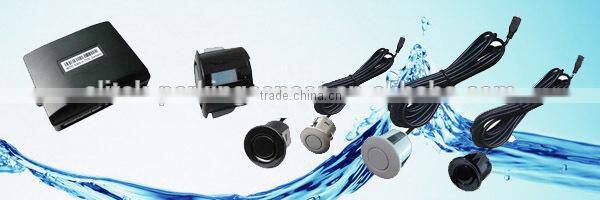

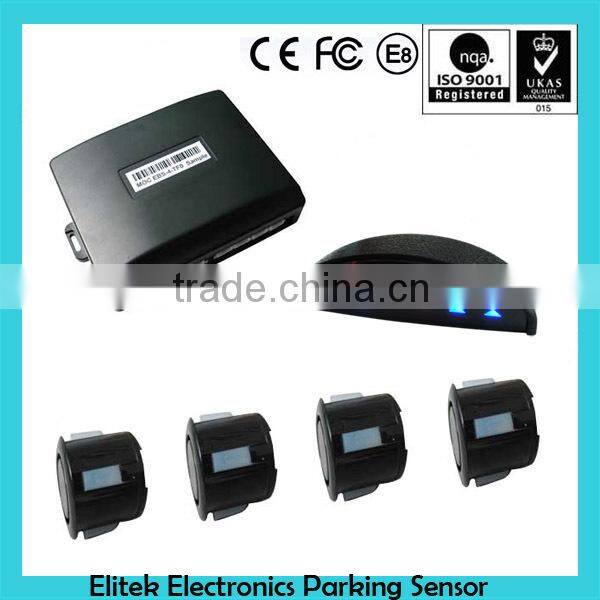

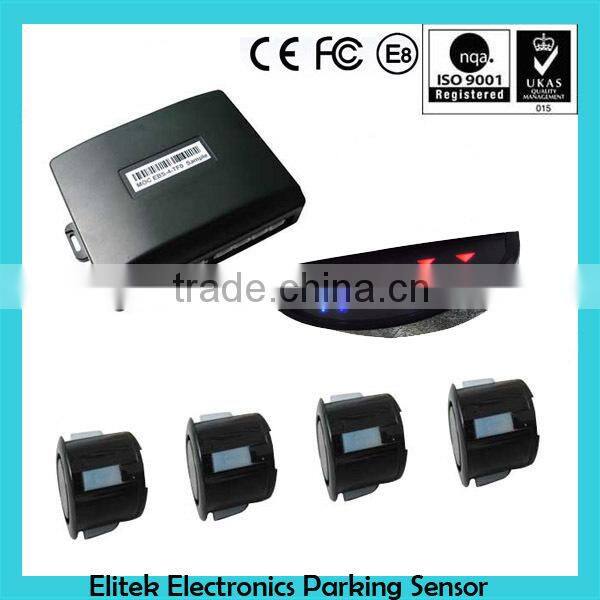

1) Car Rear 4 Parking Sensor System, fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Display range: 40cm~2.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;
6) 4*TF3 single angle sensor, 18.5mm plastic flat, 2.5m cable, IP67 waterproof connector option available;
7) Precision accuracy: CM;
8) DSP01 display, 3 Color LED 4 Channel w/ Buzzer built-in & Digital Readout;
9) Power Input: 9.6~15V DC.
10)DSP01 display, 4 Color LED 4 Channel w/ Buzzer "ON-OFF" button & Digital Readout, up side down LED color bar;
Technical Specification:
Description |
Min |
Type |
Max |
Unit |
Power voltage for S series |
10 |
24 |
35 |
V DC |
Power voltage for H&E series |
9.6 |
12 |
15 |
V DC |
Operating current |
|
|
150 |
mA |
Operating temperature |
-20 |
|
80 |
°C |
Operating frequency |
39.3 |
40 |
40.7 |
KHz |
Horizontal detection angle |
|
120 |
|
° |
Vertical detection angle |
|
60 |
|
° |
Distance detection accuracy |
|
1 |
|
cm |
Detection range |
0.05 |
0.9 |
2.5 |
m |
Buzzer sound volume |
75 |
|
105 |
dB |
RF Frequency |
|
433 |
|
MHz |

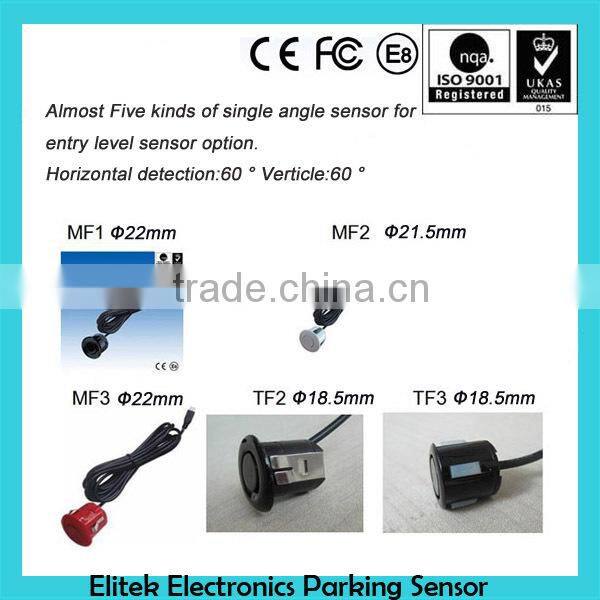

Sensor option:18.5 mm to 22mm sensor diameter.

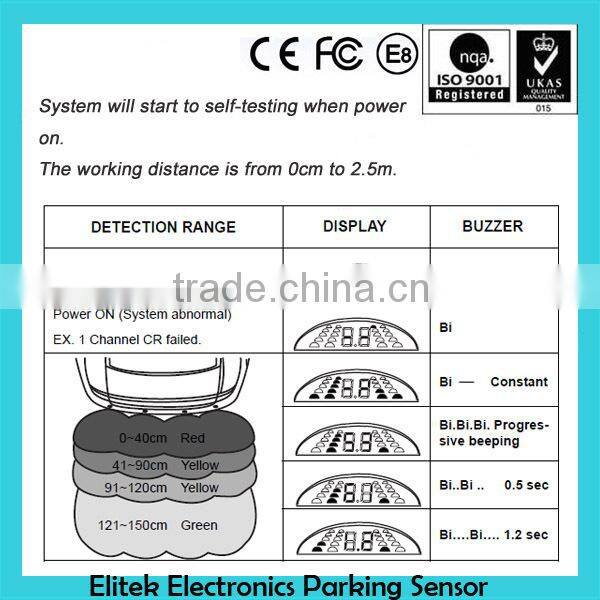

LED display alarm pattern from 0cm to 2.5m
Founded in 2003, Shenzhen Elitek Electronics Co., Ltd. is specialized in the developing, designing and manufacturing of parking sensor system. Our talented engineers & skilled workers have more than 10 years of design & manufacturing experience in transducers, sensors and electronic control unit (E.C.U.) as well as the entire system, which ensures our parking sensors system always in high quality & most reliability.
We hold the belief of "Best quality, Best service" in Elitek. So we try to open our own mould and make out our own components when we choose the best quality components from domestic and aboard to make out credit and rest assured products.
We do carry out ISO9001:2008 requirement in the practice of our manufacturing & quality inspection process, and we do have our own relative CE&ROHS&FCC certificates to offer the best service to our customers sincerely.
1. Is the small order for wholesale available?
---Yes, small order for wholesale is ok. But the order quantity at least 50 sets.
2.What's your Trade Term?
---Most used Trade Term is EXW; FOB Shenzhen, CIF is OK.
3. What's your payment items?
---TT 30% advanced as deposit, payment balance before shipment.
---Paypal, Western Union for sample and small order available.
4.What's the dispatched date for MOQ 500 sets?
---The lead time for 500 sets is 10-15 working days.
