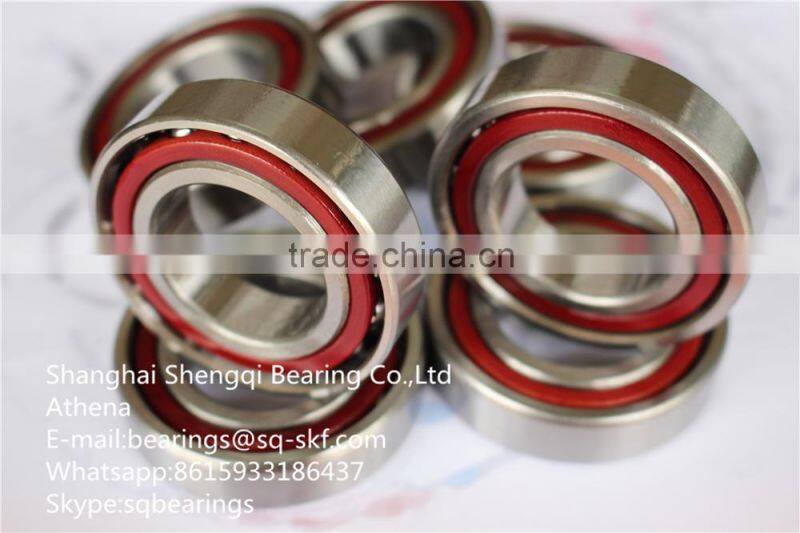

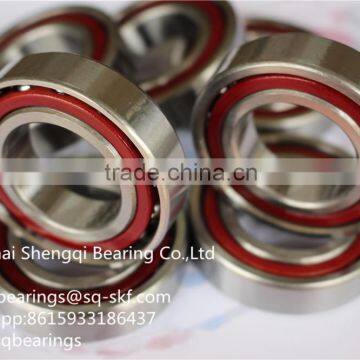

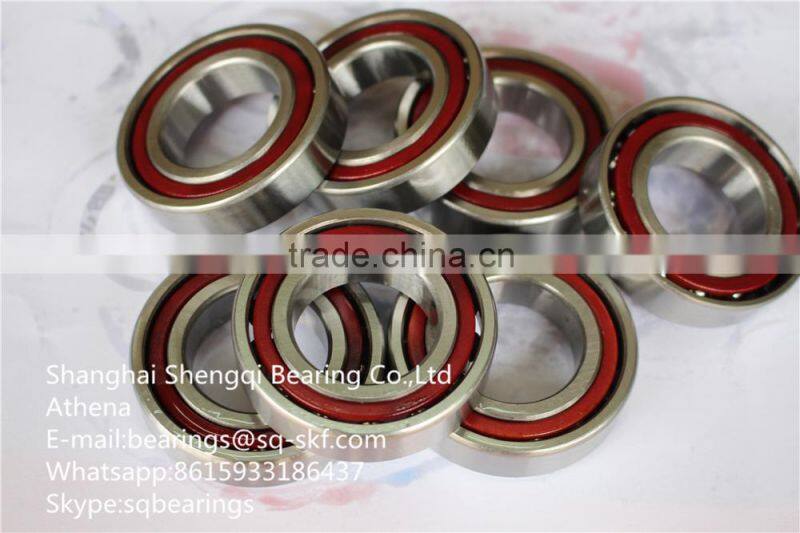

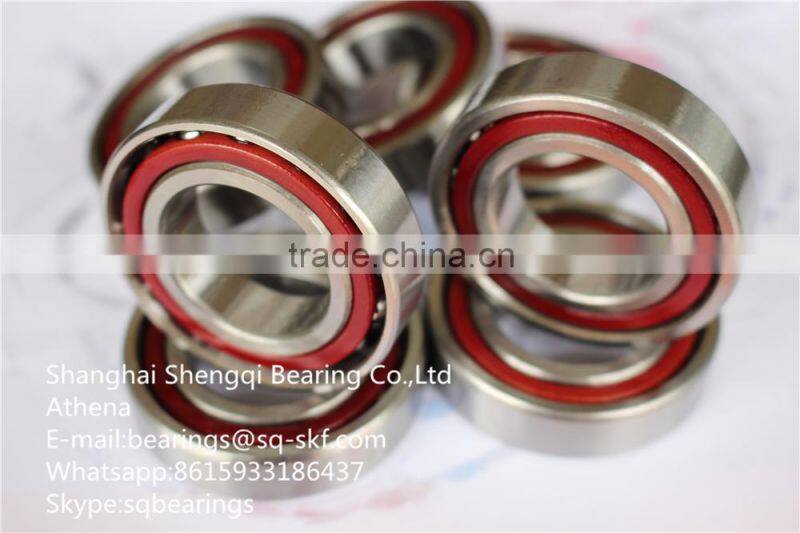

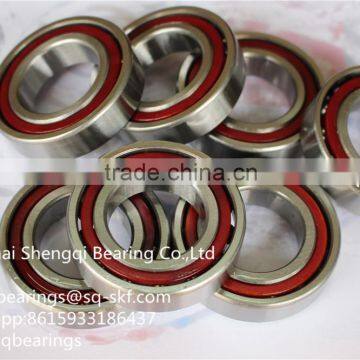

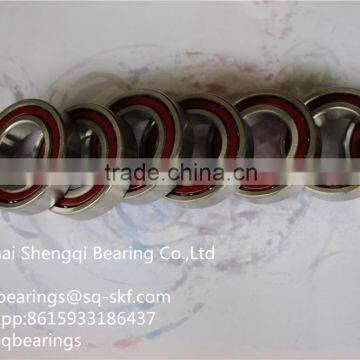

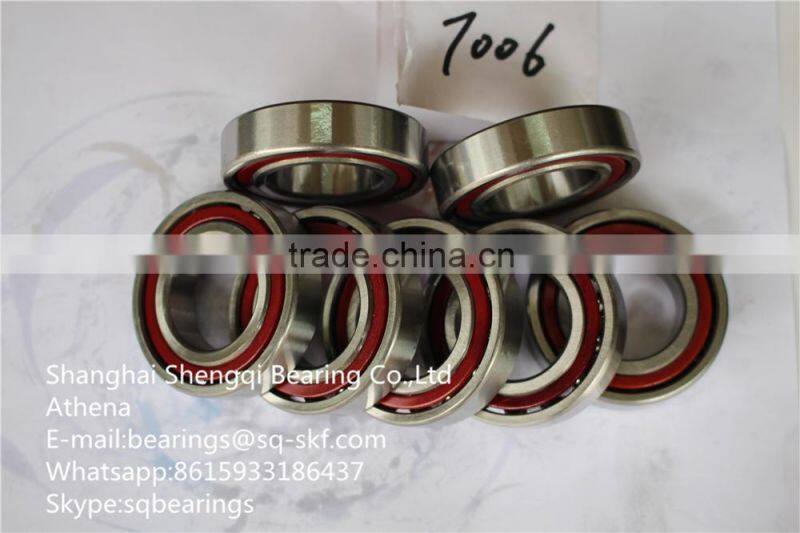

Help CenterRed Seals Angular Contact Ball Bearing 7006AC/ACM
Related Products
-
Copper Bearing Cage 7013 Contact Ball BearingsUS$ 2.20 - 2.20MOQ: 1 Piece -
Copper Bearing Cage 7014AC/ACM Contact Ball BearingsUS$ 0.20 - 0.20MOQ: 1 Piece
-
Angular Contact Ball Bearings 7015AC/ACMUS$ 0.20 - 0.20MOQ: 1 Piece
-
Angular Contact Ball Bearing 7006 High-speed Ball BearingUS$ 0.10 - 0.10MOQ: 100 Pieces
-
Angular Contact Bearing 7006 AC High-speed Ball BearingUS$ 0.10 - 0.10MOQ: 100 Pieces
Angular contact ball bearings are non-separable type bearings and typically used for carrying combined (axial and radial) loads. They can carry pure axial load and operate in higher speed. That's why many people refer to them incorrectly as thrust bearings. There are three basic types of angular contact ball bearings:
• Single Row Bearings
• Double Row Bearing
• Four Point Contact Ball Bearings
Single row angular contact ball bearings can carry axial loads acting in one direction only. Under the radial loads the force acting in the axial direction needs to be countered. It is usually adjusted against the second bearing. These bearings have one high and one low shoulder on each ring allowing more number of balls to be incorporated.
There are two standard versions of single row angular contact ball bearings used for different purposes.
Only one bearing is used at a given bearing position.
Two or more bearings are positions at the given bearing position. They may be mounted adjacent, back to back or face to face position. Universal matching bearings are specially manufactured to be placed in adjacent arrangement to get a pre determined internal clearance.
| New Model | Old Model | ID | OD | WID | Cr | Cor | Grease | Oil | Weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) |
| 7006C | 36106 | 30 | 55 | 13 | 15.8 | 11 | 20000 | 26000 | 0.133 |
| 7006AC | 46106 | 30 | 55 | 13 | 14.5 | 10.1 | 14000 | 18000 | 0.133 |
l single row angular contact ball bearings:
machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, filling machine, low noise type cooling tower, electrical equipment, coating equipment, machine tool trough plate, arc welding machine.
Our main products includes:
1.Deep groove ball bearings
2.Self-aligning ball bearings
3. Cylindrical Roller Bearings
4. Self-aligning Roller Bearings
5. Angular Contact Ball bearings
6. Tapered Roller Bearings
7. Thrust Ball Bearings
8. Thrust Roller Bearings
9. Needle roller Bearings
10. Insert Ball Bearings
11. Spherical Plain Bearings
12. joint bearings
Shanghai Shengqi Bearing Co.,Ltd is a bearing manufacturer in China, we can supply all kinds of bearings, except for our own brand, we also offer famous brands bearings and can customized as customer's request. Our products widely sold to USA, Europe, Middle East, Asia and so on. If you are interested in our products or need more information about our products, please contact me.
1.Q: When can I get the price?
A: after we get your inquiry, usually within 6 hours. Urgent will be faster.
2. Q:How about your quality of bearings?
A: We have different quality, according to your need.
3. Q: Can I get free samples for test from your company?
A: Yes, we offer samples for test.
4.Q: What is the MOQ of your products?
A: Usually ≥1, According your need.
4. Q: How about the Delivery time?
A: About 3-15days. (according the quantity.)
5. Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System. We have a professional QC team.
If you need more information of our product, welcome to contact with me.
