Single Video Lightning Arrester in CCTV

FOB Price

US$ 6 - 10 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	Chuangyuan
Model Number	CY-BL301

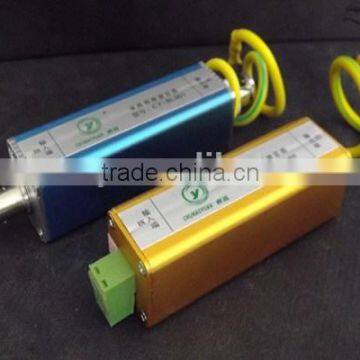

CCTV BNC Port Video Surge Protector

Functions

This Video Surge Protector is mainly used for the protection of video devices in monitoring systems.

1.Built-in semi-conductive protective device, high through flow rate, low limiting voltage, and short response time;

2.Wide frequency band, little insertion loss, and low standing-wave ratio;

3.Exquisite appearance, easy installation and reliable performance.

Technology Parameter

Nominal Voltage UN	5V	Insertion Loss	Less than 0.3dB
Max. Continuous DC Voltage UC	8V	Response time	Less than 1ns
Max. Through Flow Rate	5KA	Impedance	75Ω
Max Speed VS	10M	Interface	BNC
Working Conditions	Temperature Range: -25~+85 Celcius Degree Humidity Range: 5%~95%
