CCTV lightning arrester price for analog security systems
1. Single Video Surge Protector CY-BL301
Description
This device CY-BL301 is used to protect video signal systems from the damage caused by overvoltage or static discharge, etc. by lightning strike.
Features
1. Built-in protective semi-conductive components, high through flow rate, low limiting voltage, short response time and reliable performance.
2. Wide frequency band, little insertion loss, and low standing-wave ratio.
3. Exquisite appearance, easy for installation.
Technical Data
Nominal Voltage UN |
5V |
Insertion Loss |
Less than 0.3dB |
Max. Continuous DC Voltage UC |
8V |
Response time |
Less than 1ns |
Max. Through Flow Rate |
5KA |
Impedance |
75Ω |
Max Speed VS |
10M |
Interface |
BNC |
Working Conditions |
Temperature Range: -25~+85 Celcius Degree Humidity Range: 5%~95% |
||
Description
CY-BL302 is used to protect the power supply and video devices of AC/DC-powered surveillance cameras from surge damage caused by sudden increase of potential difference between different devices when there is induction lightning strike.
Technical Data
Video Parameters |
Working Voltage |
8V |
Max.Continuous WorkingVoltage |
15V |
|
Max.Through Flow Rate |
10KA |
|
Max.DataTransmission Speed VS |
20M |
|
Insertion Loss |
≤0.3dB |
|
Response time |
25ns |
|
Impedance |
75Ω |
|
Interface |
BNC |
|
|
Electric Power |
Working Voltage |
AC24/DC12 |
Max.Continuous WorkingVoltage. |
40V |
|
Max.Through Flow Rate |
10KA |
|
Response time |
≤1ns |
|
Interface |
terminal(L,N) |
|
Working Environment |
Working Temperature |
-25°C~75°C |
Working Humidity |
5%-95% non- condenscending |
3. Surge protector for Video, Power and Data CY-BL303
Description
CY-BL303 is used to protect the power supply, video and data devices of AC/DC-powered surveillance cameras from surge damage caused by sudden increase of potential difference between different devices when there is induction lightning strike.
Features
1. Three protected lines, no interference with each other and reliable performance.
2. Wide frequency band, little insertion loss, and low standing-wave ratio.
3. Exquisite appearance, easy for installation.
Technical Data
Video Parameters |
Working Voltage |
8V |
Max.Continuous WorkingVoltage |
15V |
|
Max.Through Flow Rate |
10KA |
|
Max.DataTransmission Speed VS |
20M |
|
Insertion Loss |
≤0.3dB |
|
Response time |
25ns |
|
Impedance |
75Ω |
|
Interface |
BNC |
|
|
Electric Power |
Working Voltage |
AC24/DC12 |
Max.Continuous WorkingVoltage. |
40V |
|
Max.Through Flow Rate |
10KA |
|
Response time |
≤1ns |
|
Interface |
terminal(L,N) |
|
|
Data Parameters |
Data Type |
RS485(Simplex, half-duplex) |
Working Voltage |
8V |
|
Max.Continuous WorkingVoltage. |
15V |
|
Max.Through Flow Rate |
10KA |
|
Max.DataTransmission Speed VS |
20M |
|
Response time |
≤1ns |
|
Interface |
terminal (+,-) |
|
Working Environment |
Working Temperature |
-25°C~75°C |
Working Humidity |
5%-95% non- condenscending |
4. 16 channel Video Surge Protector

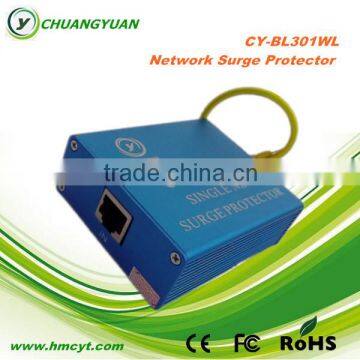

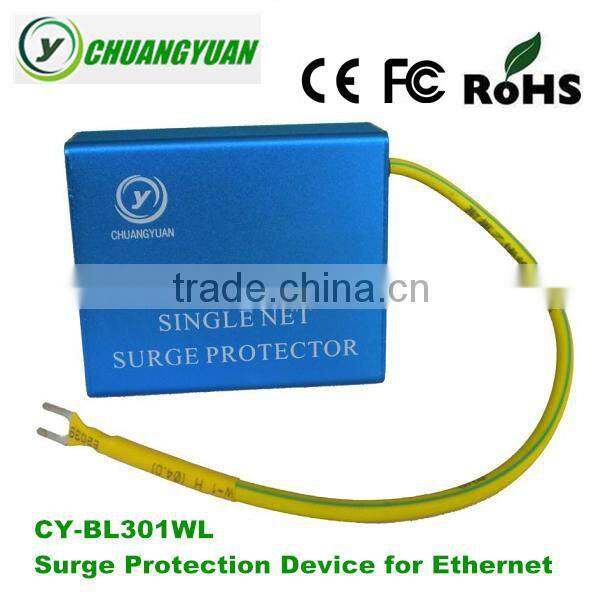

5. Network Surge Protector CY-BL301WL
Description
This device CY-BL301WL is used to protect equipment of Ethernet 10 Base or 100 Bas T (like network Card, Ethernet Switch, HUB, Router, etc.) from the damage caused by overvoltage or static discharge, etc. by lightning strike.
Features
1. High through flow rate, low limiting voltage, short response time and reliable performance.
2. Wide frequency band, little insertion loss, and low standing-wave ratio.
3. Exquisite appearance, easy for installation.
Technical Data
Nominal Voltage UN |
5V |
Insertion Loss |
Less than 0.5dB |
Max. Continuous DC Voltage UC |
6.8V |
Response time |
Less than 1ns |
Max. Discharge Current |
10KA |
Transmission Rate |
100Mbps |
Nominal Discharge Current |
5KA |
Interface and Protected Lines |
RJ45 (A: 1/2, 3/6 B: 1.2.3.4.5.6.7.8) |
| Others |
Temperature Range: -40~+80 °C Resdual Voltage: <5V |
||
5. Network and Power Surge Protector CY-BL302WD
Description
This surge protector is used to protect the network and power of IP cameras or wireless control cameras from the damage caused
by overvoltage or static discharges by lightning strike.
Standard
In according with standard of GB/T18802.21-2004/IEC61643-21:2000 designing.
Technical Parameter
|
Network |
Power |
|||
Working Voltage Un |
5V |
220V |
24V |
12V |
|
Max. Working Voltage Uc |
6V |
320V |
30V |
15V |
|
Max. Discharge Current Imax(8/20μs) |
1-2 |
0.3KA |
10KA |
10KA |
10KA |
3-6 |
0.3KA |
||||
1,2,3,6-PE |
2KA |
||||
SE-PE |
5KA |
||||
Limited Voltage Up(10/700/μs) |
1-2 |
<20V |
600V |
60V |
30V |
3-6 |
<20V |
||||
Insulation Resistance MΩ |
≥0.4 |
|
|
|
|
Insertion Loss dB |
≤0.5 |
|
|
|
|
Near End Cross-Talk dB |
≥60(PASS) |
|
|
|
|
Bandwidth FG |
(0.3~100)M |
|
|
|
|
Transmission Rate Vs |
100M |
|
|
|
|
Response Time Ta |
≤1ns |
≤25ns |
|||
Cover Rating |
IP20 |
||||
Size |
106*66*28mm |
||||
Cover Material |
Aluminum |
||||
Protected Lines |
2 pairs(1-2,3-6) |
Differential Mode,Common Mode |
|||
Interface |
RJ45 |
Terminal block |
|||
Temperature |
-40℃~70℃ |
||||
Humidity |
≤95% |
||||
Pressure |
70kPa~106kPa |
||||
