8 channel 720P/960P/1080P CVI/AHD Converter hd-cvi Fiber Optic Converter
Description
AHD/HDCVI to Fiber Converter can simultaneously transmit 1-8 channels AHD/HDCVI over one multi-mode or single-mode
optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system
status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .
Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.
Specifications
Opitcal
Wavelength |
1310nm&1550nm |
Output Power |
-8~3dBm |
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
Rx sensitivity |
-25dBm |
Optical connector |
FC,ST,SC (optional) |
Distance |
0~550M (MM) / 0~20KM (SM) |
Video:
Number of Channels |
1-8 |
Input/output impedance |
BNC 75Ω (unbalance) |
Standard video input/output voltage |
1.0Vp-p |
Video Bandwidth |
45MHz |
Sampling Bandwidth |
10bit |
Sampling Frequency |
108MHz |
Rise and Fall time |
<0.8ns |
Optical Signal Intrinsic Jitter |
<0.2 UI |
Differential Gain |
< ±1.5% |
Differential Phase |
< ±1° |
Connector |
BNC |
Other
Power |
DC5V 2A |
Power Consumption |
≤6W |
Temperature |
-40ºC ~75ºC |
Humidity |
10%~90% RH |
Unit Weight(1-4CH) |
1.45KG(pair) |
Dimension(1-4CH) |
183mm×154mm×30mm |
Installation |
Wall mount |
MTBF |
≥ 100000Hours |

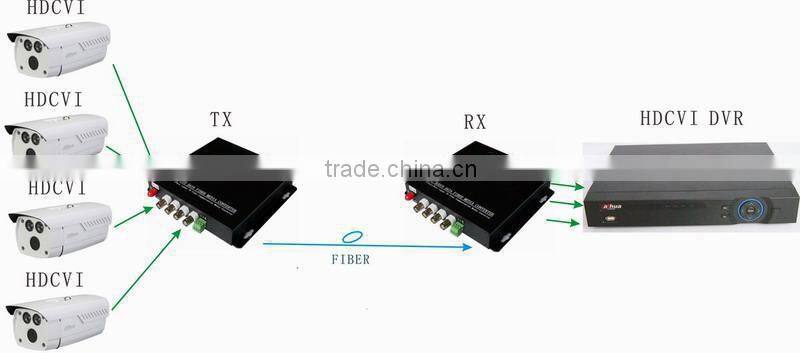

System connection diagram
Order Information:
| Item No. | Item Name | Description |
| CY-9801C/7 | 1CH HDCVI to Fiber Converter |
Video:1CH*720P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9801C/8 | 1CH HDCVI to Fiber Converter |
Video:1CH*1080P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9802C/7 | 2CH HDCVI to Fiber Converter |
Video:2CH*720P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9802C/8 | 2CH HDCVI to Fiber Converter |
Video:2CH*1080P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9804C/7 | 4CH HDCVI to Fiber Converter |
Video:4CH*720P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9804C/8 | 4CH HDCVI to Fiber Converter |
Video:4CH*1080P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9808C/7 | 8CH HDCVI to Fiber Converter |
Video:8CH*720P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9808C/8 | 8CH HDCVI to Fiber Converter |
Video:8CH*1080P HDCVI single mode single fiber FC optical interface,20KM |
| CY-9801AH/7 | 1CH AHD to Fiber Converter |
Video:1CH*720P AHD single mode single fiber FC optical interface,20KM |
| CY-9802AH/7 | 2CH AHD to Fiber Converter |
Video:2CH*720P AHD single mode single fiber FC optical interface,20KM |
| CY-9804AH/7 | 4CH AHD to Fiber Converter |
Video:4CH*720P AHD single mode single fiber FC optical interface,20KM |
| CY-9808AH/7 | 8CH AHD to Fiber Converter |
Video:8CH*720P AHD single mode single fiber FC optical interface,20KM |
