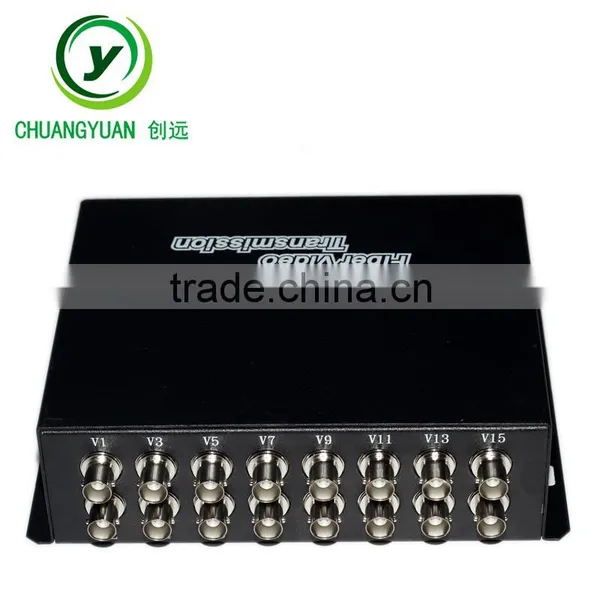

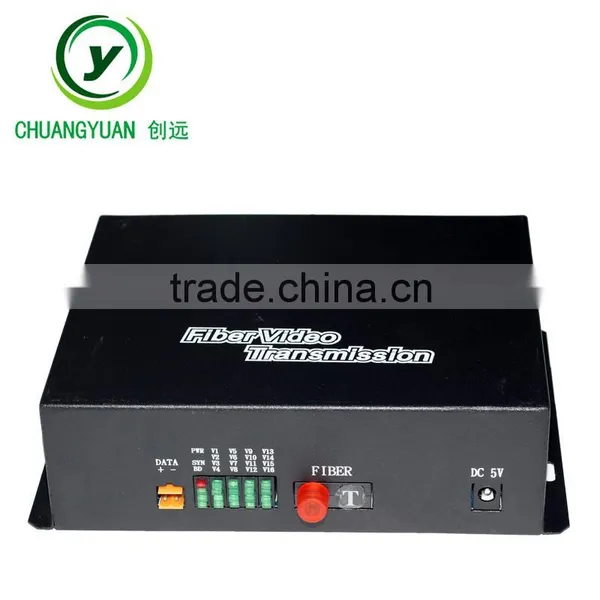

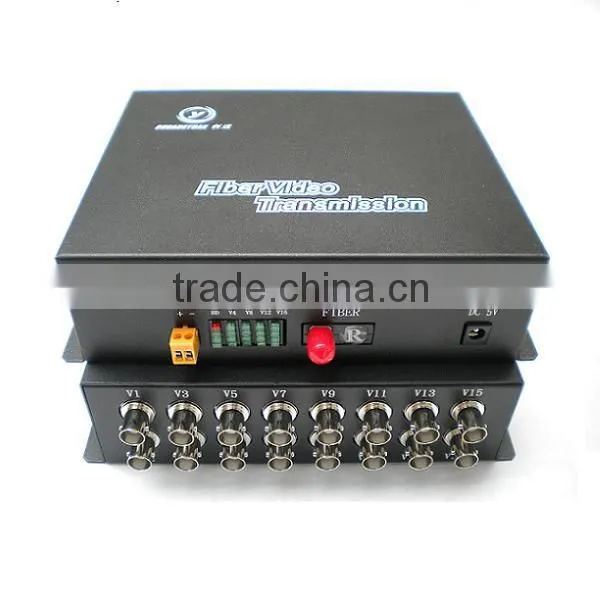

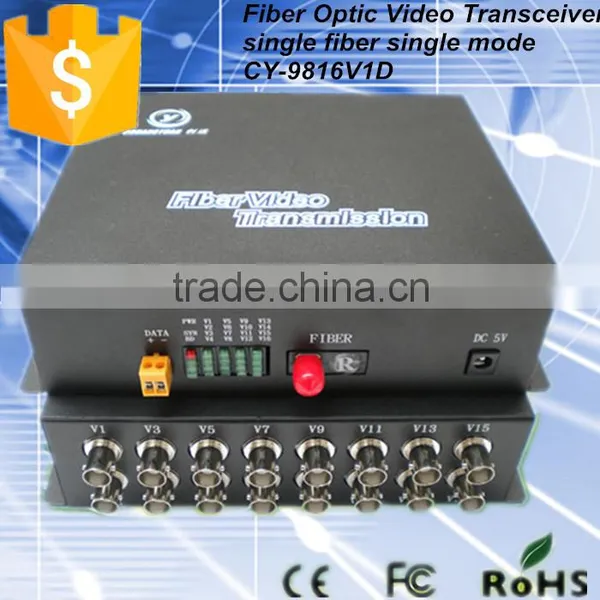

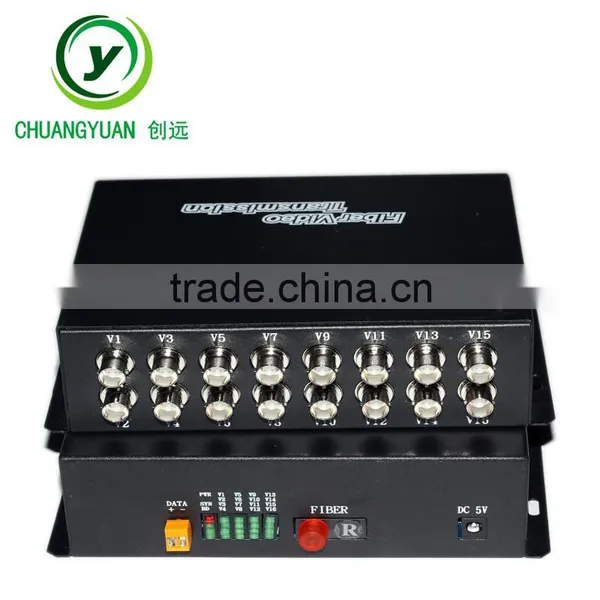

Fiber Optical video transceiver ( video optical transceiver )
fiber video transmitter for CCTV camera
Model No. Function
CY-9801V Transmit 1 channel Video by one fiber
CY-9801V1D Transmit 1 channel Video and RS485 / manchester Data by one fiber
CY-9801V1D1A Transmit 1 channel Video ,1 audio and RS485 / manchester Data by one fiber
Description
HMCY's CY-9800 series provides the ability to transmit 1, 2, 4, 8, 16 channnel uncompressed
videos and data(audio,alarm,telphone,ethernet,switch) over one-core fiber. NTSC, PAL and
SECAM video formats are all seamlessly supported. Modular in design, stand-alone or
rack-mounted installation is available. The HMCY fiber optics offers a full range of simple to
install, easy to operate, competitively priced point-to-point fiber optic video surveillance solutions.
• 8/10 bits digitally encoded video transmission
• NTSC, PAL, and SECAM auto compatible
• Surface mount technology
• WDM technology
• LED indicators for monitoring of system operating status
• Immune to EMI, RFI, cross talk and video distoration
• Surge protection against transient surge and over voltage
• Automatic re-settable fuses, short circuit protection
• ST,FC,SC Optical Connectors
• No user adjustments required
• Smart Buildings
• Intelligent Transportation System
• Security and Surveillance, CCTV System
• Access Contral
• Connection of Sub-network for Surveillance Center
• High Way & Toll Station Surveillance
• High Quality Video Conference
• Industrial Closed Circuit Television Surveillance
Technical parameter | |
Opitcal | |
Wavelength |
850/1310nm multi-mode |
1310/1550nm single mode | |
Rx sensitivity |
-30dBm |
Distance |
2KM(Multimode) |
100KM(Single mode) | |
Optical interface |
FC(normal), ST/SC(optional) |
Video | |
Input/output impedance |
BNC 75Ω (unbalance) |
Signal system |
PAL/NTSC/SECAM |
Nominal input & output level |
1Vp-p |
Nominal input & output impedance |
75Ω |
Quantification grade |
8bit/10bit |
Differential gain |
less than 1% |
S/N ratio |
more than 67dB |
Data characteristics | |
Interface port |
Standard terminal lead |
Interface Signal |
RS-232, RS-422, RS-485,Manchester |
Code rate |
0~300Kbps |
BER |
less than 10e-9 |
Work pattern |
full duplex/half duplex |
Audio | |
Audio Input/output Impedance |
600ohm/10Kohm |
Max input/output voltage |
2.0Vp-p |
Sampling frequency |
48MHz |
S/N ratio |
more than 85dB(weighting) |
Connector |
Standard terminal lead |
Ethernet | |
Work mode |
Full duplex/half duplex |
Protocol |
IEEE802.1Qvlan, IEEE802.3x FDX fluid convtrol and Back-pressure semi duplex fluid control |
Connector |
RJ45 |
Telephone | |
Phonetic bandwidth |
8KHz |
Work mode |
Point to point hot line, program controlling switch/extension mode |
Distortion |
less than 1% |
Connector |
Standard terminal lead |
Binary input/Output | |
Signal input |
alarm, Binary input, support TTL,RS-232/422/485 or passive switch button |
Signal output |
Arbitrary alarm, Binary output, support TTL,RS-232/422/485 or relay output |
Connector |
Standard terminal lead |
Operation Environment | |
Operating Temperature |
-40 ~+75°C |
Storage Temperature |
-55~ +85°C |
power supply voltage |
110V-260Vac,-48Vdc,24Vdc,12Vdc,5V |
MTBF |
more than 1000,000 hours |

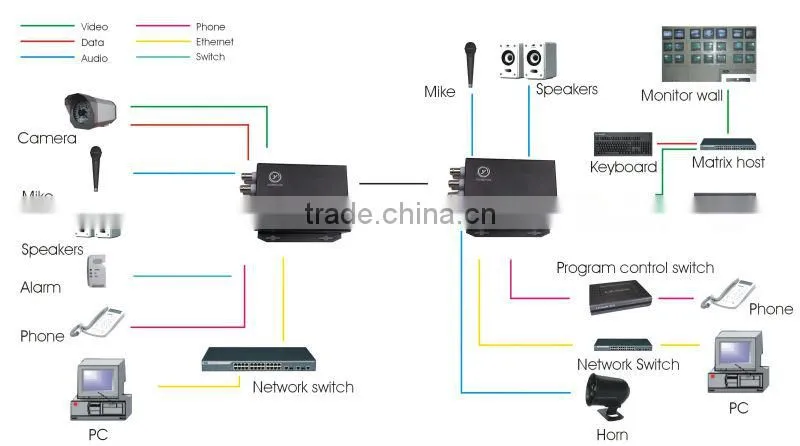

Solution

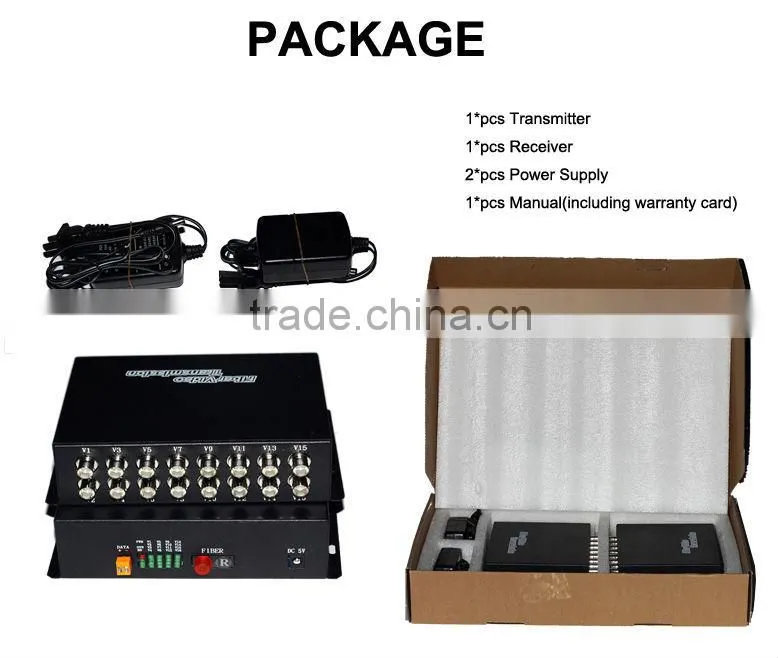

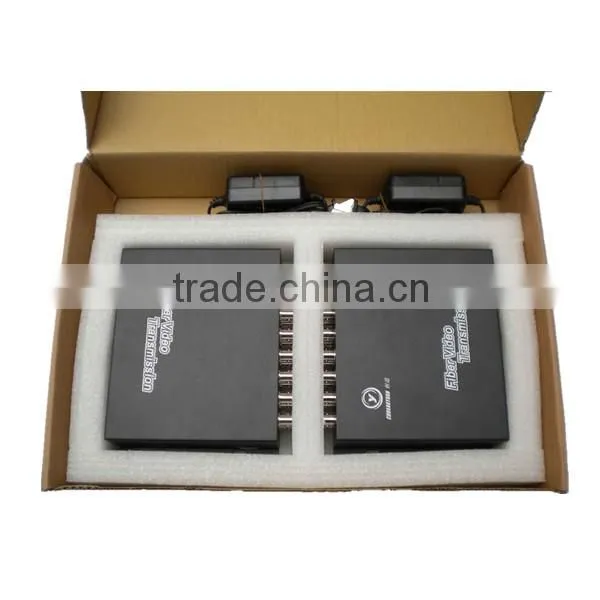

Packaging & Delivery

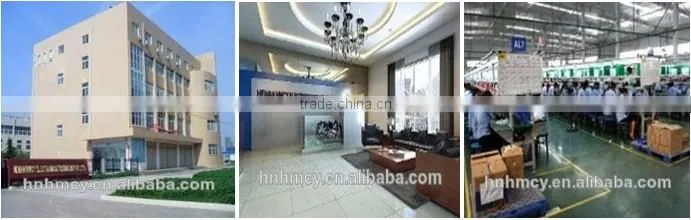

Established as a high-tech enterprise in 2002, Henan HMCY Electronic & Technology Co., Ltd. is mainly specialized in professional Research & Design, manufacturing, and sales of video transmission equipment in security and surveillance field. With first-class production management and strict quality control system, we have been well-known for our product quality, reasonable price and satisfactory services.
Our main products are: Fiber optic video converte, Coaxial video multiplexer, Ethernet media converter, HD IP Camera, Surge protector, etc.. All had been approved with CE, FCC, and RoHS certificates.
