Hot sales! CH341A 24 25 Series EEPROM Flash BIOS DVD USB Programmer DVD programmer router Nine brush machine USB programmer
We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!
Hot sales! CH341A 24 25 Series EEPROM Flash BIOS DVD USB Programmer DVD programmer router Nine brush machine USB programmer
-----------------------------------------------------------------------------------------------------------------
PRODUCT PICTURE
-----------------------------------------------------------------------------------------------------------------
PRODUCT FEATURES
Please note, the programmer, only provides the driving, writing software, instructions for use... Do not provide technical support...

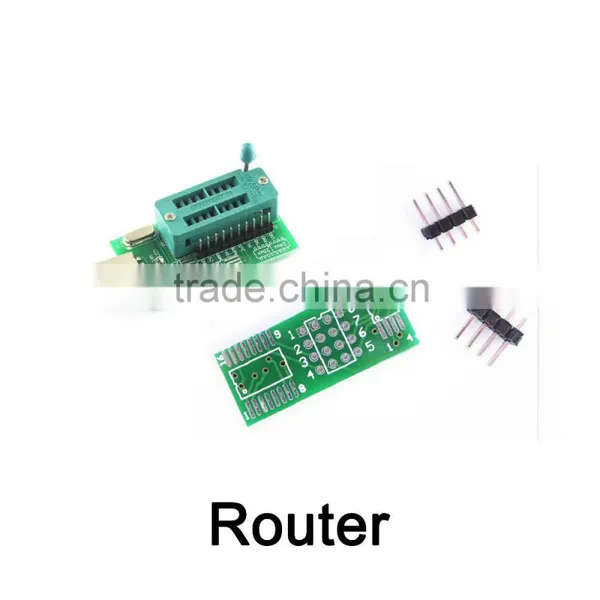

Delivery list:
1: the programmer a host.
2: programmer driver programming software etc.

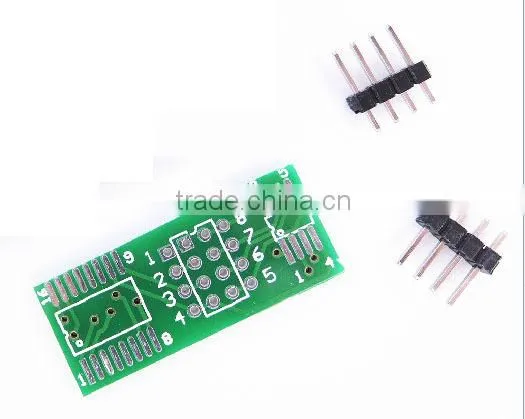

3: SOP8 SOP16 to DIP8 Adapter plate

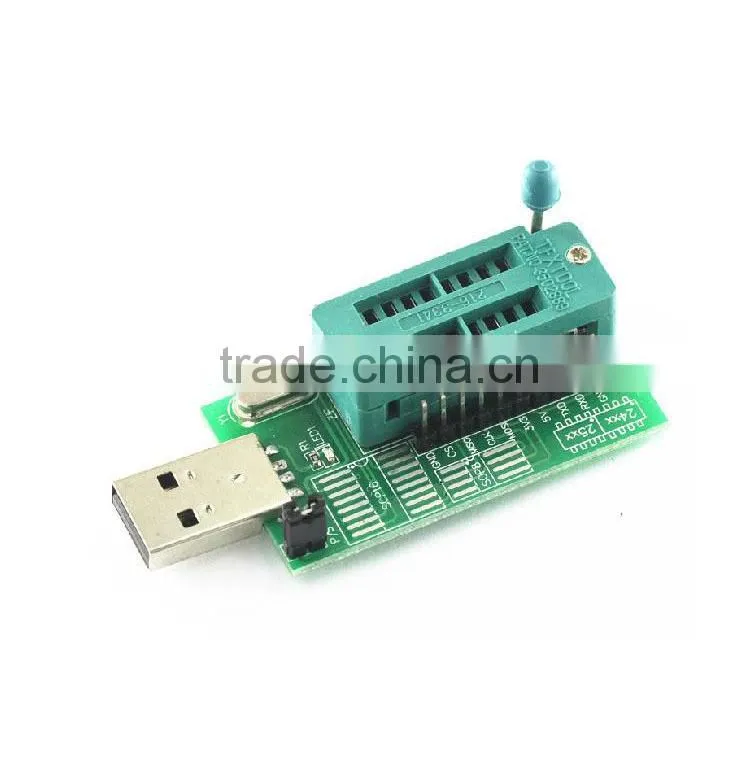

Circuit board is printed with the chip mounting pattern
Our software programmer marked on the chip and chip position are one one corresponding, unlike others boast is genuine, software chip position marking and programmer on the actual chip placement not corresponding to the position of a genuine and not genuine, you can see at a glance.
Circuit board is printed with the chip mounting pattern
Our software programmer marked on the chip and chip position are one one corresponding, unlike others boast is genuine, software chip position marking and programmer on the actual chip placement not corresponding to the position of a genuine and not genuine, you can see at a glance.
Driver installation
The installation of 1: parallel port driver (writing 24 and 25 series use FLASH drive)
The PCB board P/S end cap on the jump
Detailed installation steps to see "CH341A parallel port driver and installation instructions" folder in the -TB description
The installation of 2: serial driver (USB to serial port, serial port nine support online download models online download)
The PCB board P/S terminal jumper cap removed
Detailed installation steps to see "CH341A serial driver and installation instructions" folder in the -TB description
24 series of chip programmer (P/S end jump cap on)

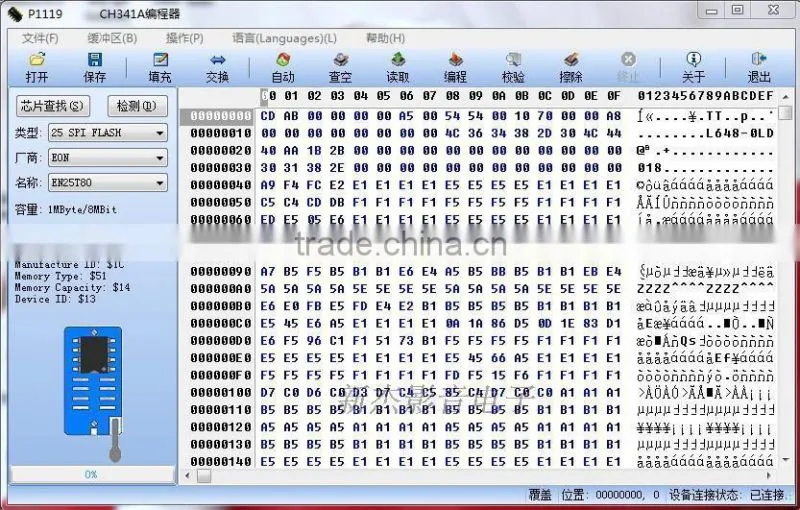

: the programmer into a computer USB port, open the "USB" in the 24-25 series programmer programmer software. Choose good chip capacity, can write. 25 series of chip programmer (P/S end jump cap on)
6 read 25X80 series 8M chip for only 9 seconds.25X80 Sassafras addition - blank check - Programming - check the completion of the 4 step is only 1 minutes and 06 seconds.
For these 8 pin serial chip, at present only a professional programmer can support, but the professional programmer is expensive, not the general repair users can have; so we developed a support for ST, WINBIND, AMIC, MXIC, SST, SPANSION, EON, PMC and other factory 8 pin serial chip USB interface programming elves, so ordinary repair the user can read and write the serial BIOS chip.
The programmer support chip list:
AMIC:
A25L05P, A25L10P, A25L20P, A25L40P, A25L80P, A25L16P
ATMEL:
AT25DF041A, AT25DF321, AT25F004, AT25F512A, AT25F2048, AT25F4096, AT25F1024A, AT25FS010, AT25FS040, AT26DF081A,
AT26DF161A, AT26DF321, AT26F004
EON:
EN25B05, EN25P05, EN25B10, EN25P10, EN25BF20, EN25P20, EN25F20, EN25B40, EN25P40, EN25F40, EN25B80, EN25P80, EN25F80, EN25T80, EN25B16, EN25P16, EN25B32, EN25P32, EN25B64, EN25P64
Excel Semiconductor Inc.
ES25P10, ES25P20, ES25P40?? ES25P80, ES25P16, ES25P32
ST:
M25P05A, M25P10A, M25P20, M25P40, M25P80, M25P16, M25P32, M25P64, M25PE10, M25PE20, M25PE40, M25PE80, M25PE16, M25PE32, M45PE10, M45PE20, M45PE40, M45PE80, M45PE16, M45PE32
MXIC:
MX25L512, MX25L1005, MX25L2005, MX25L4005, MX25L8005, MX25L1605, MX25L3205, MX25L6405
MX25L6445, MX25L6405 (SOP16)
NexFlash:
NX25P80, NX25P16, NX25P32
Chingis Technology Corporation
Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV016, Pm25LV032, Pm25LV064
Saifun Semiconductors
SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320,
WINBOND
W25P10, W25X10, W25Q10, W25P20, W25X20, W25Q20, W25P40, W25X40, W25Q40, W25P80, W25X80, W25Q80, W25P16?? W25X16, W25Q16, W25P32, W25X32, W25Q32, W25P64, W25X64, W25Q64
2, the programmer uses the MCU control, programming speed.
3, on the 8 pin serial BIOS chip can erase, can read and write. Realization of wide support chip.
-----------------------------------------------------------------------------------------------------------------
