Place of Origin Guangdong, China
Brand Name LC
Model Number LCDS65-10
Output Power Other
Output Type Single
Size 22(+usb33)*24*8mm
Input Voltage 7-16V
Output Voltage 4.8-5.3V
Type DC/DC Converters
Output Current 600-800MA

Specifications

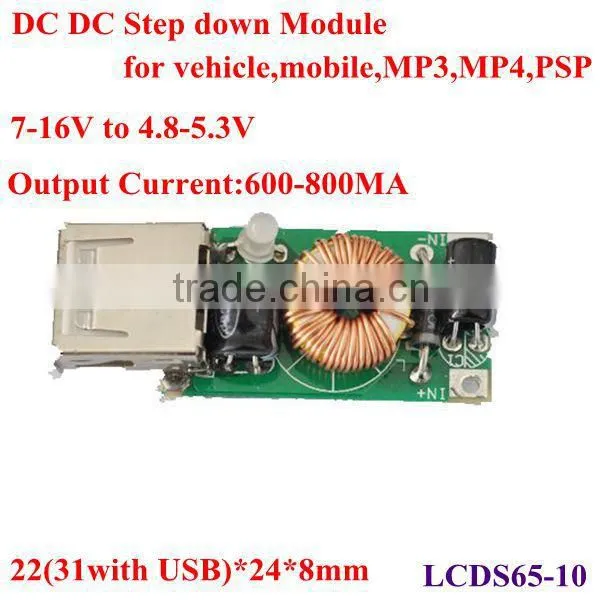

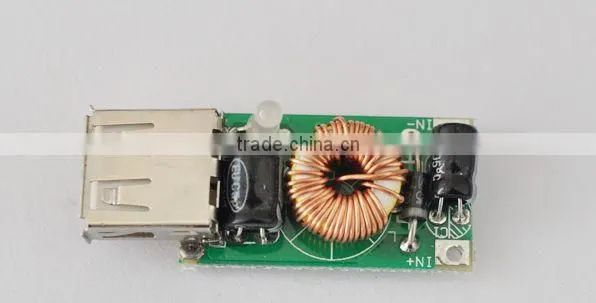

New Arrival DC DC Step Up Module USB output 7-16V to 4.8-5.3V 600-800MA with short circuit protection

We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!

-----------------------------------------------------------------------------------------------------------------PRODUCT PICTURE



Manufactures dc/dc converter boost step down module 7v/8v/9v/10v/11v/12V..16v input 800mA max 5.3Vouput max

Manufactures dc/dc converter boost step down module 7v/8v/9v/10v/11v/12V..16v input 800mA max 5.3Vouput maxManufactures dc/dc converter boost step down module 7v/8v/9v/10v/11v/12V..16v input 800mA max 5.3Vouput max



PRODUCT FEATURES



1, the module has a constant flow pressure limiting function, so in addition to can be used as the adjustable step-down power, also can be used as a charging module to:



Characteristic; USB output resistance identification with IPhone and other apple products, need not special charging line, general cable can be charged.



2, this module with the function of charging indicator, input more than 12 v charging the red light bright, light green light, very convenient buyers will know the status of the charge.



Super small volume, long 22 (including USB 31) wide x 24 x 8 mm high



Input mode: IN + input level is, the IN - negative input



Output: the standard USB



The input voltage: 7-16 v



Output voltage: 4.8-5.3 V (racing around 5.3 V)



Output current: 600-800 ma



Short circuit protection, current limiting, since the recovery



Static power only about 6 ma.





4, with short circuit protection, output even if short circuit will not be afraid, the circuit will be automatic protection! Current limit protection.



Static power only about 6 ma.

Note:



Method of use:











1) this module input can only need to be connected to the car power supply point a cigarette holder, the green light; Output connected to mobile phone, that is, to mobile phones, MP3, MP4, PDA, PSP, car guide line instrument such as digital products charging, at this time to red light.
