Specifications
Used for education,laboratory,medical2 Magnification : 40X-1000X
3 Warranty:3 years
4 OEM service
5 CE certification

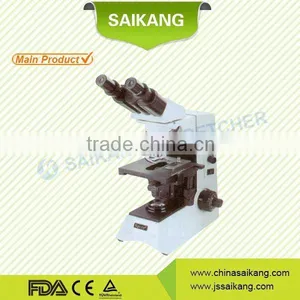

High Resolution high magnification Educational Lab Medical Compound Biologica Microscope
1. viewing head:Seidentopf Binocular viewing head Inclined at 30°,360°totatable,interpupillary55-75mm
2. eyepiece:wide field eyepiece WF10X/18 wide field eyepiece P16/11
3. objective:achromatic objective 4X,10X,40X,100X
4. nosepiece:backward quadruple nosepiece
5. stage:double layer mechanical stage 140*140mm/75*50mm
6. focusing system:coazial coarse and fine adjustment,fine division 0.002mm,coatse stroke 37.7mm per rotation,fine stroke 0.2mm per rotation,moving range 24mm
7. condenser:abbe NA 1.25 with iris diaphragm & filter,rack & pinin adjustment
8. illumination:E-LED illumination,brightness adjustable
9. filter:green filter
10. optional:
a.viewing head:monocular head,inclined at 30°,360°totatable Seidentopf trinocular viewing head,inclined at 30
°,360°totatable,interpupillary55-75mm
b.objective:achromatic objective 20X,60X plan achromatic objective 4X,10X,20X,40X,60X,100X
c.nosepiece:backward quintuple nosepiece
d.illumination:halogen lamp 6V/20W,brightness
adjustable kohler illumination
attachment
attachment:1X C mount 0.5X C mount
g.filter:blue filter
h.polarization set:simple polarization set
i.phase contrast kit:simple phase contrast kit sliding phase contrast kit turret phase contrast kit
j.dark field attachment:dark field condenser(dry)NA0.7-0.9 dark field condenser(oil)NA1.25-1.36
k.fluorescent attachment:YX-2 epi-fluorescent attachment FL-LED epi-fluorescent attachment
Packaged in Export Carton
