Specifications

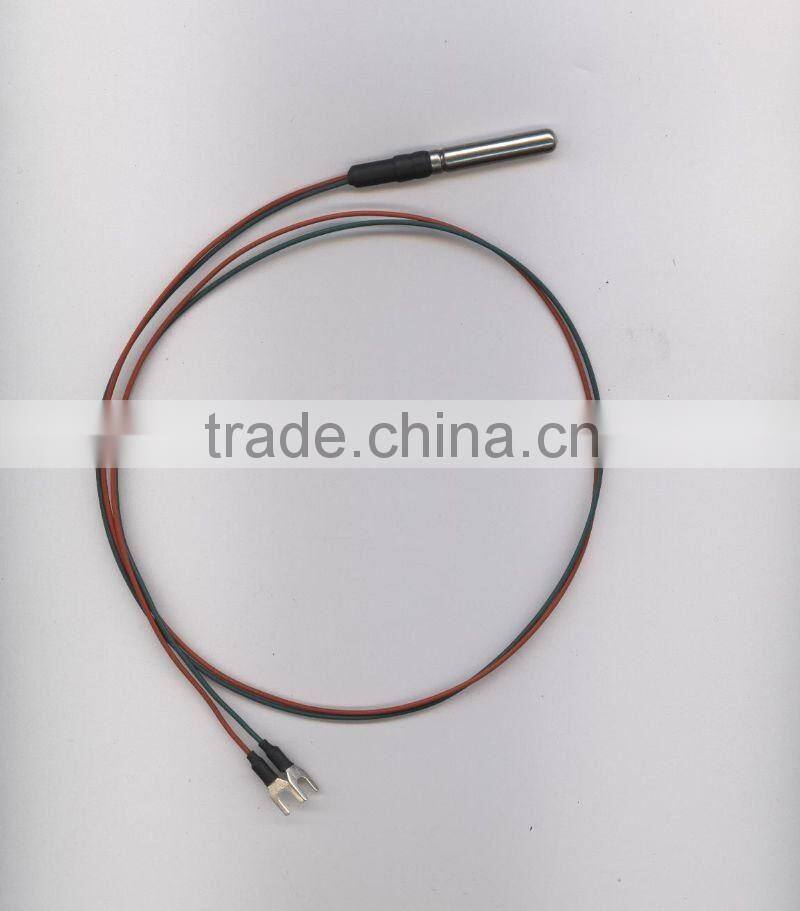

*pt100 temperature sensor*Range:-50-600 C
*Output:analouge or resistance output
*Accuracy:+/-0.5%,0.25%F.S option
*EMI/RFI
Shenzhen leadingchip company
Temperature sensor series
Application:
- Medical equipment
- Water tank,oil tank
- Refrigerator
- Constant Temperature Equipment
General description:

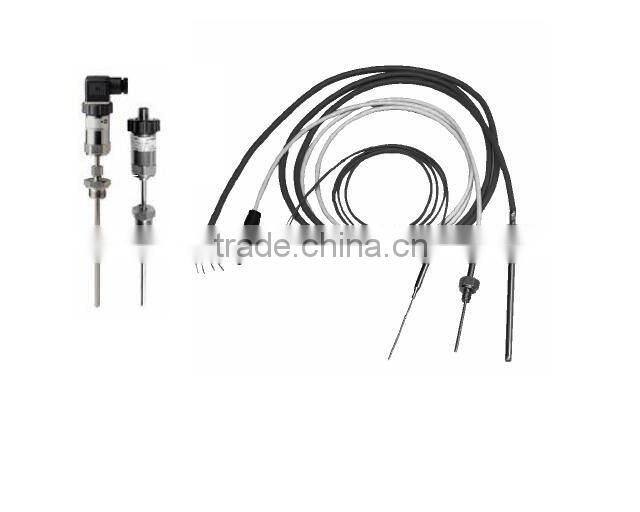

JT series is a temperature transmitter consists temperature header, module and housing.The temperature
header is class A type of PT100 or PT1000.A signal conditioned output is proportioned to applied temperature which is
amplified, compensated and trimmed by a build-in digital ASIC. Heat conductive silicon grease is filled inside the header to
ensure the quick conductive of heat and acoid depress for the PT resistor.
This series, together with control indtrumentation or PLC to form an automation control system, has been widely
applied in temperature process control in industries of Metallurgy, Power, Petrifaction, Food and Medicine.
Features:
- Stainless steel construction, good vibration and stability
- Good linearity and changeability
- EMI/RFI
- Compact size,flexible connection and installation position
Specifications at 25 C degree:
| Temperature range | -50-60°c |
Total accuracy |
±0.2%F.S,0.5%F.S |
Media compatibility |
304ss(316ss please contact factory) |
Stability |
<0.25%/yr(typical) |
Supply Voltage |
5V or 10-30 V DC |
Ouput&Input |
0.5-4.5V(ratiometric),4-20mA,1-5V,resistance |
Or Ohm |
|
Temperature coefficient |
≤±0.005%/V |
Error on supply voltage |
≤±0.005%/V |
