DC DC Buck Boost Converter to Convert Voltage up or Down Accept Customization

DC DC Buck Boost Converter to Convert Voltage up or Down Accept Customization thumbnail-1
DC DC Buck Boost Converter to Convert Voltage up or Down Accept Customization photo-1
US$ 0.1 - 1 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LC
Model Number:
XL6009
Contact Supplier Request Quote Chat Now
Shenzhen Chip Leader Electronic And Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen post
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LC
Model Number XL6009
Output Type Single
Size 48mm * 25mm * 14mm
Input Voltage 3.8V~32V
Output Voltage 1.25V~35V
Type DC/DC Converters
Output Current 4A max

Specifications

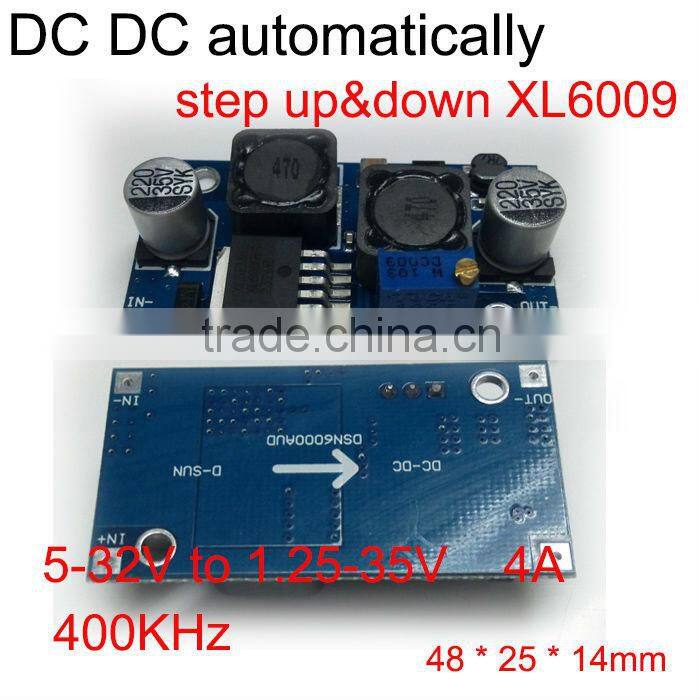

DC DC Buck Boost Converter to convert voltage up or down accept customization

We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board



  DC DC Buck Boost Converter to convert voltage up or down accept customization DC DC Buck Boost Converter to convert voltage up or down accept customization

DC DC Buck Boost Converter to convert voltage up or down accept customization

Auto startup voltage will be pulled down to 7V or less, motor voltage at high speeds of up to 15V or higher. To work in the 12V appliances are hard to work, the automatic lifting pressure module solves this problem, regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized in 12V.

1. wide input voltage of 5V~32V;

2. wide output voltage 1.25V~35V (with automatic lifting pressure, scope of work, any input voltage can be regulated at any voltage output);

3. The built-in 4A MOSFET switch, the efficiency of up to 94%; (LM2577 current 3A only)

4.  high switching frequency 400KHz, the ripple is smaller, smaller. (LM2577 50KHz only)



Field of application:

Application of automobile power, solar photovoltaic power generation, wind power, voltage instability.



Product features:



Model DSN6000AUD Automatic step-up step-down module
Type Non isolated step-up (BOOST)
mode of rectification Non synchronous rectifier
input range 3.8V~32V
output range 1.25V~35V
input current 3A (max), 18mA (5V input, 8V output, no less than 18mA. The higher the voltage, the no-load current is bigger.)
conversion efficiency <94%
switching frequency 400KHz
Output ripple 50mV(the higher the voltage, the current is greater, the greater the ripple)
load regulation ±0.5%
voltage regulation ±0.5%
working temperature -40°C~ +85°C
size 48mm * 25mm * 14mm

DC DC Buck Boost Converter to convert voltage up or down accept customization



Shipping terms:



1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST



2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.




Our Services



Payment terms



1.We accept PAYPAL, TT, WESTERN UNION, ESCROW



2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0



Contact us

SKYPE:aimeehe2011  Cellphone:13760273376

 DC DC Buck Boost Converter to convert voltage up or down accept customization
