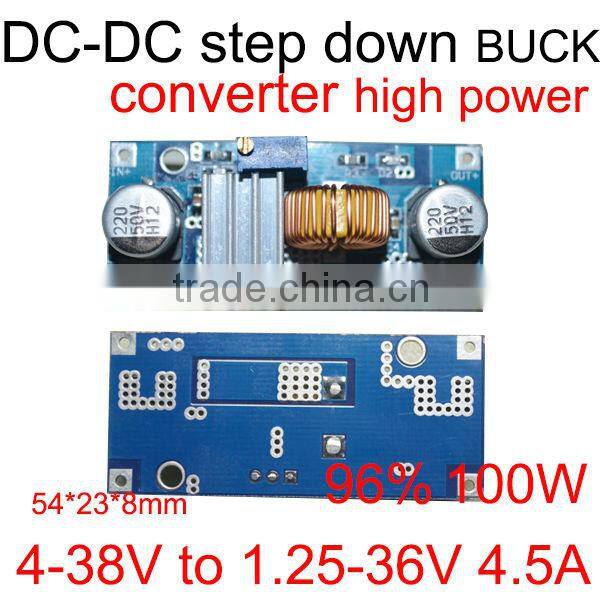

Dc-dc Step Down Adjustable Power Supply Module 36v to 24v / 12v 3A Buck Converter Voltage Regulator for LED Screen , Cars ,etc

We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!

-----------------------------------------------------------------------------------------------------------------

PRODUCT FEATURES

Module highlights: 5A high power efficiency and low grain zone power indicator with fins!!!

Module performance and characteristics:

The modular nature: non isolated buck module (BUCK)

Input voltage: 4-38V (input please try not to exceed 38V)

Output voltage: 1.25-36V adjustable

Output current: 0-5A, recommended for use in 4.5A.

Output power: it is recommended to use in the 75W, more than 50W Please add heat sink.

Working temperature: -40~+85 degrees

Operating frequency: 180KHz

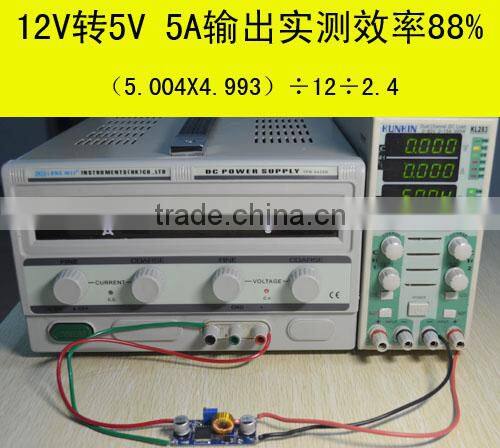

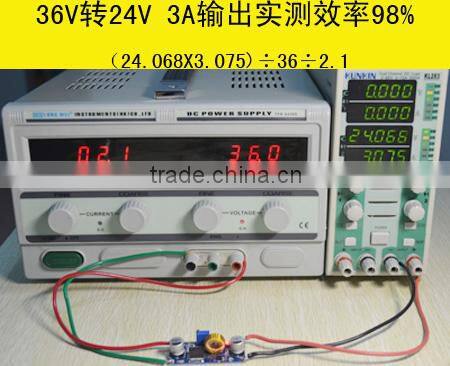

96%: the highest conversion efficiency (efficiency associated with the input, the output voltage, current, pressure difference)

Load regulation rate: S (I) ≤ 0.8%

Voltage regulation rate: S (U) ≤ 0.8%

Power indicator

Short circuit protection: (current limiting 8A)

Over temperature protection: (automatic shutdown output ultra temperature)

Input reverse connection protection: No, (such as the need to please in the input string into the high current diode)

Installation: 2 3mm screws

Connection: welding, V-IN input, V-OUT output

Module size: length 54mm width 23mm high 18mm

<

The scope of application:

This module can step-down applications is higher than the output voltage when the input voltage, such as battery, power transformer, DIY adjustable regulated power supply, 24V vehicle notebook power supply, industrial equipment, buck, 12V 3.3V, 12V 5V, 24V 5V, 24V 12V, 36V 24V etc..
