Help Centerdc dc Converter 48v to 12v dc Step Down Power Supply Module
Related Products
-
dc Voltage Regulator Pcb Circuit 24 Volt 12 Volt Step Down Converter 24v to 12v 3AmaxUS$ 0.1 - 1MOQ: 5 Pieces -
Dc-dc Voltage Converter 24v to 5v Step Down Power Supply Module 3Amax Pcb BoardUS$ 0.1 - 1MOQ: 5 Pieces
-
dc Step Down Transformer 14V 15V 16V 18V 19V 28V 17V 30V 32V 40V to 6v Buck Converter Voltage Regulator 10A 60WUS$ 0.1 - 1MOQ: 5 Pieces
-
dc dc Step up Converter 15v 18v 12v to 24v 3A Voltage Regulator / Transformer 72max Power Module for CarsUS$ 0.1 - 1MOQ: 5 Pieces
-
GPS , Cigarette Lighter Iphone Car Charger Dual 2 USB PortUS$ 0.1 - 1MOQ: 5 Pieces
We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!
dc-dc buck converter 4.5-60v to 3-35v 2A 3Amax 15Wmax

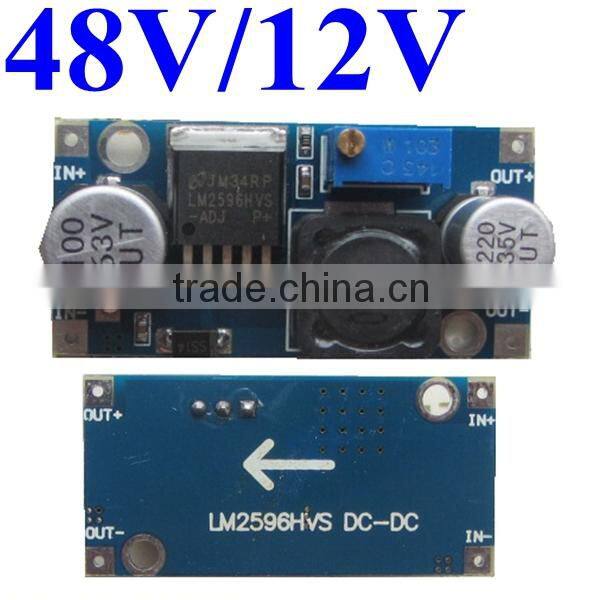

-----------------------------------------------------------------------------------------------------------------PRODUCT PICTURE
PRODUCT FEATURES
1, the size of the long 40* wide 21.5* high 13.5mm (including potentiometer).
Input mode: IN+ input positive, IN- input negative
Output mode: OUT+ output positive, OUT- output negative
1, input voltage: 4.5-60V,
Regulation: first correct answer power input (4.5-60V between) and then watch monitors the output voltage and regulating potentiometer (general clockwise turn boost, inverse turn Buck),
Output voltage: (3-35V) can be adjusted continuously (no load adjustment is recommended).
The most low pressure difference: 1.5V
Output current: rated current 2A, maximum 3A
Output power: Max 15W
Conversion efficiency: the highest 92% (the higher the output voltage, the higher the efficiency)
Static power consumption is only about 6mA.
Connection mode: welding, add pin can be directly welded on PCB.
Working temperature: industrial grade (-40, +85)
Load adjustment rate: 1%
Voltage adjustment rate: 0.5% (in order to achieve the no-load output voltage will be higher, but as long as there is 1MA load, the output voltage will be normal, do not affect the function, please be assured that use.
Short circuit protection: limited current, over heat protection, self recovery.
SHIPPING TERMS
1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST
2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.
------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS
1.We accept PAYPAL, TT, WESTERN UNION, ESCROW
2.Commission:
*Paypal: total sum *0.041
*Escrow: total sum *0.05
*TT: $28-$45(according to amount)
*Western union: $0
GUARANTEE PERIOD
3 Months, if the quality have any problems, We have a good after sale
service team will slove the quality problems for you.
1.If you test the products and it doesn't work, pls keep it and send it to us in
1 month, we will send the good one to you with the following order.
2.If the product is already used by you, then no warranty.
3.If the product is broken by man-made, then no warranty.
